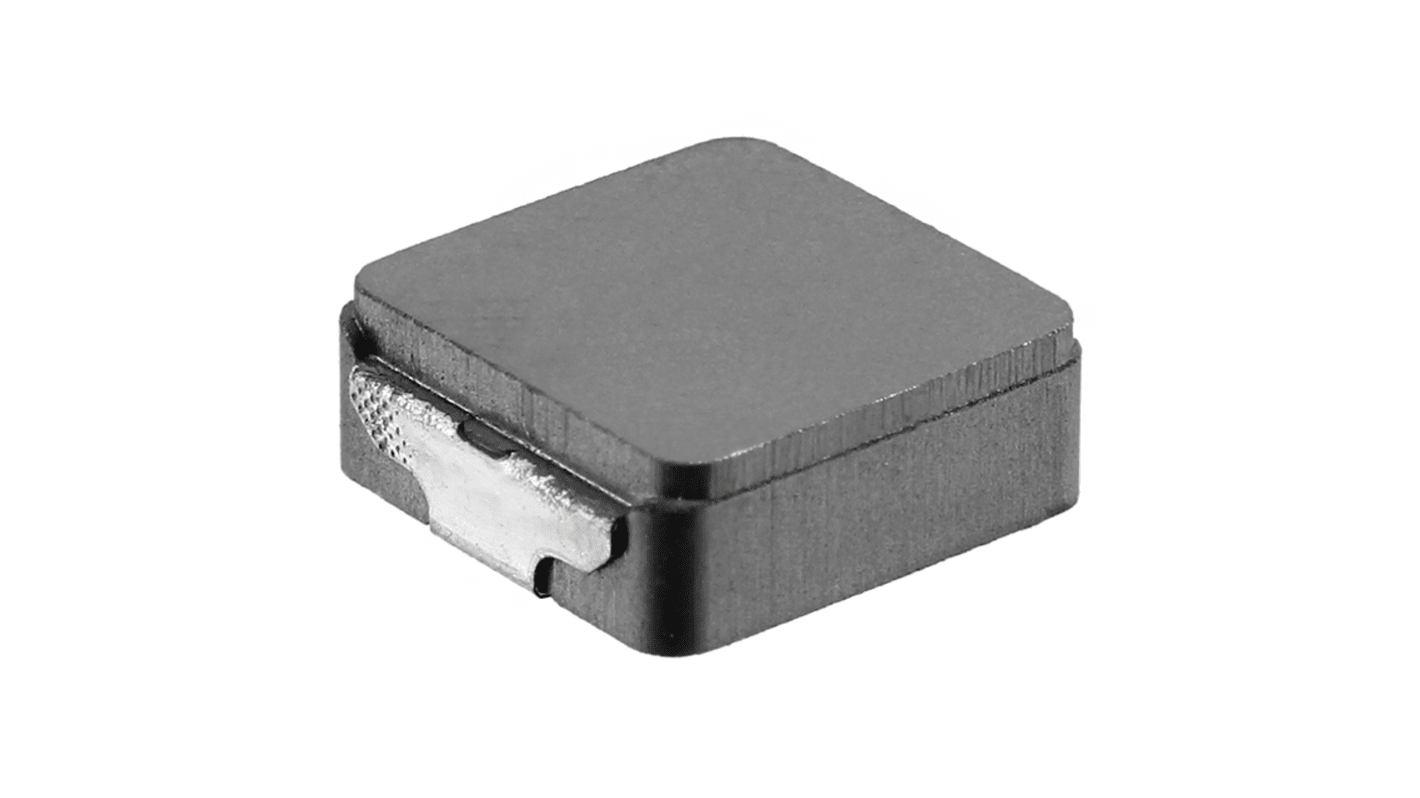

Vishay, IHLP, EK Shielded Wirewound Surface Mount Inductor with a Metal Composite Core, 4.7 μH ±20 % 9.5 A Idc
- RS Stock No.:
- 565-049
- Mfr. Part No.:
- IHLP4040DZEK4R7M01
- Brand:
- Vishay
Subtotal (1 reel of 1000 units)*
£493.00
(exc. VAT)
£592.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £0.493 | £493.00 |
*price indicative
- RS Stock No.:
- 565-049
- Mfr. Part No.:
- IHLP4040DZEK4R7M01
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Inductance | 4.7 μH | |
| Product Type | Wirewound Surface Mount Inductor | |
| Maximum DC Current | 9.5A | |
| Package/Case | EK | |
| Length | 0.43in | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Maximum DC Resistance | 16.50mΩ | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -55°C | |
| Inductance Tolerance | ±20 % | |
| Series | IHLP | |
| Maximum Operating Temperature | 125°C | |
| Termination Style | EK | |
| Depth | 0.16in | |
| Height | 4mm | |
| Core Material | Metal Composite | |
| Diameter | 0.16 in | |
| Standards/Approvals | RoHS | |
| Inductor Construction | Shielded | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Inductance 4.7 μH | ||
Product Type Wirewound Surface Mount Inductor | ||
Maximum DC Current 9.5A | ||
Package/Case EK | ||
Length 0.43in | ||
Automotive Standard No | ||
Shielding Yes | ||
Maximum DC Resistance 16.50mΩ | ||
Pin Count 2 | ||
Minimum Operating Temperature -55°C | ||
Inductance Tolerance ±20 % | ||
Series IHLP | ||
Maximum Operating Temperature 125°C | ||
Termination Style EK | ||
Depth 0.16in | ||
Height 4mm | ||
Core Material Metal Composite | ||
Diameter 0.16 in | ||
Standards/Approvals RoHS | ||
Inductor Construction Shielded | ||
The Vishay Power Inductor with shielded construction offers efficient EMI suppression and reliable performance. Supports frequency ranges up to 5.0 MHz, making it Ideal for high-speed DC/DC converters. Features the lowest DCR per μH in its package size, ensuring high efficiency and minimal power loss in Compact electronic designs.
Handles high transient current spikes without saturation
Ultra low buzz noise, due to composite construction
