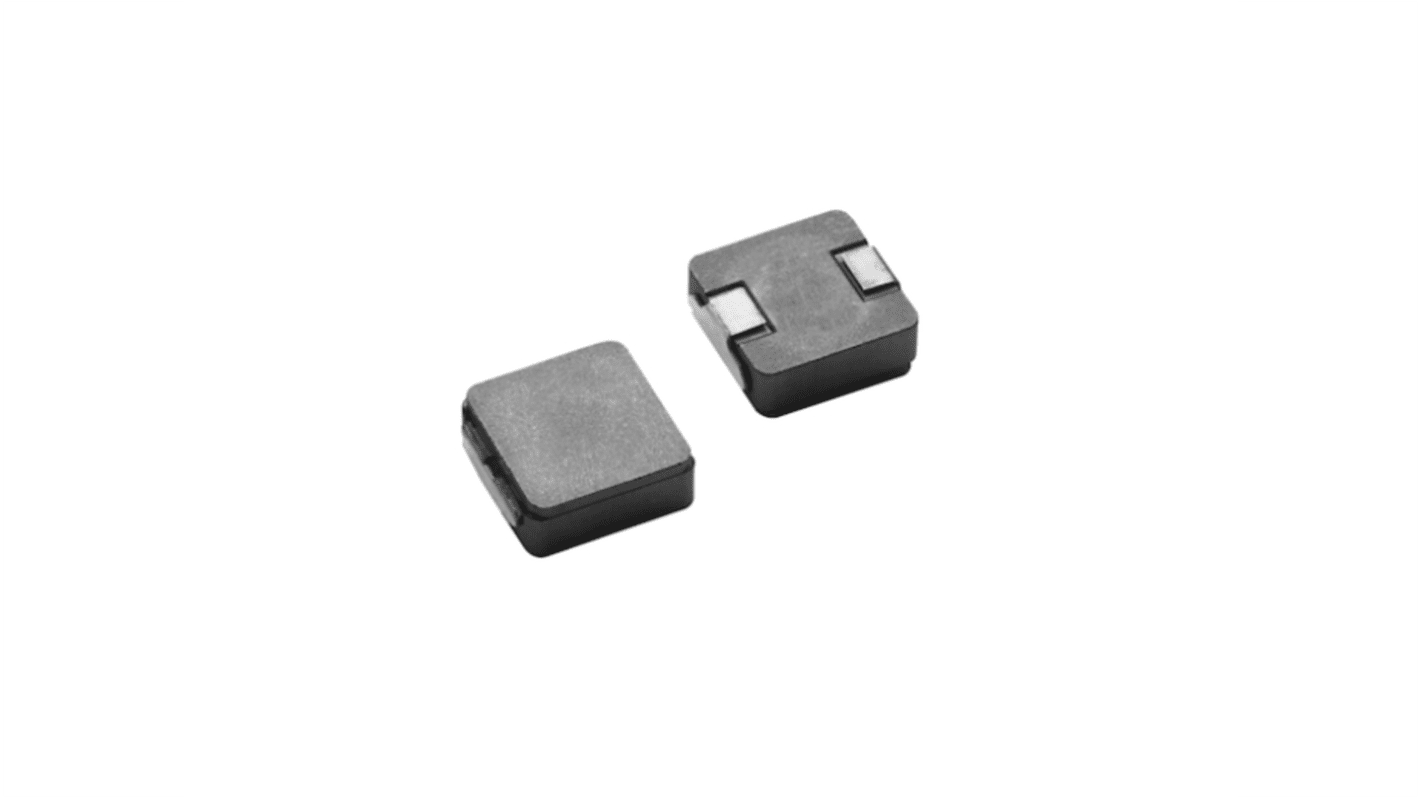

Vishay, IHLP, EK Shielded Wirewound Surface Mount Inductor with a Metal Composite Core, 1 μH ±20 % 12 A Idc
- RS Stock No.:
- 565-007
- Mfr. Part No.:
- IHLP2525CZEK1R0M8A
- Brand:
- Vishay
Subtotal (1 reel of 2500 units)*
£1,120.00
(exc. VAT)
£1,345.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £0.448 | £1,120.00 |
*price indicative
- RS Stock No.:
- 565-007
- Mfr. Part No.:
- IHLP2525CZEK1R0M8A
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Inductance | 1 μH | |
| Product Type | Wirewound Surface Mount Inductor | |
| Maximum DC Current | 12A | |
| Package/Case | EK | |
| Packaging | Tape & Reel | |
| Length | 0.27in | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -55°C | |
| Maximum DC Resistance | 8.45mΩ | |
| Series | IHLP | |
| Maximum Operating Temperature | 125°C | |
| Inductance Tolerance | ±20 % | |
| Depth | 0.12in | |
| Height | 3mm | |
| Termination Style | EK | |
| Standards/Approvals | RoHS | |
| Diameter | 0.12 in | |
| Core Material | Metal Composite | |
| Maximum Self Resonant Frequency | 59.1MHz | |
| Inductor Construction | Shielded | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Inductance 1 μH | ||
Product Type Wirewound Surface Mount Inductor | ||
Maximum DC Current 12A | ||
Package/Case EK | ||
Packaging Tape & Reel | ||
Length 0.27in | ||
Automotive Standard No | ||
Shielding Yes | ||
Pin Count 2 | ||
Minimum Operating Temperature -55°C | ||
Maximum DC Resistance 8.45mΩ | ||
Series IHLP | ||
Maximum Operating Temperature 125°C | ||
Inductance Tolerance ±20 % | ||
Depth 0.12in | ||
Height 3mm | ||
Termination Style EK | ||
Standards/Approvals RoHS | ||
Diameter 0.12 in | ||
Core Material Metal Composite | ||
Maximum Self Resonant Frequency 59.1MHz | ||
Inductor Construction Shielded | ||
The Vishay Automotive inductors are designed for high-temperature environments up to 180 °C, ensuring reliability in harsh conditions. Shielded construction minimizes EMI, making them Ideal for sensitive automotive electronics. They offer excellent DC/DC energy storage in the 1 MHz to 2 MHz range and can handle high transient current spikes up to 10 times their rated current, depending on duration.
Ultra low buzz noise, due to composite construction
AEC Q200 qualified
RoHS Compliant
Halogen free
