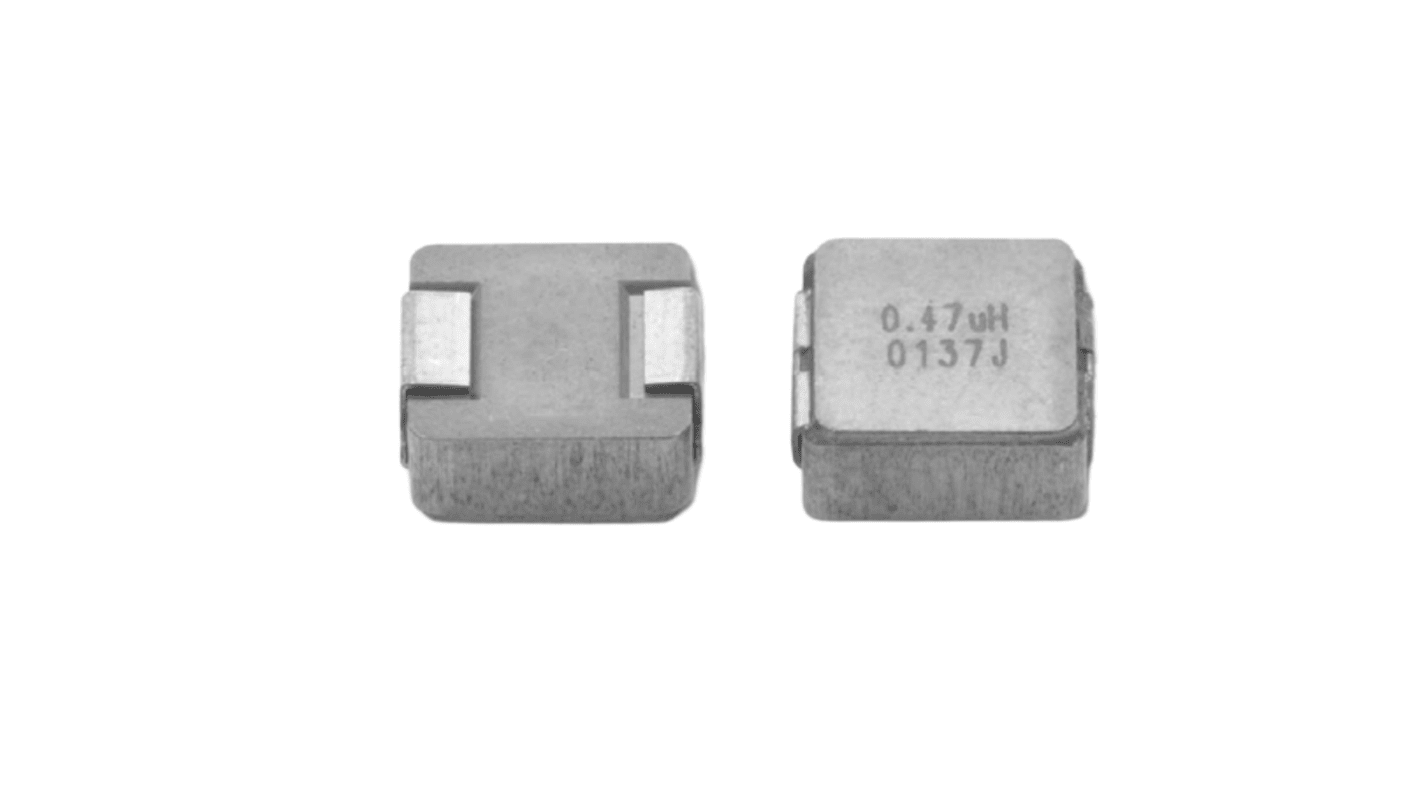

Vishay, IHLP, EK Shielded Wirewound Surface Mount Inductor with a Metal Composite Core, 100 pH ±20 % 23 A Idc
- RS Stock No.:
- 564-993
- Mfr. Part No.:
- IHLP2020CZEKR10M01
- Brand:
- Vishay
Subtotal (1 reel of 2500 units)*
£782.50
(exc. VAT)
£940.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £0.313 | £782.50 |
*price indicative
- RS Stock No.:
- 564-993
- Mfr. Part No.:
- IHLP2020CZEKR10M01
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Inductance | 100 pH | |
| Product Type | Wirewound Surface Mount Inductor | |
| Maximum DC Current | 23A | |
| Package/Case | EK | |
| Length | 0.22in | |
| Packaging | Tape & Reel | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Minimum Operating Temperature | -55°C | |
| Maximum DC Resistance | 3.16mΩ | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 125°C | |
| Inductance Tolerance | ±20 % | |
| Series | IHLP | |
| Termination Style | EK | |
| Core Material | Metal Composite | |
| Depth | 0.12in | |
| Height | 3mm | |
| Standards/Approvals | RoHS | |
| Diameter | 0.12 in | |
| Maximum Self Resonant Frequency | 255MHz | |
| Inductor Construction | Shielded | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Inductance 100 pH | ||
Product Type Wirewound Surface Mount Inductor | ||
Maximum DC Current 23A | ||
Package/Case EK | ||
Length 0.22in | ||
Packaging Tape & Reel | ||
Automotive Standard No | ||
Shielding Yes | ||
Minimum Operating Temperature -55°C | ||
Maximum DC Resistance 3.16mΩ | ||
Pin Count 2 | ||
Maximum Operating Temperature 125°C | ||
Inductance Tolerance ±20 % | ||
Series IHLP | ||
Termination Style EK | ||
Core Material Metal Composite | ||
Depth 0.12in | ||
Height 3mm | ||
Standards/Approvals RoHS | ||
Diameter 0.12 in | ||
Maximum Self Resonant Frequency 255MHz | ||
Inductor Construction Shielded | ||
The Vishay Power Inductor with shielded construction offers reliable performance in high-frequency applications up to 5.0 MHz. It features the lowest DCR per μH in its package size, ensuring minimal power loss. Designed to handle high transient current spikes without saturation. Ideal for Compact and efficient power conversion systems.
Ultra low buzz noise, due to composite construction
Excellent temperature stability for inductance and saturation
RoHS Compliant
Halogen free
