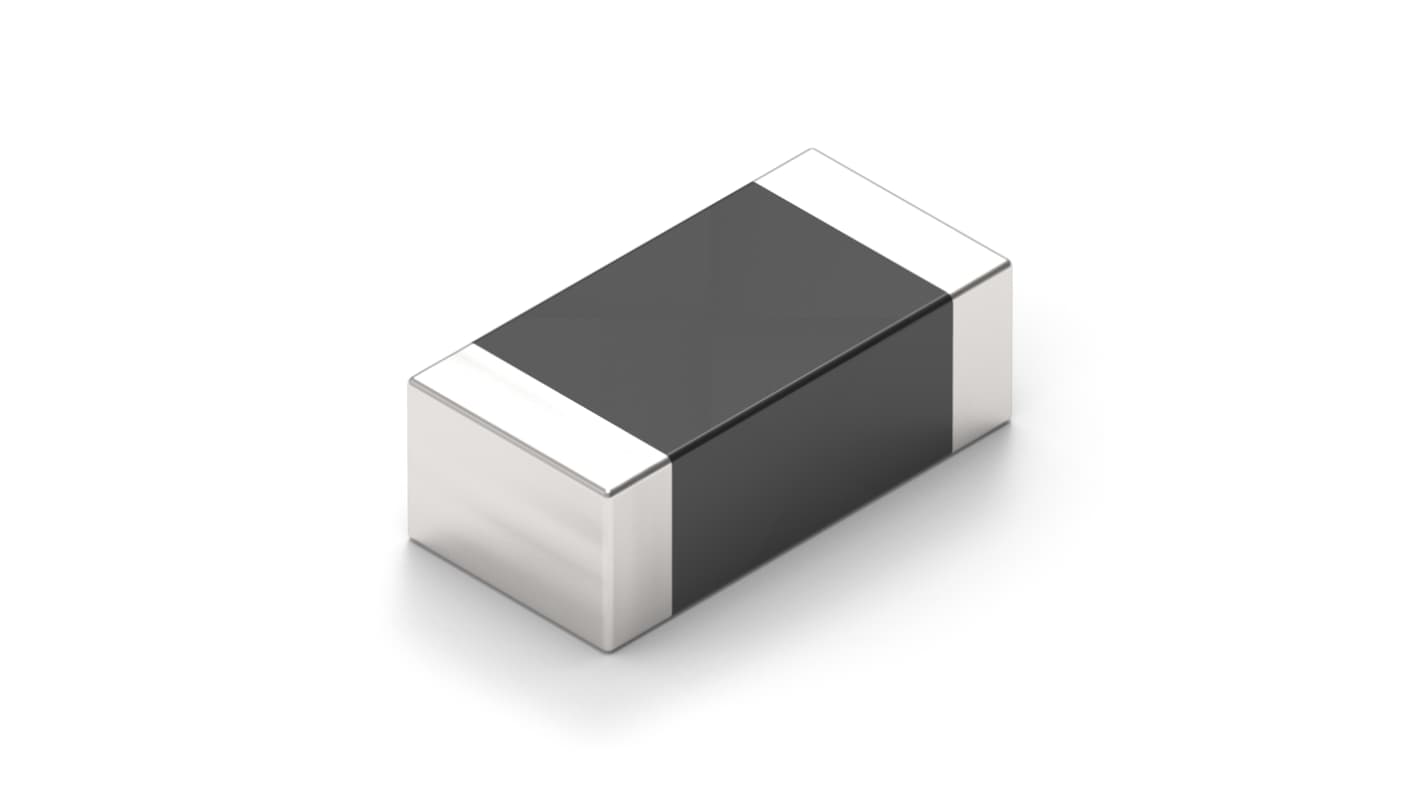

Wurth Elektronik, WEMI Surface Mount Inductor 33 μH 25 mA Idc
- RS Stock No.:
- 548-626
- Mfr. Part No.:
- 74479184
- Brand:
- Wurth Elektronik
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 20 units)*
£5.70
(exc. VAT)
£6.84
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 480 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 20 - 180 | £0.285 | £5.70 |
| 200 - 980 | £0.231 | £4.62 |
| 1000 - 1980 | £0.177 | £3.54 |
| 2000 + | £0.164 | £3.28 |
*price indicative
- RS Stock No.:
- 548-626
- Mfr. Part No.:
- 74479184
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 33μH | |
| Product Type | Surface Mount Inductor | |
| Maximum DC Current | 25mA | |
| Packaging | Tape & Reel | |
| Length | 3.2mm | |
| Automotive Standard | No | |
| Minimum Operating Temperature | -55°C | |
| Maximum DC Resistance | 0.9Ω | |
| Series | WEMI | |
| Maximum Operating Temperature | 125°C | |
| Diameter | 1.3mm | |
| Standards/Approvals | RoHS, REACH, Halogen-Free | |
| Height | 1.3mm | |
| Termination Style | Package | |
| Depth | 1.3mm | |
| Inductor Construction | Wirewound | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 33μH | ||
Product Type Surface Mount Inductor | ||
Maximum DC Current 25mA | ||
Packaging Tape & Reel | ||
Length 3.2mm | ||
Automotive Standard No | ||
Minimum Operating Temperature -55°C | ||
Maximum DC Resistance 0.9Ω | ||
Series WEMI | ||
Maximum Operating Temperature 125°C | ||
Diameter 1.3mm | ||
Standards/Approvals RoHS, REACH, Halogen-Free | ||
Height 1.3mm | ||
Termination Style Package | ||
Depth 1.3mm | ||
Inductor Construction Wirewound | ||
- COO (Country of Origin):
- TW
The Wurth Elektronik SMT Multilayer Inductor SMT multilayer inductor is a compact, high frequency passive component constructed by stacking multiple layers of conductive and insulating materials. This design minimizes PCB footprint, making it ideal for space constrained applications. While it offers high inductance values and efficient energy storage, its compact size may limit current handling capabilities and introduce parasitic capacitance, potentially reducing the quality factor at very high frequencies.
No cross coupling because of closed magnetic circuits
No crosstalk
