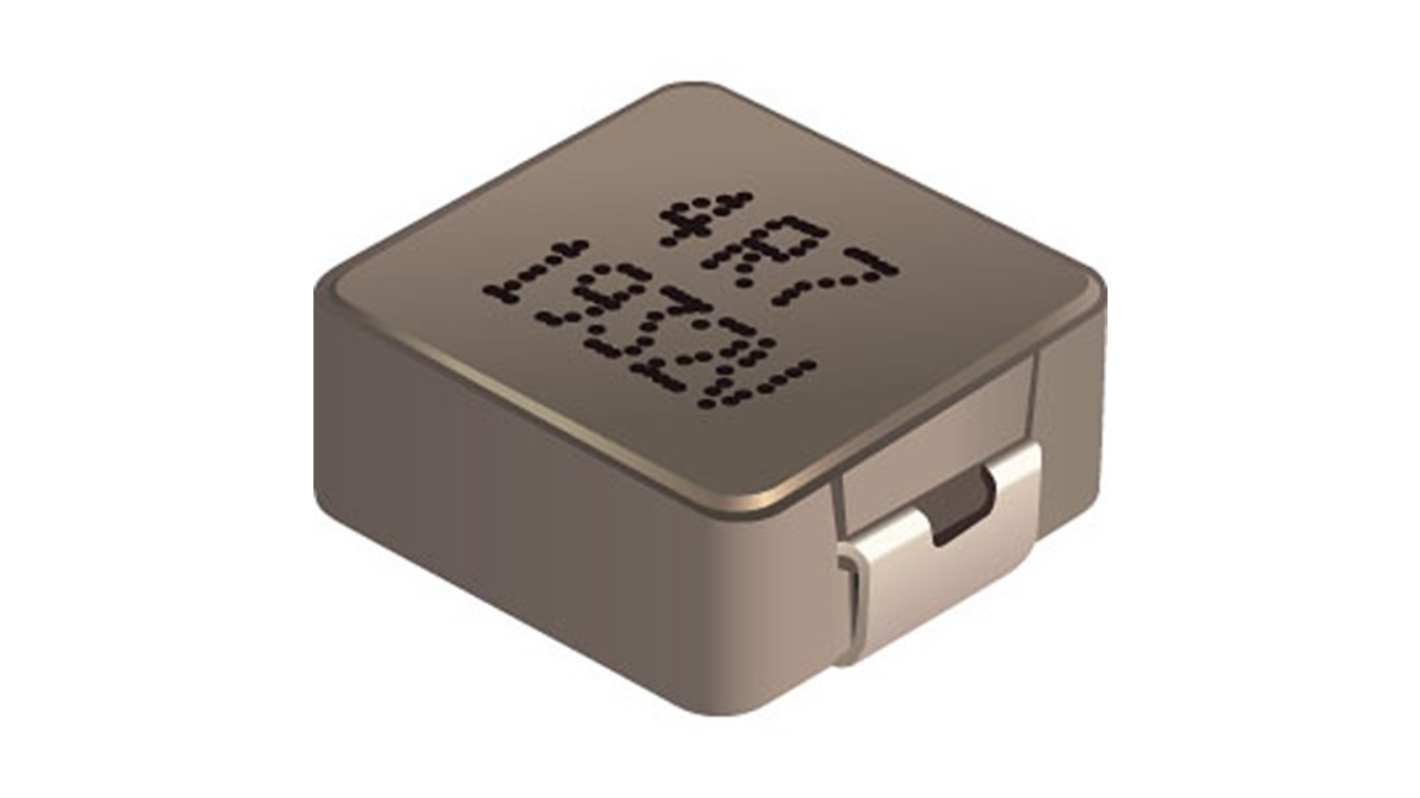

Bourns, SRP6030VA, 6030 Shielded Power Inductor with a Metal Alloy Powder Core, 22 μH ±20% Shielded 3.4A Idc Q:10
- RS Stock No.:
- 466-278
- Mfr. Part No.:
- SRP6030VA-220M
- Brand:
- Bourns
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 466-278
- Mfr. Part No.:
- SRP6030VA-220M
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Bourns | |
Inductance | 22 μH | |
Maximum DC Current | 3.4A | |
Package/Case | 6030 | |
Length | 7.1mm | |
Automotive Standard | AEC-Q200 | |
Depth | 6.6mm | |
Shielded | Yes | |
Tolerance | ±20% | |
Series | SRP6030VA | |
Core Material | Metal Alloy Powder | |
Inductor Construction | Shielded | |
Minimum Quality Factor | 10 | |
Select all | ||
---|---|---|
Brand Bourns | ||
Inductance 22 μH | ||
Maximum DC Current 3.4A | ||
Package/Case 6030 | ||
Length 7.1mm | ||
Automotive Standard AEC-Q200 | ||
Depth 6.6mm | ||
Shielded Yes | ||
Tolerance ±20% | ||
Series SRP6030VA | ||
Core Material Metal Alloy Powder | ||
Inductor Construction Shielded | ||
Minimum Quality Factor 10 | ||
- COO (Country of Origin):
- CN
The Bourns Shielded power inductors feature a shielded construction to minimize interference and a metal alloy powder core for high saturation current handling. They produce low buzz noise and are designed to operate at high temperatures, up to 180°C, making them ideal for demanding environments and high performance power applications.
RoHS compliant
AEC Q200 compliant
AEC Q200 compliant
