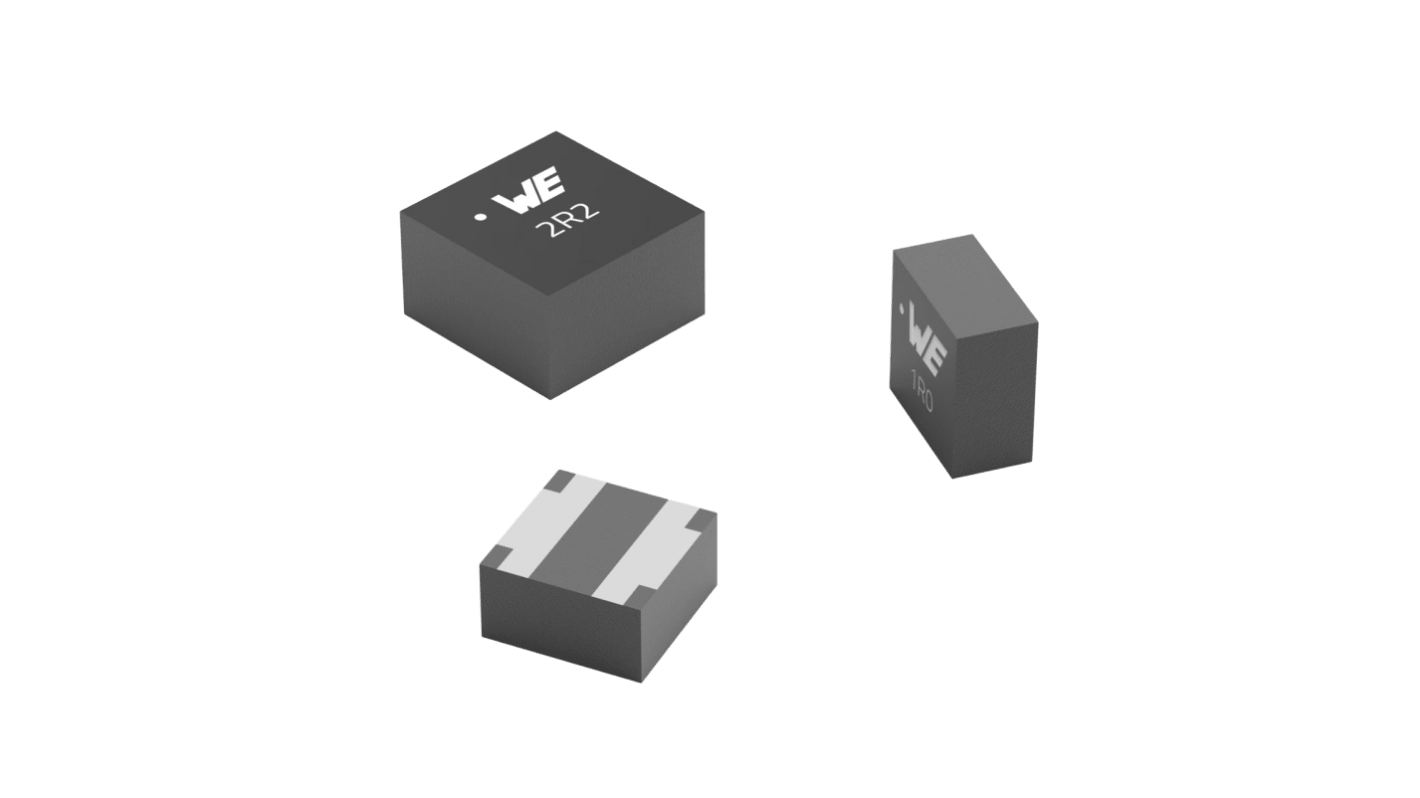

Wurth Elektronik, 744384, 5030 Shielded Surface Mount Inductor with a Magnetic Iron Alloy Core, 1.2 μH Shielded ±20 %
- RS Stock No.:
- 427-248
- Mfr. Part No.:
- 7443845030012
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 tape of 5 units)*
£9.88
(exc. VAT)
£11.855
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 695 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £1.976 | £9.88 |
| 50 - 95 | £1.878 | £9.39 |
| 100 - 495 | £1.74 | £8.70 |
| 500 + | £1.602 | £8.01 |
*price indicative
- RS Stock No.:
- 427-248
- Mfr. Part No.:
- 7443845030012
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 1.2μH | |
| Product Type | Surface Mount Inductor | |
| Maximum DC Current | 17.2A | |
| Sub Type | SMT Power Inductor | |
| Package/Case | 5030 | |
| Packaging | Tape & Reel | |
| Length | 5.4mm | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Maximum DC Resistance | 5.2mΩ | |
| Minimum Operating Temperature | -40°C | |
| Inductance Tolerance | ±20 % | |
| Maximum Operating Temperature | 125°C | |
| Series | 744384 | |
| Standards/Approvals | 863, Halogen Free IEC 61249-2-21, EU&2015, REACH EC1907, 2006, RoHS 2011, Halogen Free JEDEC JS709B | |
| Core Material | Magnetic Iron Alloy | |
| Height | 3.1mm | |
| Depth | 3.1mm | |
| Diameter | 3.1mm | |
| Maximum Self Resonant Frequency | 43MHz | |
| Moulded | No | |
| Inductor Construction | Shielded | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 1.2μH | ||
Product Type Surface Mount Inductor | ||
Maximum DC Current 17.2A | ||
Sub Type SMT Power Inductor | ||
Package/Case 5030 | ||
Packaging Tape & Reel | ||
Length 5.4mm | ||
Automotive Standard No | ||
Shielding Yes | ||
Maximum DC Resistance 5.2mΩ | ||
Minimum Operating Temperature -40°C | ||
Inductance Tolerance ±20 % | ||
Maximum Operating Temperature 125°C | ||
Series 744384 | ||
Standards/Approvals 863, Halogen Free IEC 61249-2-21, EU&2015, REACH EC1907, 2006, RoHS 2011, Halogen Free JEDEC JS709B | ||
Core Material Magnetic Iron Alloy | ||
Height 3.1mm | ||
Depth 3.1mm | ||
Diameter 3.1mm | ||
Maximum Self Resonant Frequency 43MHz | ||
Moulded No | ||
Inductor Construction Shielded | ||
- COO (Country of Origin):
- KR
The Wurth Elektronik Power Inductor is a high-efficiency, Compact component designed for high efficiency and current capability applications and Advanced power management. With low DC resistance, high saturation current, and AEC-Q200 Grade 1 certification, it provides reliable operation in DC/DC converters, battery-powered devices, and wireless communication systems. Additionally, its high-frequency capabilities make it well suited for GaN and SiC applications.
RoHS and REACH Compliant
Halogen Free
Moisture Sensitivity Level 1
Innovative iron alloy material
Ultra low RDC and AC losses
Optimized for high switching frequencies beyond 1 MHz
