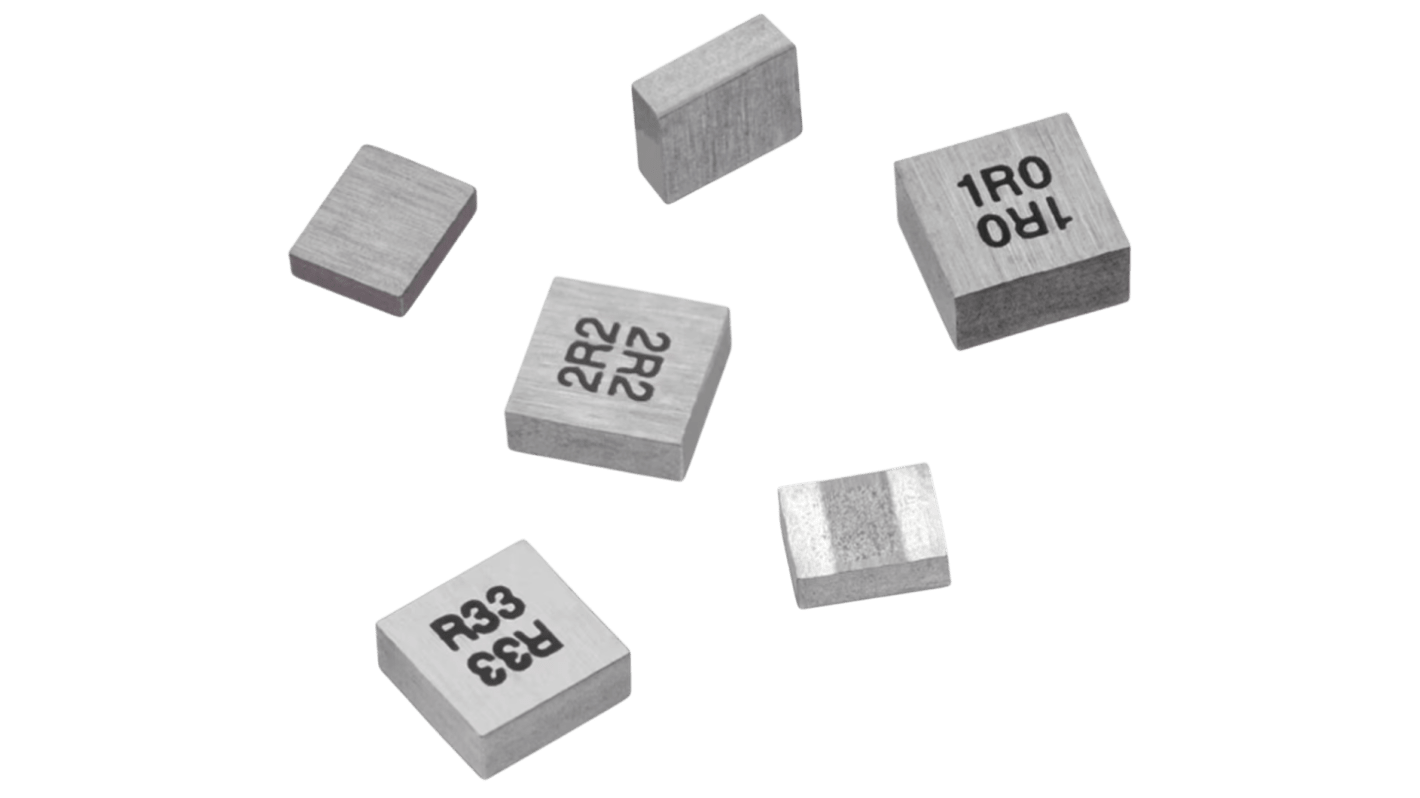

Wurth Elektronik, 784383, 6030HT Shielded Surface Mount Inductor with a Magnetic Iron Alloy Core, 3.3 μH Shielded ±20 %
- RS Stock No.:
- 427-189
- Mfr. Part No.:
- 78438377033HT
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 450 units)*
£1,111.05
(exc. VAT)
£1,333.35
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 450 + | £2.469 | £1,111.05 |
*price indicative
- RS Stock No.:
- 427-189
- Mfr. Part No.:
- 78438377033HT
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Surface Mount Inductor | |
| Inductance | 3.3 μH | |
| Sub Type | SMT Power Inductor | |
| Maximum DC Current | 9.6A | |
| Package/Case | 6030HT | |
| Packaging | Tape & Reel | |
| Length | 6.6mm | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Minimum Operating Temperature | -55°C | |
| Maximum DC Resistance | 20.4mΩ | |
| Series | 784383 | |
| Inductance Tolerance | ±20 % | |
| Maximum Operating Temperature | 150°C | |
| Depth | 3.1mm | |
| Diameter | 3.1 mm | |
| Core Material | Magnetic Iron Alloy | |
| Standards/Approvals | IEC 60286-3:2019, IEC 61249-2-21, Halogen Free, JEDEC JS709B, IEC 62024-2-2020, REACH, RoHS | |
| Height | 3.1mm | |
| Termination Style | 6030HT | |
| Maximum Self Resonant Frequency | 22MHz | |
| Moulded | No | |
| Inductor Construction | Shielded | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Surface Mount Inductor | ||
Inductance 3.3 μH | ||
Sub Type SMT Power Inductor | ||
Maximum DC Current 9.6A | ||
Package/Case 6030HT | ||
Packaging Tape & Reel | ||
Length 6.6mm | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Minimum Operating Temperature -55°C | ||
Maximum DC Resistance 20.4mΩ | ||
Series 784383 | ||
Inductance Tolerance ±20 % | ||
Maximum Operating Temperature 150°C | ||
Depth 3.1mm | ||
Diameter 3.1 mm | ||
Core Material Magnetic Iron Alloy | ||
Standards/Approvals IEC 60286-3:2019, IEC 61249-2-21, Halogen Free, JEDEC JS709B, IEC 62024-2-2020, REACH, RoHS | ||
Height 3.1mm | ||
Termination Style 6030HT | ||
Maximum Self Resonant Frequency 22MHz | ||
Moulded No | ||
Inductor Construction Shielded | ||
- COO (Country of Origin):
- KR
The Wurth Elektronik Power Inductor is a high-performance, automotive-qualified component designed for efficient energy storage and power regulation. It features low DC resistance, high current handling, and robust environmental compliance, making it Ideal for powertrain converters, DC/DC converters, battery management systems, and other demanding applications. Its AEC-Q200 Grade 0 qualification ensures reliability in automotive and industrial environments.
RoHS and REACH Compliant
Halogen Free
Moisture Sensitivity Level 1
No acoustic noise and no leakage flux noise
Magnetic iron alloy allows high rated currents
Magnetically shielded
