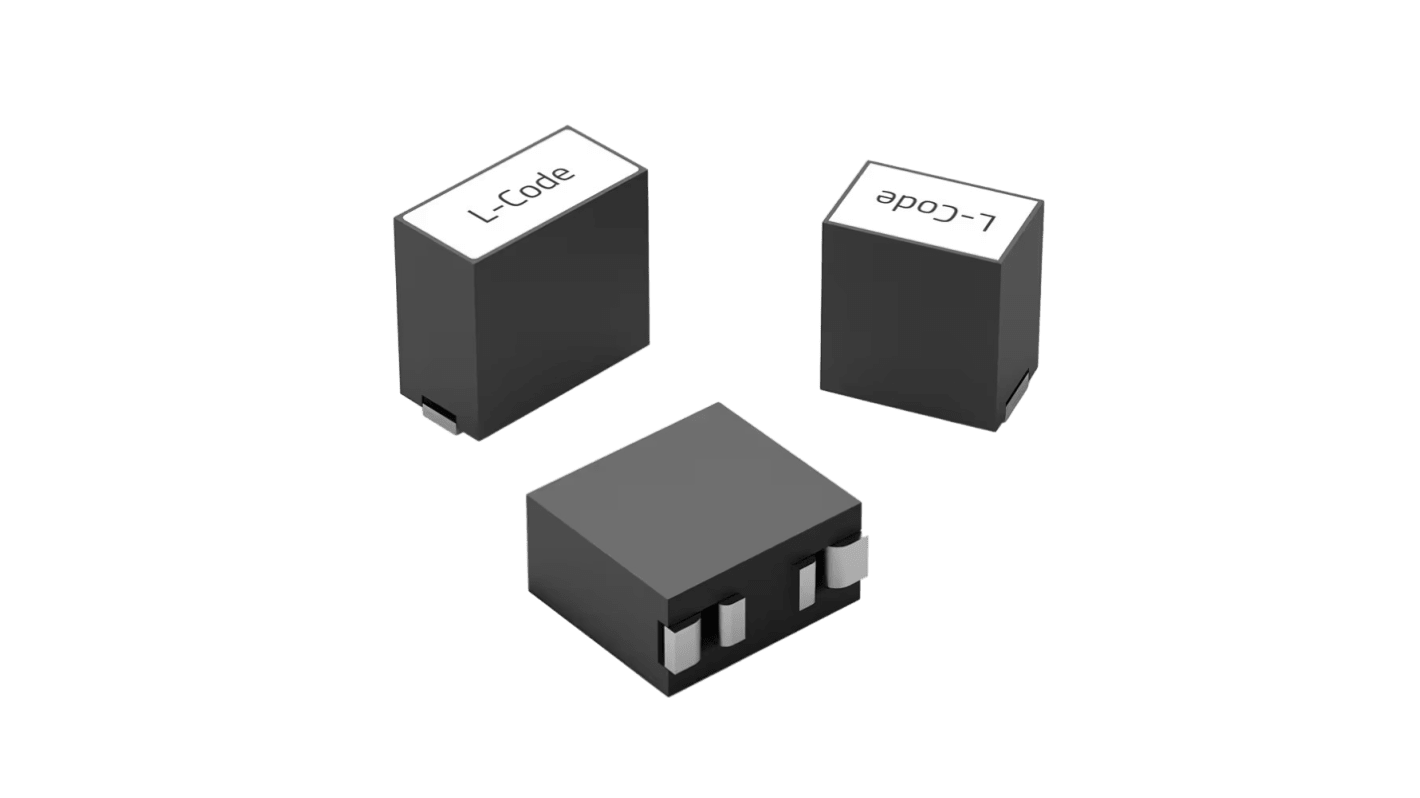

Wurth Elektronik, 744300, 9010 Shielded Surface Mount Inductor with a Manganese Zinc Ferrite Core, 150 nH Shielded ±15 %
- RS Stock No.:
- 427-029
- Mfr. Part No.:
- 7443000910150
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 500 units)*
£1,014.00
(exc. VAT)
£1,217.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 500 + | £2.028 | £1,014.00 |
*price indicative
- RS Stock No.:
- 427-029
- Mfr. Part No.:
- 7443000910150
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Surface Mount Inductor | |
| Inductance | 150nH | |
| Sub Type | High Current Flat Wire Inductor | |
| Maximum DC Current | 78A | |
| Package/Case | 9010 | |
| Packaging | Tape & Reel | |
| Length | 9.3mm | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 0.33mΩ | |
| Series | 744300 | |
| Inductance Tolerance | ±15 % | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | IEC 60286-3:2019, 863, Halogen Free JEDEC JS709B, 2006, IPC, Halogen Free IEC 61249-2-21, IEC 62024 2-2020, RoHS 2011, JEDEC J-STD-020E, EU&2015, REACH EC1907 | |
| Diameter | 6.1mm | |
| Height | 6.1mm | |
| Depth | 6.1mm | |
| Core Material | Manganese Zinc Ferrite | |
| Inductor Construction | Shielded | |
| Moulded | No | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Surface Mount Inductor | ||
Inductance 150nH | ||
Sub Type High Current Flat Wire Inductor | ||
Maximum DC Current 78A | ||
Package/Case 9010 | ||
Packaging Tape & Reel | ||
Length 9.3mm | ||
Automotive Standard No | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 0.33mΩ | ||
Series 744300 | ||
Inductance Tolerance ±15 % | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals IEC 60286-3:2019, 863, Halogen Free JEDEC JS709B, 2006, IPC, Halogen Free IEC 61249-2-21, IEC 62024 2-2020, RoHS 2011, JEDEC J-STD-020E, EU&2015, REACH EC1907 | ||
Diameter 6.1mm | ||
Height 6.1mm | ||
Depth 6.1mm | ||
Core Material Manganese Zinc Ferrite | ||
Inductor Construction Shielded | ||
Moulded No | ||
- COO (Country of Origin):
- TW
The Wurth Elektronik High-Current Inductor is designed for Transient Load Voltage Regulation (TLVR) applications, offering exceptional current handling and minimal DC resistance for efficient power delivery. With AEC-Q200 certification, it ensures high reliability in multiphase voltage regulators, CPU motherboards, FPGA-based designs, and high-power ASIC applications. Its low coupling coefficient and optimized electrical properties make it an excellent choice for servers, internet switches, and other high-frequency power systems.
RoHS and REACH Compliant
Halogen Free
Moisture Sensitivity Level 1
MnZn core and high permeability material
