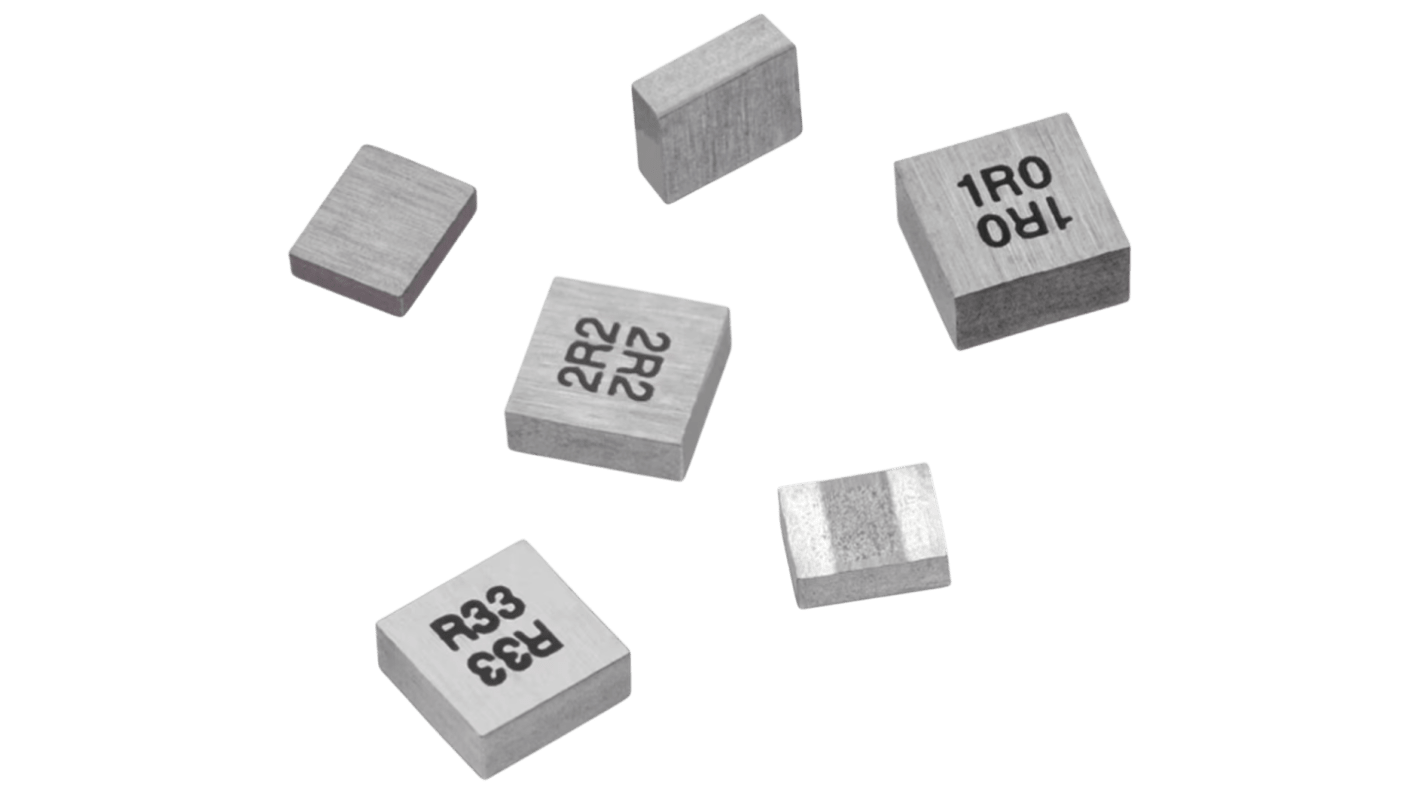

Wurth Elektronik, 784383, 2010 Shielded Surface Mount Inductor with a Magnetic Iron Alloy Core, 820 nH Shielded ±30 %
- RS Stock No.:
- 426-977
- Mfr. Part No.:
- 784383430082
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 3000 units)*
£3,228.00
(exc. VAT)
£3,873.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 24 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £1.076 | £3,228.00 |
*price indicative
- RS Stock No.:
- 426-977
- Mfr. Part No.:
- 784383430082
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Surface Mount Inductor | |
| Inductance | 820nH | |
| Maximum DC Current | 3.15A | |
| Sub Type | SMT Power Inductor | |
| Package/Case | 2010 | |
| Packaging | Tape & Reel | |
| Length | 2mm | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Maximum DC Resistance | 92mΩ | |
| Minimum Operating Temperature | -40°C | |
| Inductance Tolerance | ±30 % | |
| Series | 784383 | |
| Maximum Operating Temperature | 125°C | |
| Core Material | Magnetic Iron Alloy | |
| Diameter | 1mm | |
| Standards/Approvals | REACH (EC 1907/2006), Halogen-Free (JEDEC JS709B,IEC 61249-2-21), RoHS (2011/65/EU&2015/863) | |
| Height | 1mm | |
| Depth | 1mm | |
| Maximum Self Resonant Frequency | 125MHz | |
| Moulded | No | |
| Inductor Construction | Shielded | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Surface Mount Inductor | ||
Inductance 820nH | ||
Maximum DC Current 3.15A | ||
Sub Type SMT Power Inductor | ||
Package/Case 2010 | ||
Packaging Tape & Reel | ||
Length 2mm | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Maximum DC Resistance 92mΩ | ||
Minimum Operating Temperature -40°C | ||
Inductance Tolerance ±30 % | ||
Series 784383 | ||
Maximum Operating Temperature 125°C | ||
Core Material Magnetic Iron Alloy | ||
Diameter 1mm | ||
Standards/Approvals REACH (EC 1907/2006), Halogen-Free (JEDEC JS709B,IEC 61249-2-21), RoHS (2011/65/EU&2015/863) | ||
Height 1mm | ||
Depth 1mm | ||
Maximum Self Resonant Frequency 125MHz | ||
Moulded No | ||
Inductor Construction Shielded | ||
- COO (Country of Origin):
- KR
The Wurth Elektronik Power Inductor is a high-performance, automotive-qualified component designed for efficient energy storage and power regulation. It features low DC resistance, high current handling, and robust environmental compliance, making it Ideal for powertrain converters, DC/DC converters, battery management systems, and other demanding applications. Its AEC-Q200 Grade 0 qualification ensures reliability in automotive and industrial environments.
RoHS and REACH Compliant
Halogen Free
Moisture Sensitivity Level 1
No acoustic noise and no leakage flux noise
Magnetic iron alloy allows high rated currents
Magnetically shielded
