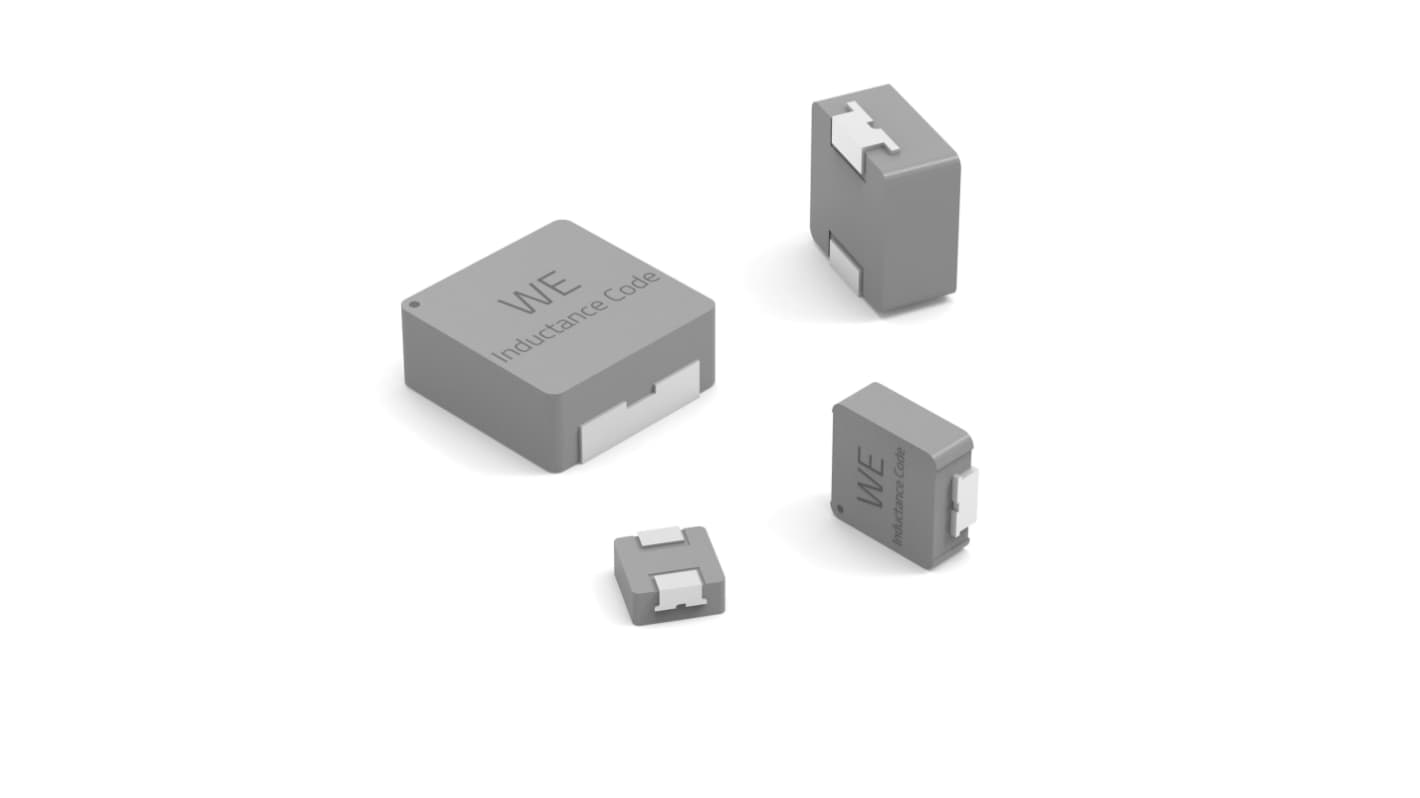

Wurth, 784383, 3020HT Shielded Wire-wound SMD Inductor with a Magnetic Iron Alloy Core, 3.3 μH ±20% Shielded 3.1A Idc
- RS Stock No.:
- 426-958
- Mfr. Part No.:
- 78438336033HT
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 1000 units)*
£1,357.00
(exc. VAT)
£1,628.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
1000 + | £1.357 | £1,357.00 |
*price indicative
- RS Stock No.:
- 426-958
- Mfr. Part No.:
- 78438336033HT
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wurth Elektronik | |
Inductance | 3.3 μH | |
Maximum DC Current | 3.1A | |
Package/Case | 3020HT | |
Length | 3mm | |
Automotive Standard | AEC-Q200 | |
Depth | 2mm | |
Shielded | Yes | |
Tolerance | ±20% | |
Series | 784383 | |
Core Material | Magnetic Iron Alloy | |
Inductor Construction | Shielded | |
Select all | ||
---|---|---|
Brand Wurth Elektronik | ||
Inductance 3.3 μH | ||
Maximum DC Current 3.1A | ||
Package/Case 3020HT | ||
Length 3mm | ||
Automotive Standard AEC-Q200 | ||
Depth 2mm | ||
Shielded Yes | ||
Tolerance ±20% | ||
Series 784383 | ||
Core Material Magnetic Iron Alloy | ||
Inductor Construction Shielded | ||
- COO (Country of Origin):
- KR
The Wurth Elektronik Power Inductor is a high-performance, automotive-qualified component designed for efficient energy storage and power regulation. It features low DC resistance, high current handling, and robust environmental compliance, making it ideal for powertrain converters, DC/DC converters, battery management systems, and other demanding applications. Its AEC-Q200 Grade 0 qualification ensures reliability in automotive and industrial environments.
RoHS and REACH Compliant
Halogen Free
Moisture Sensitivity Level 1
No acoustic noise and no leakage flux noise
Magnetic iron alloy allows high rated currents
Magnetically shielded
Halogen Free
Moisture Sensitivity Level 1
No acoustic noise and no leakage flux noise
Magnetic iron alloy allows high rated currents
Magnetically shielded
