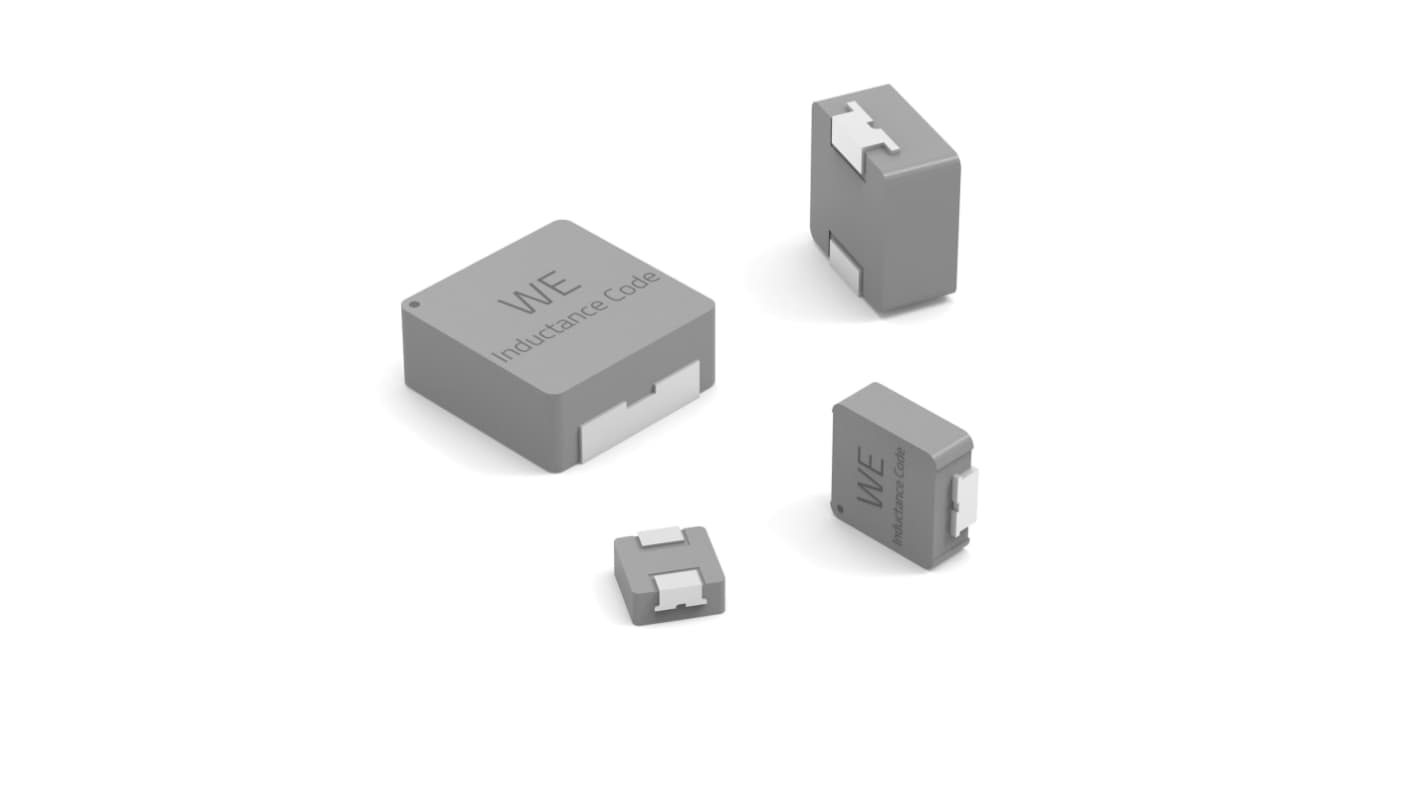

Wurth Elektronik, 784383, 3020HT Shielded Surface Mount Inductor with a Magnetic Iron Alloy Core, 1 μH Shielded ±20 %
- RS Stock No.:
- 426-949
- Mfr. Part No.:
- 78438336010HT
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 tape of 5 units)*
£9.03
(exc. VAT)
£10.835
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £1.806 | £9.03 |
| 50 - 95 | £1.714 | £8.57 |
| 100 - 495 | £1.588 | £7.94 |
| 500 + | £1.462 | £7.31 |
*price indicative
- RS Stock No.:
- 426-949
- Mfr. Part No.:
- 78438336010HT
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 1 μH | |
| Product Type | Surface Mount Inductor | |
| Sub Type | SMT Power Inductor | |
| Maximum DC Current | 5.8A | |
| Package/Case | 3020HT | |
| Packaging | Tape & Reel | |
| Length | 3mm | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Maximum DC Resistance | 32.8mΩ | |
| Minimum Operating Temperature | -55°C | |
| Inductance Tolerance | ±20 % | |
| Maximum Operating Temperature | 150°C | |
| Series | 784383 | |
| Standards/Approvals | Halogen Free JEDEC JS709B, 863, EU&2015, 2006, Halogen Free IEC 61249-2-21, REACH EC1907, RoHS 2011 | |
| Termination Style | 3020HT | |
| Height | 2mm | |
| Diameter | 2 mm | |
| Core Material | Magnetic Iron Alloy | |
| Depth | 2mm | |
| Maximum Self Resonant Frequency | 67MHz | |
| Inductor Construction | Shielded | |
| Moulded | No | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 1 μH | ||
Product Type Surface Mount Inductor | ||
Sub Type SMT Power Inductor | ||
Maximum DC Current 5.8A | ||
Package/Case 3020HT | ||
Packaging Tape & Reel | ||
Length 3mm | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Maximum DC Resistance 32.8mΩ | ||
Minimum Operating Temperature -55°C | ||
Inductance Tolerance ±20 % | ||
Maximum Operating Temperature 150°C | ||
Series 784383 | ||
Standards/Approvals Halogen Free JEDEC JS709B, 863, EU&2015, 2006, Halogen Free IEC 61249-2-21, REACH EC1907, RoHS 2011 | ||
Termination Style 3020HT | ||
Height 2mm | ||
Diameter 2 mm | ||
Core Material Magnetic Iron Alloy | ||
Depth 2mm | ||
Maximum Self Resonant Frequency 67MHz | ||
Inductor Construction Shielded | ||
Moulded No | ||
- COO (Country of Origin):
- KR
The Wurth Elektronik Power Inductor is a high-performance, automotive-qualified component designed for efficient energy storage and power regulation. It features low DC resistance, high current handling, and robust environmental compliance, making it Ideal for powertrain converters, DC/DC converters, battery management systems, and other demanding applications. Its AEC-Q200 Grade 0 qualification ensures reliability in automotive and industrial environments.
RoHS and REACH Compliant
Halogen Free
Moisture Sensitivity Level 1
No acoustic noise and no leakage flux noise
Magnetic iron alloy allows high rated currents
Magnetically shielded
