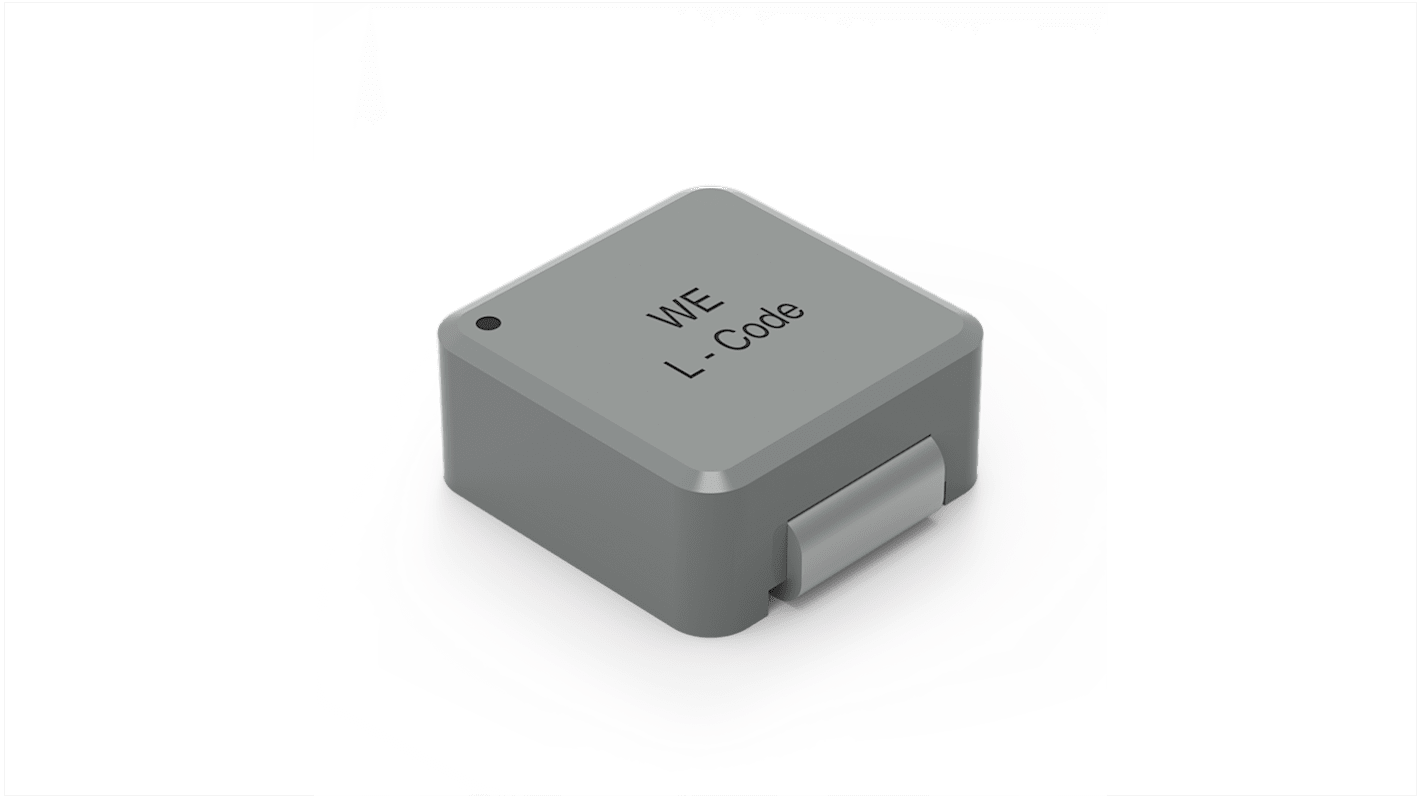

Wurth Elektronik, LHMI, 4020HT Shielded Surface Mount Inductor with a Polystyrene Core, 1 μH Moulded ±20 % 6.7 A Idc
- RS Stock No.:
- 271-431
- Mfr. Part No.:
- 7443732448010
- Brand:
- Wurth Elektronik
Get a bulk buy discount
Add 50 more to save 4%
View bulk pricing optionsSubtotal (1 tape of 5 units)*
£10.01
(exc. VAT)
£12.01
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 990 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* | Saving |
|---|---|---|---|
| 5 - 45 | £2.002 | £10.01 | - |
| 50 - 95 | £1.904 | £9.52 | 4% |
| 100 + | £1.764 | £8.82 | 11% |
*price indicative
- RS Stock No.:
- 271-431
- Mfr. Part No.:
- 7443732448010
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Surface Mount Inductor | |
| Inductance | 1μH | |
| Maximum DC Current | 6.7A | |
| Package/Case | 4020HT | |
| Length | 4.45mm | |
| Packaging | Tape & Reel | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Maximum DC Resistance | 27mΩ | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Inductance Tolerance | ±20 % | |
| Series | LHMI | |
| Height | 1.8mm | |
| Standards/Approvals | No | |
| Depth | 1.8mm | |
| Core Material | Polystyrene | |
| Termination Style | 4020HT | |
| Maximum Self Resonant Frequency | 66MHz | |
| Inductor Construction | Moulded | |
| Moulded | Yes | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Surface Mount Inductor | ||
Inductance 1μH | ||
Maximum DC Current 6.7A | ||
Package/Case 4020HT | ||
Length 4.45mm | ||
Packaging Tape & Reel | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Maximum DC Resistance 27mΩ | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Inductance Tolerance ±20 % | ||
Series LHMI | ||
Height 1.8mm | ||
Standards/Approvals No | ||
Depth 1.8mm | ||
Core Material Polystyrene | ||
Termination Style 4020HT | ||
Maximum Self Resonant Frequency 66MHz | ||
Inductor Construction Moulded | ||
Moulded Yes | ||
- COO (Country of Origin):
- CN
The Wurth Elektronik Power Inductor is a high-performance surface mount designed for general electronic applications. It features excellent current handling, low DC resistance and high reliability. The inductor is RoHS compliant, halogen free and AEC-Q200 qualified, ensuring compatibility with automotive and industrial standards.
Compact Design
Magnetically shielded
High current capability
Handles high transient current spikes
No acoustic noise and no leakage field
Operating temperature is -40 degree C to 125 degree C
