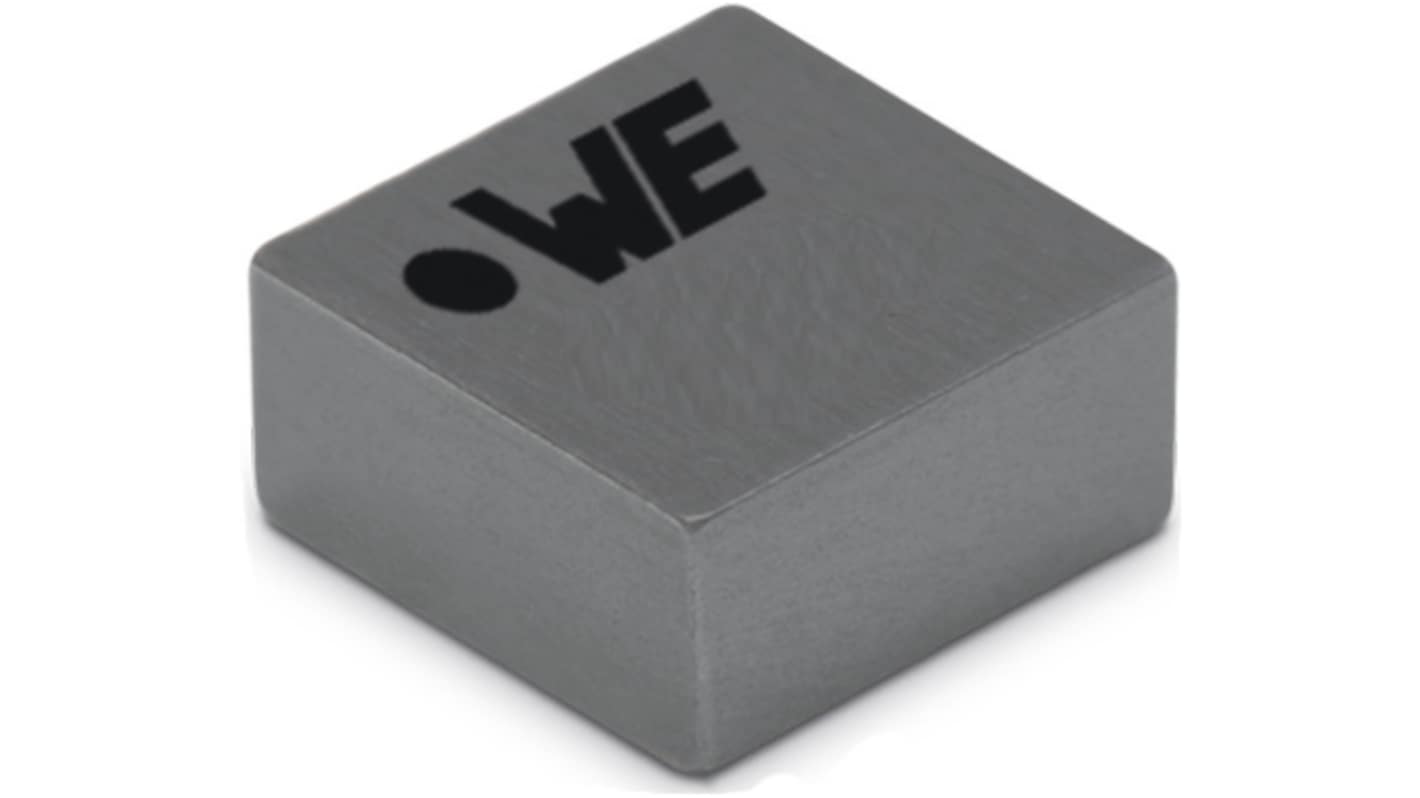

Wurth, MAPI, 4012 Shielded Wire-wound SMD Inductor with a Polystyrene Core, 33 nH ±30% 33.5A Idc
- RS Stock No.:
- 219-755
- Mfr. Part No.:
- 7443835400033
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 tape of 5 units)*
£6.38
(exc. VAT)
£7.655
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 495 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £1.276 | £6.38 |
| 50 - 95 | £1.212 | £6.06 |
| 100 - 495 | £1.12 | £5.60 |
| 500 - 995 | £1.034 | £5.17 |
| 1000 + | £0.994 | £4.97 |
*price indicative
- RS Stock No.:
- 219-755
- Mfr. Part No.:
- 7443835400033
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 33 nH | |
| Maximum DC Current | 33.5A | |
| Package/Case | 4012 | |
| Length | 4.1mm | |
| Depth | 1.3mm | |
| Automotive Standard | AEC-Q200 | |
| Shielded | Yes | |
| Tolerance | ±30% | |
| Series | MAPI | |
| Core Material | Polystyrene | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 33 nH | ||
Maximum DC Current 33.5A | ||
Package/Case 4012 | ||
Length 4.1mm | ||
Depth 1.3mm | ||
Automotive Standard AEC-Q200 | ||
Shielded Yes | ||
Tolerance ±30% | ||
Series MAPI | ||
Core Material Polystyrene | ||
- COO (Country of Origin):
- KR
The Wurth Elektronik Power Inductor is a high-performance inductor designed for power management and EMI filtering in compact electronics. With superior saturation current handling, low DC resistance and high-frequency, low DC resistance and high frequency performance, it is suitable for automotive, industrial, and consumer electronics applications. The inductor is environmentally friendly and halogen free.
Magnetic iron alloy allows high rated currents
Compact design
Magnetically shielded
High current capability and handles high transient current spikes
Low acoustic noise and low leakage flux noise
AEC Q 200 qualified
Operating temperature –40 degree C to 125 degree C
Compact design
Magnetically shielded
High current capability and handles high transient current spikes
Low acoustic noise and low leakage flux noise
AEC Q 200 qualified
Operating temperature –40 degree C to 125 degree C
