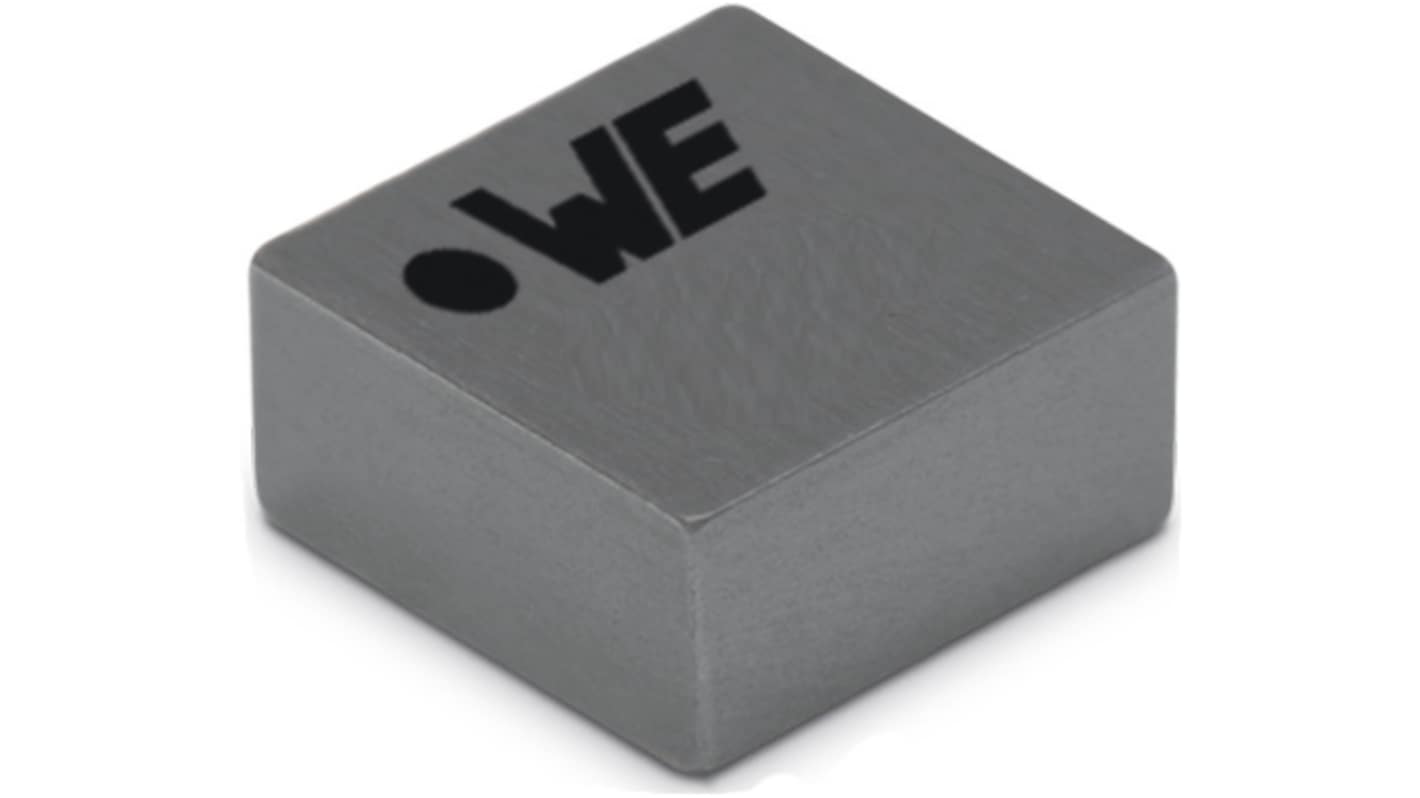

Wurth Elektronik, MAPI, 3020HT Shielded Surface Mount Inductor with a Polystyrene Core, 2.2 μH Shielded ±30 % 6.4 A Idc

View all Surface Mount Inductors
Bulk discount available

Subtotal (1 tape of 5 units)*

£5.90

(exc. VAT)

£7.10

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Tape*
5 - 45£1.18£5.90
50 - 95£1.118£5.59
100 - 495£1.038£5.19
500 - 995£0.956£4.78
1000 +£0.918£4.59

*price indicative

Development Kit Box with a flash stating "Win"
Win A Würth Elektronik Lighting Development Kit
Spend as little as £1 and win a Würth Elektronik Lighting Kit, complete with exclusive follow-up technical support from the experts themselves. Promotion ends 30th November 2025.
Claim my Lighting Kit
RS Stock No.:
219-751
Mfr. Part No.:
74438336022HT
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Inductance

2.2μH

Product Type

Surface Mount Inductor

Sub Type

SMT Power Inductor

Maximum DC Current

6.4A

Package/Case

3020HT

Length

3mm

Packaging

Tape & Reel

Automotive Standard

AEC-Q200

Shielding

Shielded

Minimum Operating Temperature

-55°C

Maximum DC Resistance

65.5mΩ

Inductance Tolerance

±30 %

Maximum Operating Temperature

150°C

Series

MAPI

Diameter

2mm

Standards/Approvals

IEC 61249-2-21, 2006, Halogen Free JEDEC JS709B, EU&2015, REACH EC1907, 863, RoHS 2011

Core Material

Polystyrene

Height

2mm

Termination Style

3020HT

Depth

2mm

Maximum Self Resonant Frequency

47MHz

Inductor Construction

Shielded

Moulded

No

COO (Country of Origin):
KR
The Wurth Elektronik Power Inductor is a high-performance inductor designed for power management and EMI filtering in compact electronics. With superior saturation current handling, low DC resistance and high-frequency, low DC resistance and high frequency performance, it is suitable for automotive, industrial, and consumer electronics applications. The inductor is environmentally friendly and halogen free.

Magnetic iron alloy allows high rated currents

Compact design

Magnetically shielded

High current capability and handles high transient current spikes

Low acoustic noise and low leakage flux noise

AEC Q 200 qualified

Operating temperature –40 degree C to 125 degree C
