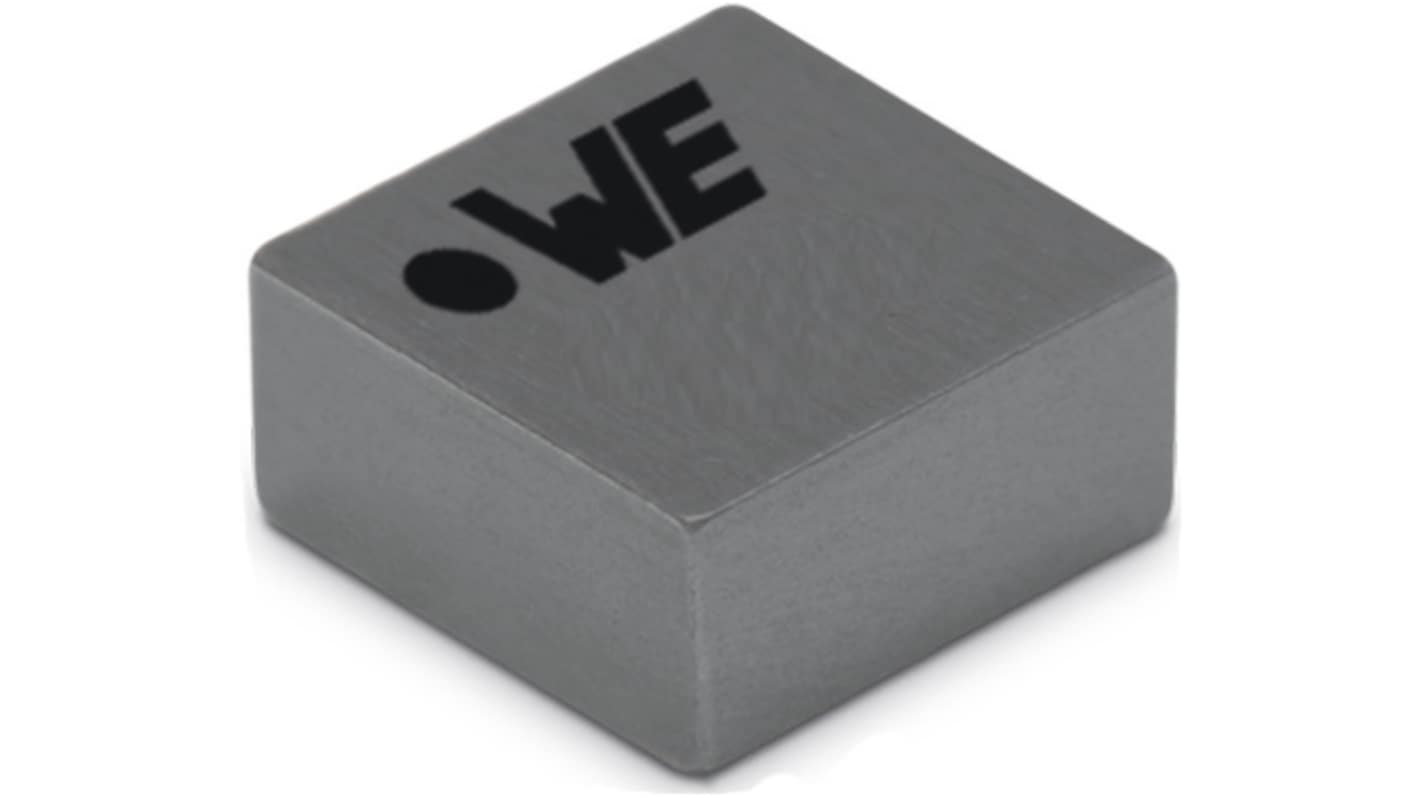

Wurth Elektronik, MAPI, 3015HT Shielded Surface Mount Inductor with a Polystyrene Core, 3.3 μH Shielded ±30 % 6.8 A Idc
- RS Stock No.:
- 219-741
- Mfr. Part No.:
- 74438335033HT
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 tape of 5 units)*
£6.40
(exc. VAT)
£7.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 470 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £1.28 | £6.40 |
| 50 - 95 | £1.216 | £6.08 |
| 100 - 495 | £1.126 | £5.63 |
| 500 - 995 | £1.036 | £5.18 |
| 1000 + | £1.00 | £5.00 |
*price indicative
- RS Stock No.:
- 219-741
- Mfr. Part No.:
- 74438335033HT
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 3.3 μH | |
| Product Type | Surface Mount Inductor | |
| Maximum DC Current | 6.8A | |
| Sub Type | SMT Power Inductor | |
| Package/Case | 3015HT | |
| Packaging | Tape & Reel | |
| Length | 3mm | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Shielded | |
| Maximum DC Resistance | 133mΩ | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Series | MAPI | |
| Inductance Tolerance | ±30 % | |
| Diameter | 1.5 mm | |
| Termination Style | 3015HT | |
| Depth | 1.5mm | |
| Core Material | Polystyrene | |
| Height | 1.5mm | |
| Standards/Approvals | IEC 61249-2-21, JEDEC JS709B, RoHS, REACH, Halogen Free | |
| Maximum Self Resonant Frequency | 35MHz | |
| Inductor Construction | Shielded | |
| Moulded | No | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 3.3 μH | ||
Product Type Surface Mount Inductor | ||
Maximum DC Current 6.8A | ||
Sub Type SMT Power Inductor | ||
Package/Case 3015HT | ||
Packaging Tape & Reel | ||
Length 3mm | ||
Automotive Standard AEC-Q200 | ||
Shielding Shielded | ||
Maximum DC Resistance 133mΩ | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Series MAPI | ||
Inductance Tolerance ±30 % | ||
Diameter 1.5 mm | ||
Termination Style 3015HT | ||
Depth 1.5mm | ||
Core Material Polystyrene | ||
Height 1.5mm | ||
Standards/Approvals IEC 61249-2-21, JEDEC JS709B, RoHS, REACH, Halogen Free | ||
Maximum Self Resonant Frequency 35MHz | ||
Inductor Construction Shielded | ||
Moulded No | ||
- COO (Country of Origin):
- KR
The Wurth Elektronik Power Inductor is a high-performance inductor designed for power management and EMI filtering in compact electronics. With superior saturation current handling, low DC resistance and high-frequency, low DC resistance and high frequency performance, it is suitable for automotive, industrial, and consumer electronics applications. The inductor is environmentally friendly and halogen free.
Magnetic iron alloy allows high rated currents
Compact design
Magnetically shielded
High current capability and handles high transient current spikes
Low acoustic noise and low leakage flux noise
AEC Q 200 qualified
Operating temperature –40 degree C to 125 degree C
