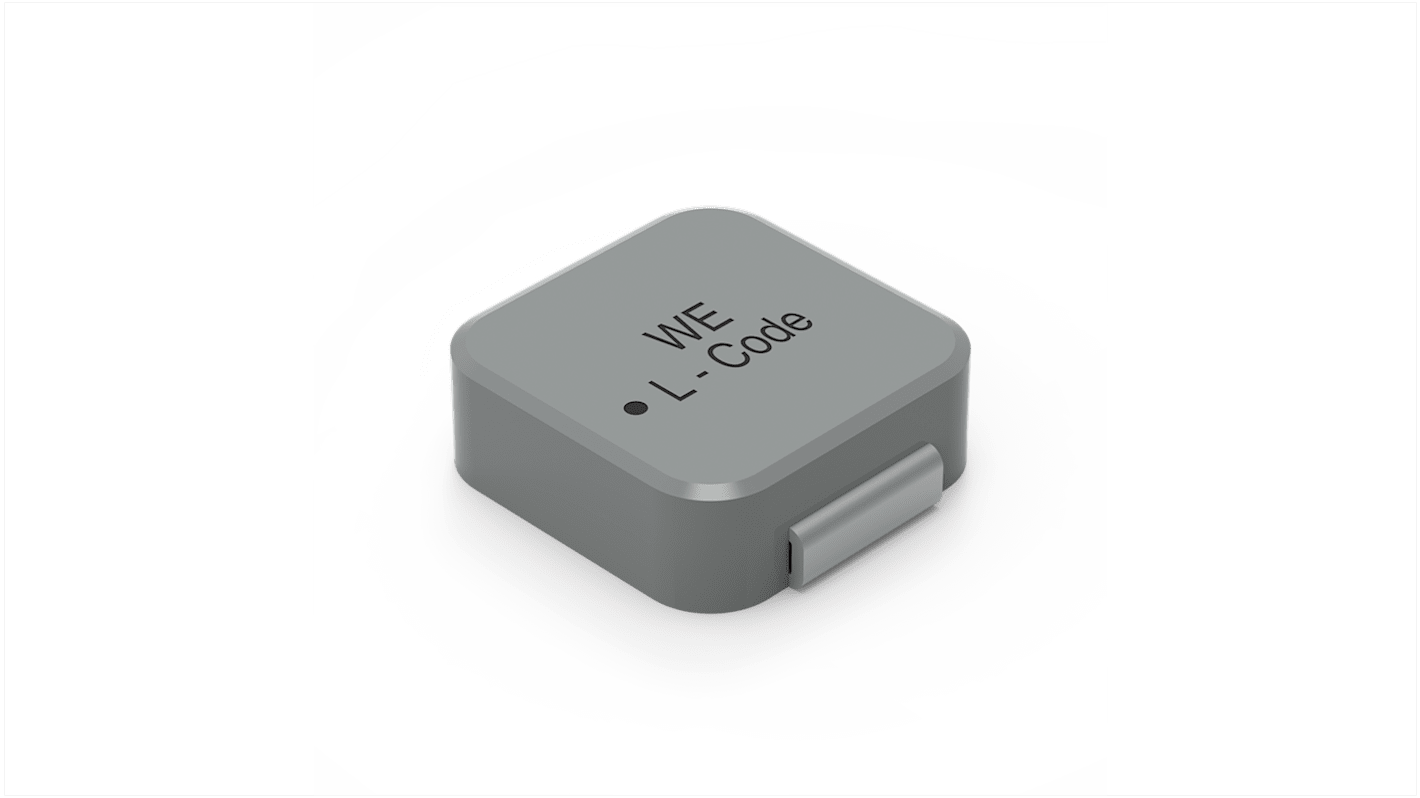

Wurth, LHMI, 5020HT Shielded Wire-wound SMD Inductor with a Polystyrene Core, 6.8 μH ±20% 3.5A Idc
- RS Stock No.:
- 219-701
- Mfr. Part No.:
- 7443733448068
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 tape of 5 units)*
£9.96
(exc. VAT)
£11.95
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 995 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
---|---|---|
5 - 45 | £1.992 | £9.96 |
50 - 95 | £1.892 | £9.46 |
100 - 495 | £1.752 | £8.76 |
500 - 995 | £1.612 | £8.06 |
1000 + | £1.552 | £7.76 |
*price indicative
- RS Stock No.:
- 219-701
- Mfr. Part No.:
- 7443733448068
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wurth Elektronik | |
Inductance | 6.8 μH | |
Maximum DC Current | 3.5A | |
Package/Case | 5020HT | |
Length | 5.7mm | |
Automotive Standard | AEC-Q200 | |
Depth | 1.8mm | |
Shielded | Yes | |
Tolerance | ±20% | |
Series | LHMI | |
Core Material | Polystyrene | |
Select all | ||
---|---|---|
Brand Wurth Elektronik | ||
Inductance 6.8 μH | ||
Maximum DC Current 3.5A | ||
Package/Case 5020HT | ||
Length 5.7mm | ||
Automotive Standard AEC-Q200 | ||
Depth 1.8mm | ||
Shielded Yes | ||
Tolerance ±20% | ||
Series LHMI | ||
Core Material Polystyrene | ||
- COO (Country of Origin):
- CN
The Wurth Elektronik Power Inductor is a high-performance surface mount designed for general electronic applications. It features excellent current handling, low DC resistance and high reliability. The inductor is RoHS compliant, halogen free and AEC-Q200 qualified, ensuring compatibility with automotive and industrial standards.
Compact Design
Magnetically shielded
High current capability
Handles high transient current spikes
No acoustic noise and no leakage field
Operating temperature is -40 degree C to 125 degree C
Magnetically shielded
High current capability
Handles high transient current spikes
No acoustic noise and no leakage field
Operating temperature is -40 degree C to 125 degree C
