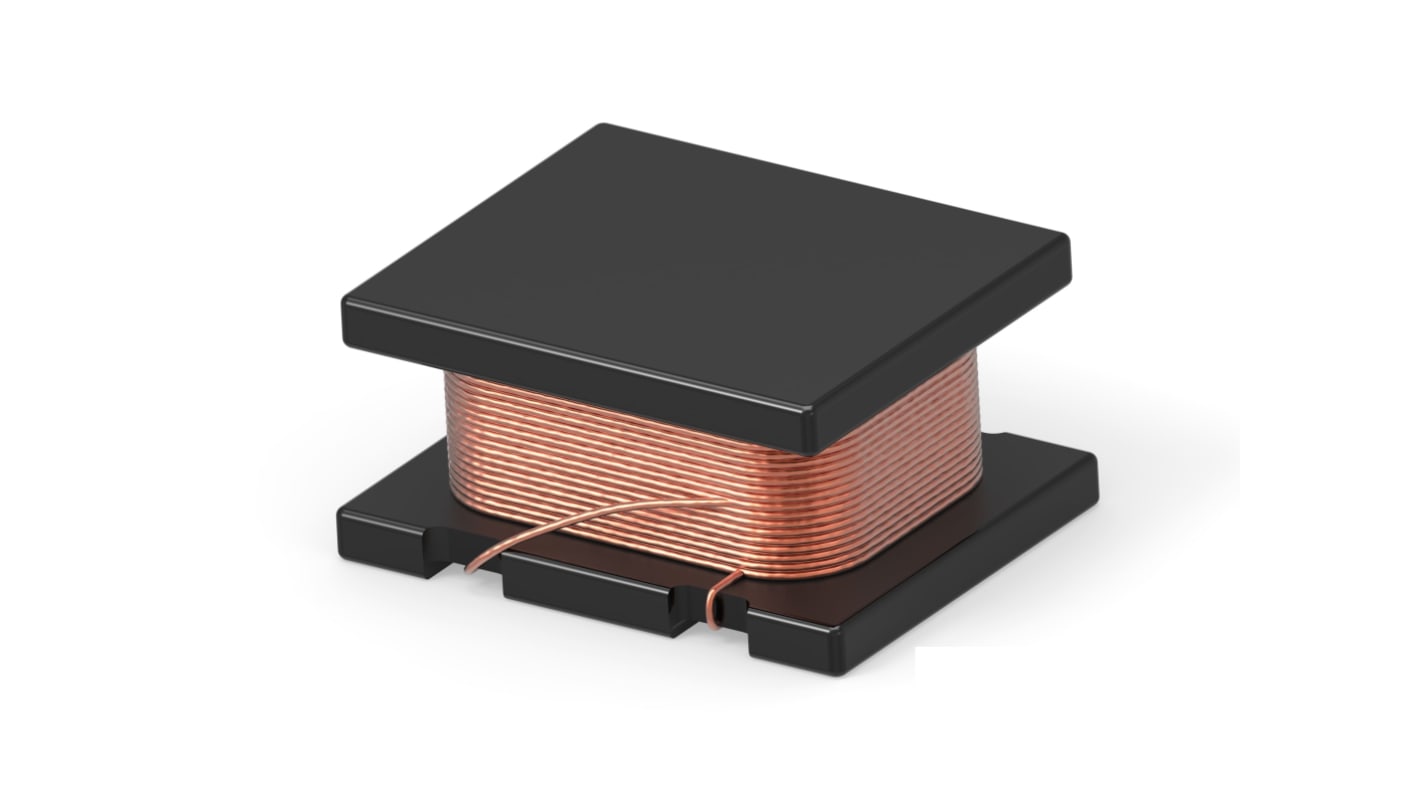

TE Connectivity, 3627, 3627 Unshielded Wire-wound SMD Inductor with a Ferrite Core, 1.5 μH 30% 1.75A Idc
- RS Stock No.:
- 171-139
- Mfr. Part No.:
- 3627322515C1R5N
- Brand:
- TE Connectivity
Subtotal (1 reel of 2000 units)*
£352.00
(exc. VAT)
£422.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
2000 + | £0.176 | £352.00 |
*price indicative
- RS Stock No.:
- 171-139
- Mfr. Part No.:
- 3627322515C1R5N
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Inductance | 1.5 μH | |
Maximum DC Current | 1.75A | |
Package/Case | 3627 | |
Length | 3.2mm | |
Depth | 2.5mm | |
Height | 1.55mm | |
Dimensions | 3.2 x 2.5 x 1.55mm | |
Shielded | No | |
Tolerance | 30% | |
Series | 3627 | |
Core Material | Ferrite | |
Maximum Self Resonant Frequency | 70MHz | |
Maximum Operating Temperature | +125°C | |
Minimum Operating Temperature | -40°C | |
Moulded | No | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Inductance 1.5 μH | ||
Maximum DC Current 1.75A | ||
Package/Case 3627 | ||
Length 3.2mm | ||
Depth 2.5mm | ||
Height 1.55mm | ||
Dimensions 3.2 x 2.5 x 1.55mm | ||
Shielded No | ||
Tolerance 30% | ||
Series 3627 | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 70MHz | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -40°C | ||
Moulded No | ||
- COO (Country of Origin):
- TW
The TE Connectivity Miniature SMD power inductors are designed with special ferrite cores for increased performance and reliability. This miniature SMD power inductor is a critical component in high frequency communication products, personal computers, disc drives, and computer peripherals and DC power supply circuits.
High current capacity
High impedance characteristics
Shock resistance
Vibration resistance
High impedance characteristics
Shock resistance
Vibration resistance
