RS PRO Surface Gauge, 82 x 63 x 27.5mm Base

View all Surface Gauges

Subtotal (1 unit)*

£78.80

(exc. VAT)

£94.56

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
  • Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£78.80

*price indicative

RS Stock No.:
230-0117
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Base Dimensions

82 x 63 x 27.5mm

Base Height

63mm

Base Length

82mm

Base Width

27.5mm

RoHS Status: Exempt

COO (Country of Origin):
IN

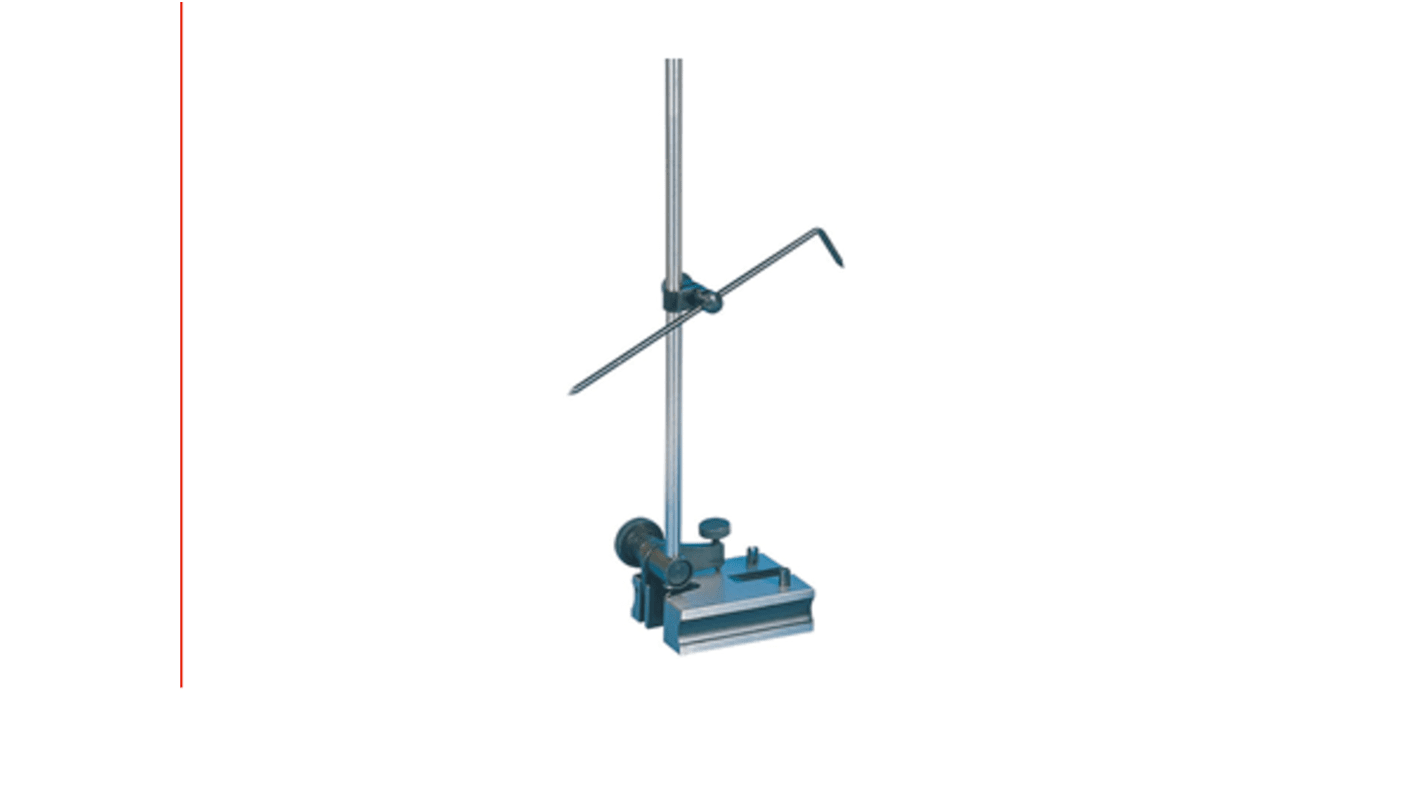

RS PRO Surface Gauge


Use this RS PRO surface gauge to mark lines on your machined surfaces. If you need to find the centre of a circular segment, you can use these marked lines to draw a square and then draw diagonals from its corners to locate the centre.
The gauge has a spindle that can be finely adjusted at any angle below or above the base, giving you a good level of flexibility for different kinds of work. There are also retractable pins in the base to provide stability when you're working on the edge of a surface, for safer, more efficient operation.
A double-ended scriber with hardened points will reliably draw lines on the most demanding surfaces. This surface gauge is ideal for use in machining and metalworking applications and it's also particularly suitable for maintenance and inspection.

Features and Benefits


  • 300 mm length and width 10 mm

  • Hardened and ground base

  • Ground vee groove in base for mounting on cylindrical work

  • Retractable pins provided in the base for work against edge of flat surface

  • Double ended scriber with hardened points for marking out

  • Fine adjustment of spindle may be made at any angle above or below the base

Applications


This product is ideal for several applications
  • Machining

  • Metalworking

  • Maintenance

  • Inspection
