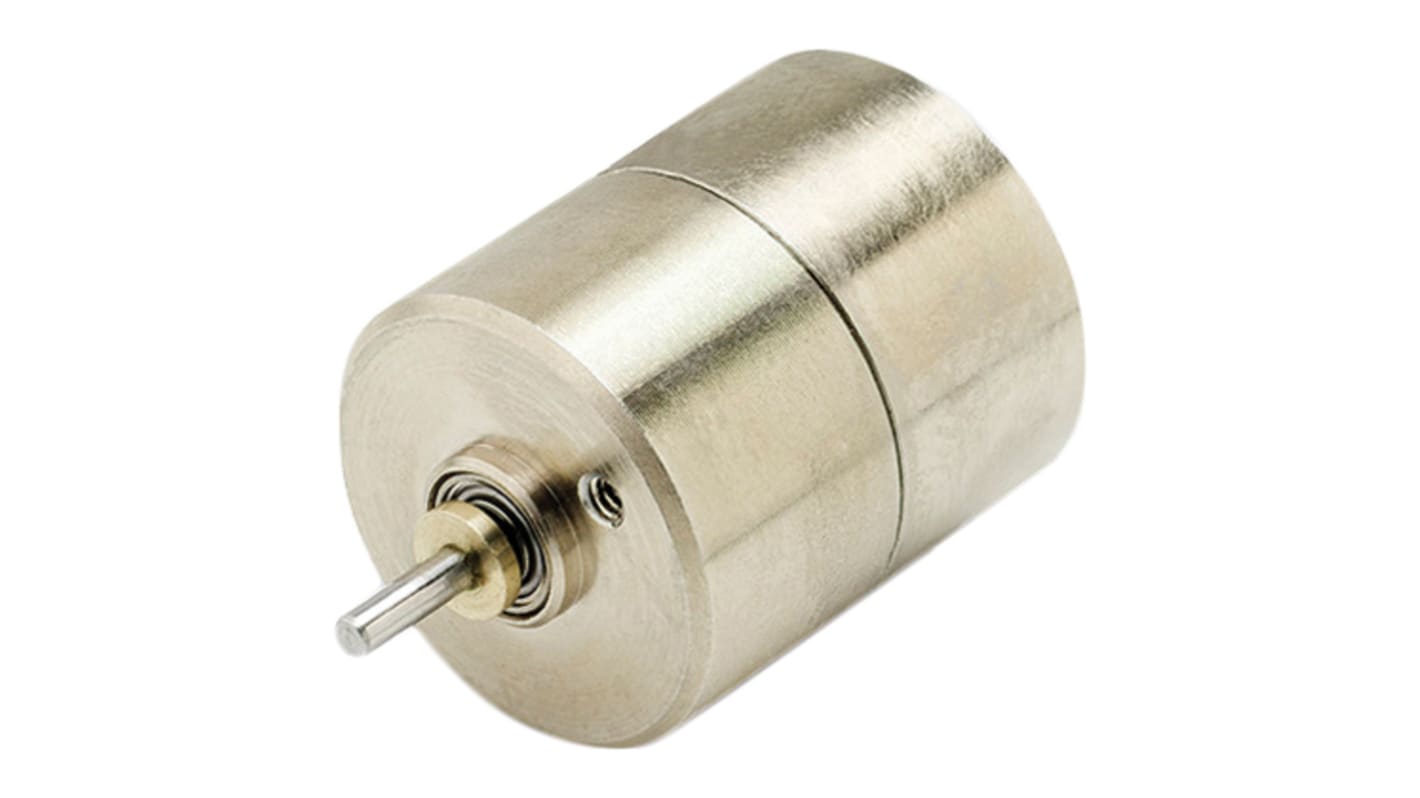

Portescap Bipolar, Unparallel Disc Magnet Stepper Motor 15°, 2.5mNm, 370 mA, 4 Wires

  • RS Stock No. 892-9154
  • Mfr. Part No. P010-064-003.02
  • Brand Portescap
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IN
Product Details

Portescap Disk Magnet Stepper Motor

Portescap Disc Magnet Motors provide exceptional dynamic performance unparalleled by any other small diameter stepper in the market. The unique thin disc magnet enables finer step resolutions in a given envelope, significantly higher acceleration and greater top speed than conventional steppers. These high speed stepper motors excel in applications that require the precision of a stepper and the speed and acceleration of a brushless DC motor. Closing the loop provides a competitive advantage against a servo solution.

Features & Benefits

Precise, well-suited for microstepping Fastest acceleration and highest top speed
Low detent torque and highly customizable
Higher steps per revolution than similar diameter steppers

Applications

Clinical Diagnostics Motors for Medical Pipettes
Barcode scanners
Laser cutters

Portescap - Stepper Motors

Specifications
Attribute Value
Step Angle 15°
Holding Torque 2.5mNm
Number Of Wires 4
Stepper Motor Type Disc Magnet
Shaft Diameter 1.5mm
Current Rating 370 mA
Winding Arrangement Bipolar, Unparallel
Shaft Length 2.9mm
Depth 26mm
Number of Pole Pairs 1
Resistance Per Phase
Detent Torque 0.04mNm
Standards Met RoHS Compliant
108 In stock - FREE next working day delivery available
Price Each
£ 66.65
(exc. VAT)
£ 79.98
(inc. VAT)
Units
Per unit
1 +
£66.65
