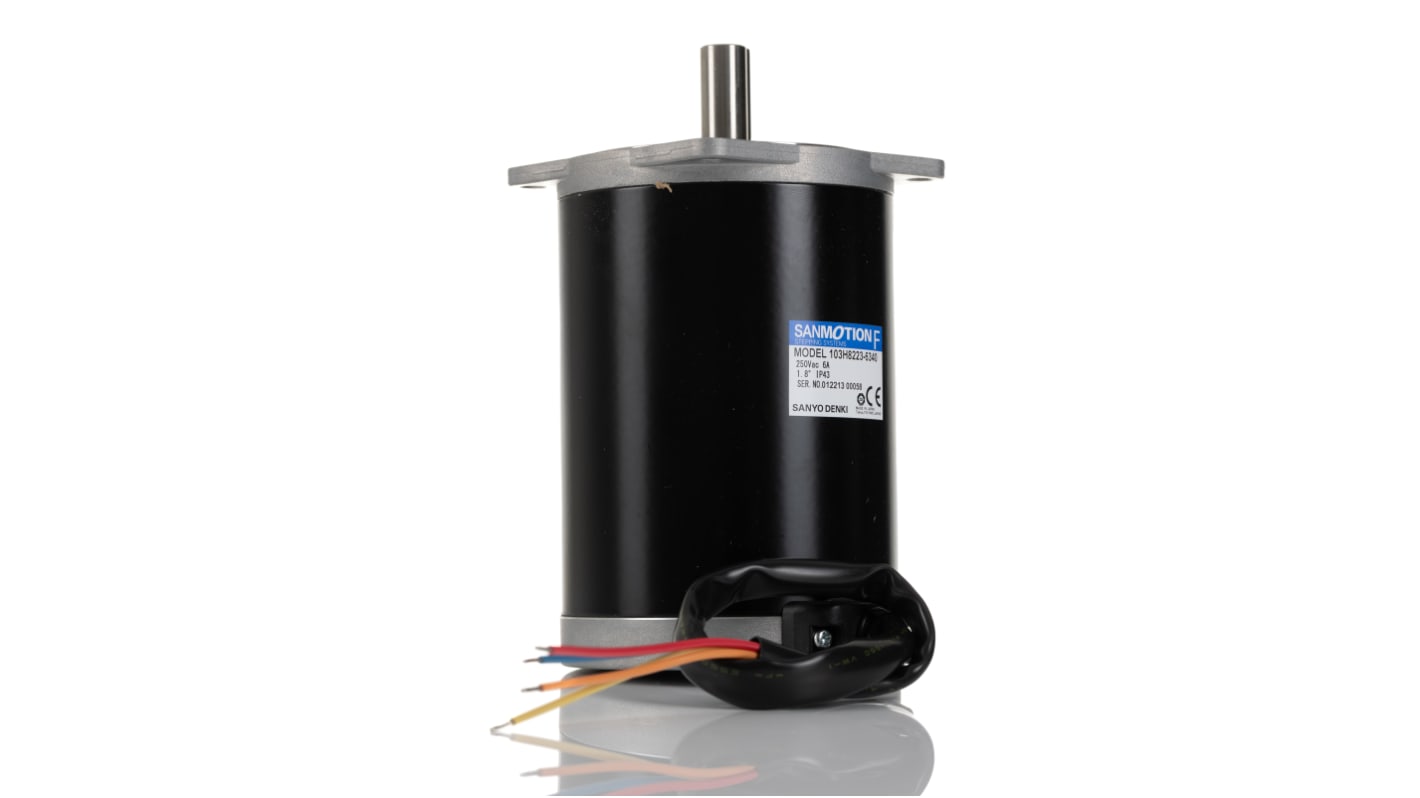

Sanyo Denki 103H8 Series Stepper Motor 100V, 7.44Nm Torque, 1.8 °, 85.85 x 85.85 mm Frame, 12 mm Shaft
- RS Stock No.:
- 878-7711
- Mfr. Part No.:
- 103H8223-6340
- Brand:
- Sanyo Denki
Subtotal (1 unit)*
£408.80
(exc. VAT)
£490.56
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 3 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 + | £408.80 |
*price indicative
- RS Stock No.:
- 878-7711
- Mfr. Part No.:
- 103H8223-6340
- Brand:
- Sanyo Denki
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sanyo Denki | |
| Product Type | Stepper Motor | |
| Step Angle | 1.8° | |
| Holding Torque | 7.44Nm | |
| Voltage | 100V | |
| Frame Size | 85.85 x 85.85 mm | |
| Shaft Diameter | 12mm | |
| Current Rating | 6A | |
| Winding Arrangement | Bipolar | |
| Shaft Length | 30mm | |
| IP Rating | IP40, IP65, IP43 | |
| Resistance Per Phase | 0.45Ω | |
| Standards/Approvals | CE, RoHS Compliant, TUV, UL | |
| Depth | 127.42mm | |
| Length | 125.9mm | |
| Series | 103H8 | |
| Select all | ||
|---|---|---|
Brand Sanyo Denki | ||
Product Type Stepper Motor | ||
Step Angle 1.8° | ||
Holding Torque 7.44Nm | ||
Voltage 100V | ||
Frame Size 85.85 x 85.85 mm | ||
Shaft Diameter 12mm | ||
Current Rating 6A | ||
Winding Arrangement Bipolar | ||
Shaft Length 30mm | ||
IP Rating IP40, IP65, IP43 | ||
Resistance Per Phase 0.45Ω | ||
Standards/Approvals CE, RoHS Compliant, TUV, UL | ||
Depth 127.42mm | ||
Length 125.9mm | ||
Series 103H8 | ||
- COO (Country of Origin):
- JP
Sanyo Denki Stepper Motor, 6A Current Rating, 30mm Shaft Length - SANMOTION 103H8 Series - 103H8223-6340
Drive your automation processes forward precisely with this stepper motor from Sanyo Denki. Thanks to its step angle of 1.8°, it provides a higher level of control over mechanical elements than is possible with a standard motor. This product is a hybrid single-shaft version that offers a high torque of 7.44Nm for its size, so you get highly responsive operations. Its frame dimensions of just 85.85 (L) x 85.85mm (W) make it a compact solution.
Features & Benefits
• Shaft length of 30mm and diameter of 12mm for a good balance between torque transmission and torsional load
• Bipolar winding means both coils are energized for enhanced torque
Applications
• Automation control
• Manufacturing equipment
• Home electronics projects
• Printers
What's the difference between a DC and a stepper motor?
DC motors rotate continuously, whereas stepper motors have toothed electromagnets inside that can be moved through one at a time for precise positioning. This allows the position of the rotor to be controlled digitally in applications such as robotics systems and automated production lines.
