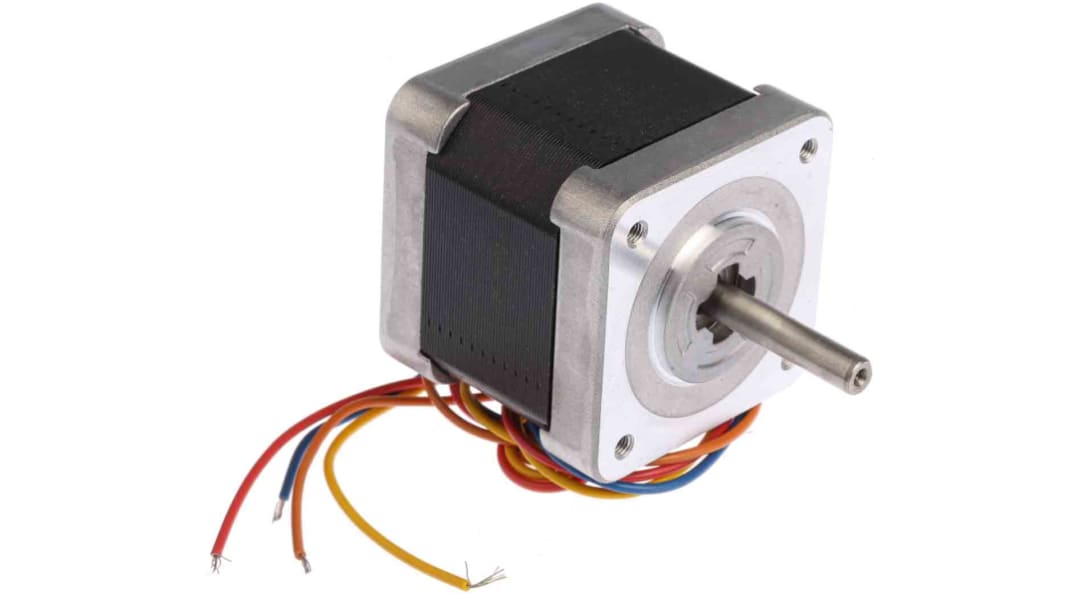

Sanyo Denki Bipolar Hybrid Stepper Motor 1.8°, 0.39nm, 24 V dc, 1 A, 4 Wires

  • RS Stock No. 829-3503
  • Mfr. Part No. 103H5208-5240
  • Brand Sanyo Denki
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Sanyo Denki Sanmotion 103H5 Series Stepper Motor

Sany Denki range of Stepper Motors providing the user with a comprehensive range of options to ensure your application is covered

Offered in both Unipolar & Bipolar winding options
Single round and double round shaft designs with adequate length providing the user with a simple mounting solution
Leaded options also available

Sanyo Denki Stepper Motor

Specifications
Attribute Value
Step Angle 1.8°
Holding Torque 0.39Nm
Number Of Wires 4
Voltage Rating 24 V dc
Frame Size 42 x 42mm
Stepper Motor Type Hybrid
Shaft Diameter 5mm
Current Rating 1 A
Winding Arrangement Bipolar
Shaft Length 22.5mm
Depth 40.5mm
Resistance Per Phase 4.1Ω
Available to back order for despatch 25/09/2018
Price Each
£ 31.79
(exc. VAT)
£ 38.15
(inc. VAT)
Units
Per unit
1 - 4
£31.79
5 - 9
£30.81
10 +
£30.14
