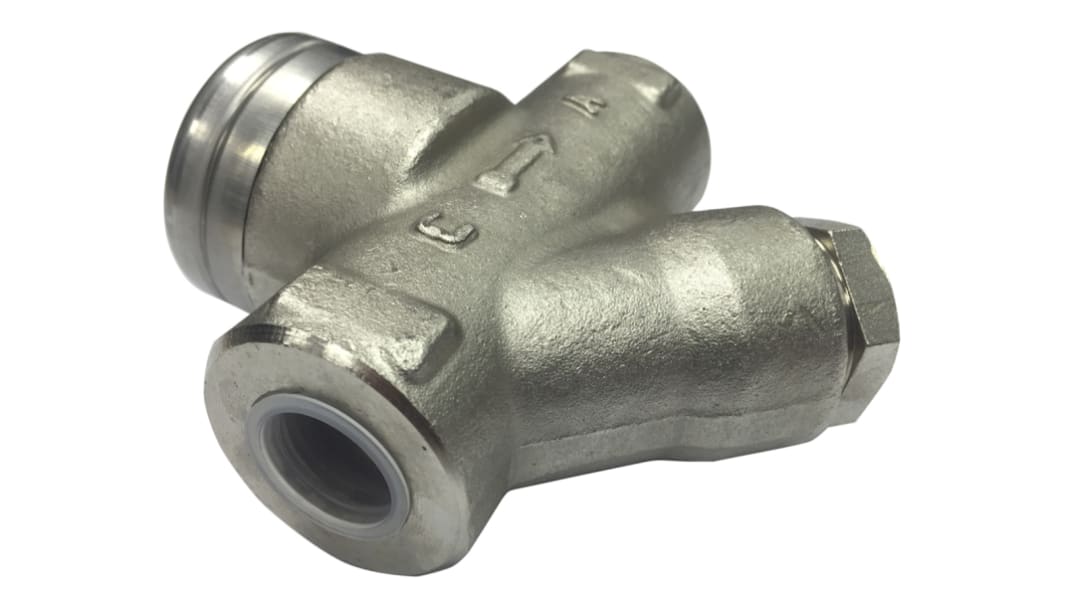

RS PRO 42 bar Carbon Steel Thermodynamic Steam Trap, 1/2 in BSP Female
- RS Stock No.:
- 720-9194
- Brand:
- RS PRO
Subtotal (1 unit)*
£199.51
(exc. VAT)
£239.41
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 17 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £199.51 |
*price indicative
- RS Stock No.:
- 720-9194
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Trap Type | Thermodynamic | |
Connection | 1/2 in BSP Female | |
Orientation | Horizontal | |
Maximum Working Pressure | 42 bar | |
Maximum Temperature | +300°C | |
Body Material | Carbon Steel | |
Gasket Material | Graphite | |
Connection Gender | Female | |
Connection Size | 1/2in | |
Thread Standard or Connection Type | BSP | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Trap Type Thermodynamic | ||
Connection 1/2 in BSP Female | ||
Orientation Horizontal | ||
Maximum Working Pressure 42 bar | ||
Maximum Temperature +300°C | ||
Body Material Carbon Steel | ||
Gasket Material Graphite | ||
Connection Gender Female | ||
Connection Size 1/2in | ||
Thread Standard or Connection Type BSP | ||
RoHS Status: Exempt
- COO (Country of Origin):
- PT
RS PRO 1/2in BSP Thermodynamic Steam Trap
A compact, lightweight and easy to install thermodynamic disc steam trap. Designed with a single moving part the steam trap is ideal for use in high pressure systems for applications including steam tracing.
The steam trap is manufactured from tough Carbon Steel, features a built in strainer and is fitted with an insulation cover protecting against weather conditions, water hammering and vibration.
The seat and the disc are designed to be easily replaced without having to dismantle the trap for easy in line maintenance.
The steam trap is manufactured from tough Carbon Steel, features a built in strainer and is fitted with an insulation cover protecting against weather conditions, water hammering and vibration.
The seat and the disc are designed to be easily replaced without having to dismantle the trap for easy in line maintenance.
Features and Benefits
1/2in BSP female
Intermittent discharge
Operates on superheated steam
Built-in easy-to-clean strainer
Easy to replace seat and the disc
Protected against vibration and water hammer
Intermittent discharge
Operates on superheated steam
Built-in easy-to-clean strainer
Easy to replace seat and the disc
Protected against vibration and water hammer
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
