RS PRO Disconnect Terminal Block, 12-Way, 76A, 16 mm² Wire, Screw Termination
- RS Stock No.:
- 910-6788
- Brand:
- RS PRO
Subtotal (1 unit)*
£13.48
(exc. VAT)
£16.18
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 249 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £13.48 |
*price indicative
- RS Stock No.:
- 910-6788
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Ways | 12 | |
| Current Rating | 76A | |
| Wire Size | 16 mm² | |
| Termination Method | Screw | |
| Mounting Type | Surface Mount | |
| Fused | No | |
| Material | Glass Fibre Reinforced, Polyamide | |
| Pitch | 14.5mm | |
| Voltage Rating | 450 V | |
| Maximum Operating Temperature | +150°C | |
| Contact Material | OT58 | |
| Contact Plating | Nickel | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Ways 12 | ||
Current Rating 76A | ||
Wire Size 16 mm² | ||
Termination Method Screw | ||
Mounting Type Surface Mount | ||
Fused No | ||
Material Glass Fibre Reinforced, Polyamide | ||
Pitch 14.5mm | ||
Voltage Rating 450 V | ||
Maximum Operating Temperature +150°C | ||
Contact Material OT58 | ||
Contact Plating Nickel | ||
- COO (Country of Origin):
- IT

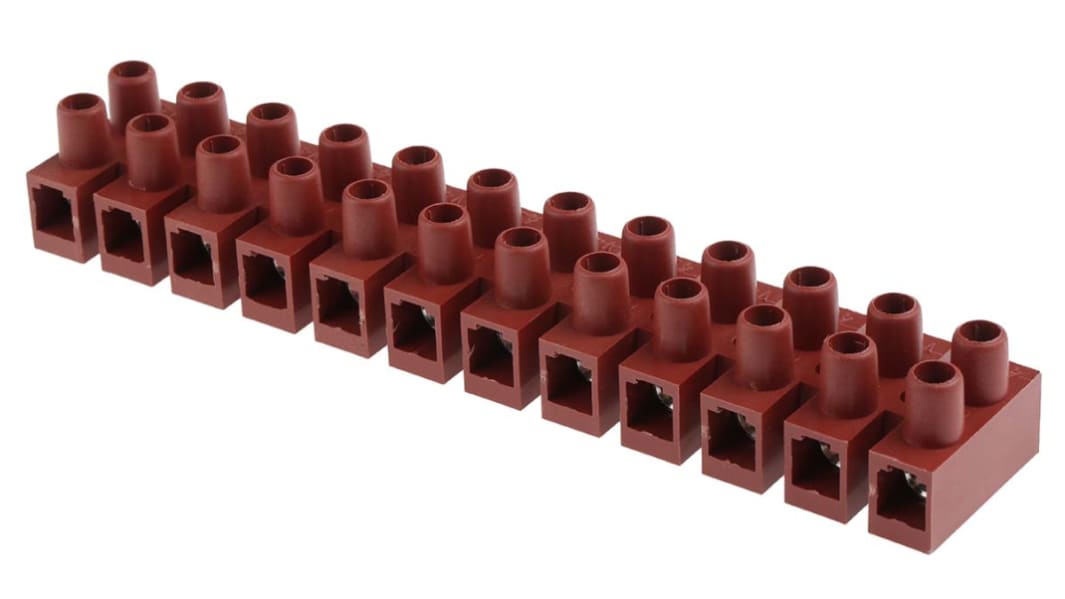

RS Pro 12 Way Red / Brown PA6.6 Glass Fibre Reinforced Pillar Terminal Block
From RS PRO, this non-fused terminal block presents a reliable and cost-effective solution to wire-to-wire connections. It features a glass reinforced nylon body that is highly durable for more robust applications.
This terminal block can be cut down to shorten the length, allowing for a highly customizable connector solution.
With screw-on terminals, a secure and efficient connection is assured.
Features and Benefits
• Glow wire resistance test temp: GWT750°C in 2 sec (EN60695-2-11)
• Working temperature of 150°C
• Terminal screw material: white zinc plated steel
• 25 mm high
• 32.2 mm wide
• 173.5 mm long
Applications
Modular terminal connectors have a wide range of applications and are a common component in electrical installations of all kinds, both domestic and industrial. The simplicity of their screw-down termination means they are particularly well suited to semi-permanent installations.
Whether for device connection to printed circuit boards or for wire-to-wire extensions, terminal blocks provide a straight forward and dependable connection solution. These non-fused terminal blocks are often used in;
• Connecting lighting to switches
• Connecting wiring to a ground
• HVAC Systems
• Power Supplies
FAQs
Q: Are these terminal blocks suitable for all environments?
A: Though terminal blocks are highly versatile, they are not the most secure of connectors, and may not be suitable for high vibration environments or applications where impact shock is a possibility.
Why RS PRO?
RS PRO strives to give you reliable parts at competitive prices. With in-house experts testing all of our RS PRO branded products, we're confident we'll satisfy your demand for quality and dependability.
RS PRO has an extensive range of electrical connector components. Whether you're operating in an industrial environment or domestic maintenance, RS PRO is with you every step of the way.450v
This terminal block can be cut down to shorten the length, allowing for a highly customizable connector solution.
With screw-on terminals, a secure and efficient connection is assured.
Features and Benefits
• Glow wire resistance test temp: GWT750°C in 2 sec (EN60695-2-11)
• Working temperature of 150°C
• Terminal screw material: white zinc plated steel
• 25 mm high
• 32.2 mm wide
• 173.5 mm long
Applications
Modular terminal connectors have a wide range of applications and are a common component in electrical installations of all kinds, both domestic and industrial. The simplicity of their screw-down termination means they are particularly well suited to semi-permanent installations.
Whether for device connection to printed circuit boards or for wire-to-wire extensions, terminal blocks provide a straight forward and dependable connection solution. These non-fused terminal blocks are often used in;
• Connecting lighting to switches
• Connecting wiring to a ground
• HVAC Systems
• Power Supplies
FAQs
Q: Are these terminal blocks suitable for all environments?
A: Though terminal blocks are highly versatile, they are not the most secure of connectors, and may not be suitable for high vibration environments or applications where impact shock is a possibility.
Why RS PRO?
RS PRO strives to give you reliable parts at competitive prices. With in-house experts testing all of our RS PRO branded products, we're confident we'll satisfy your demand for quality and dependability.
RS PRO has an extensive range of electrical connector components. Whether you're operating in an industrial environment or domestic maintenance, RS PRO is with you every step of the way.450v
Approvals
Glow Wire Resistance Test Temp: GWT750°C in 2 sec (EN60695-2-11)
