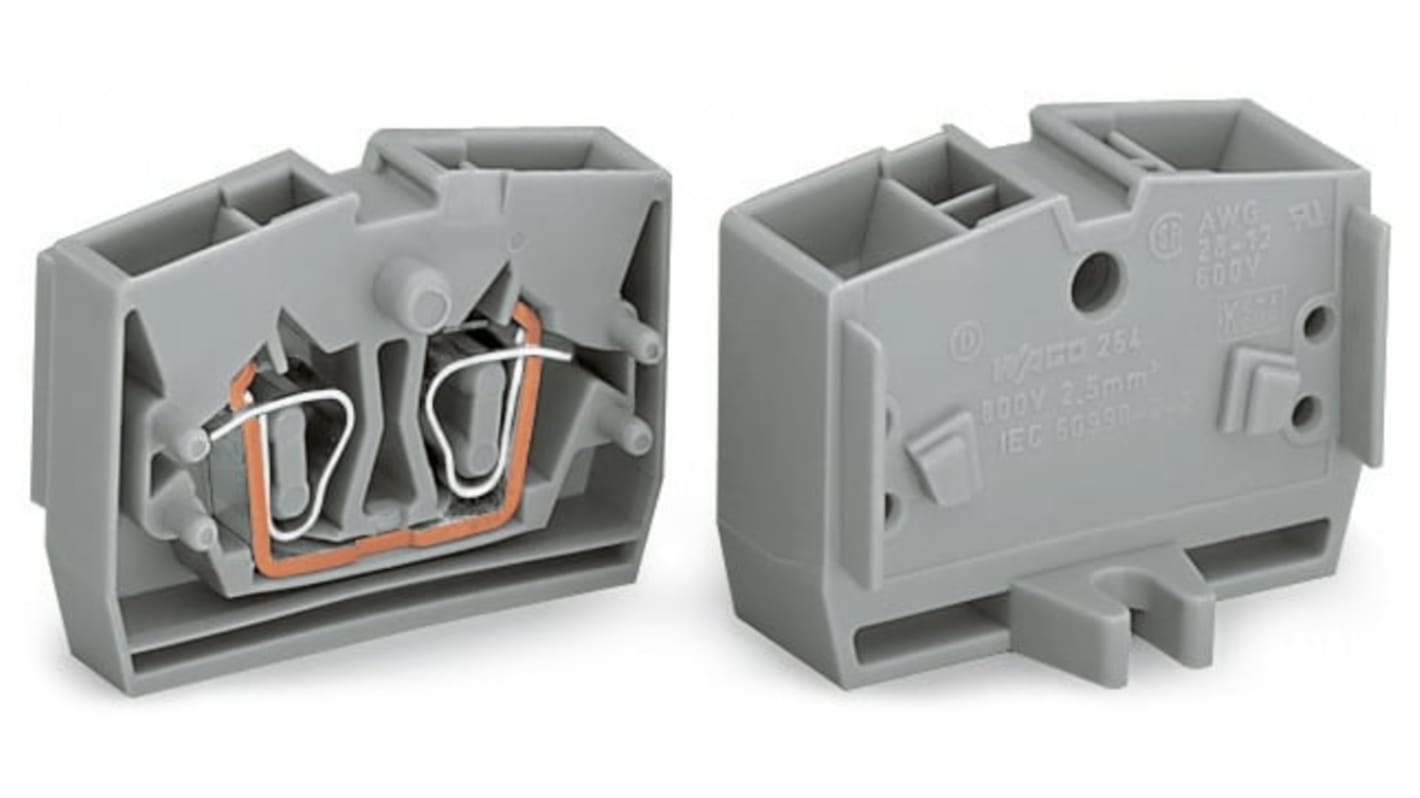

WAGO 264 Series Terminal Block, 1-Way, 12AWG, 28 AWG Wire, 24A Cage Clamp
- RS Stock No.:
- 271-0267
- Mfr. Part No.:
- 264-356
- Brand:
- WAGO
Subtotal (1 box of 100 units)*
£108.07
(exc. VAT)
£129.68
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 17 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £108.07 | £1.081 |
*price indicative
- RS Stock No.:
- 271-0267
- Mfr. Part No.:
- 264-356
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Ways | 1 | |
| Product Type | Terminal Block | |
| Current | 24A | |
| Wire Size | 12, 28AWG | |
| Mount Type | DIN Rail | |
| Material | Polyamide 66 | |
| Contact Material | Copper | |
| Voltage | 600V | |
| Series | 264 | |
| Colour | Orange | |
| Cable CSA | 2.5mm² | |
| Minimum Operating Temperature | -60°C | |
| Termination Type | Cage Clamp | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | RoHS | |
| Hazardous Area Certification | NO | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Ways 1 | ||
Product Type Terminal Block | ||
Current 24A | ||
Wire Size 12, 28AWG | ||
Mount Type DIN Rail | ||
Material Polyamide 66 | ||
Contact Material Copper | ||
Voltage 600V | ||
Series 264 | ||
Colour Orange | ||
Cable CSA 2.5mm² | ||
Minimum Operating Temperature -60°C | ||
Termination Type Cage Clamp | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals RoHS | ||
Hazardous Area Certification NO | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CH
The WAGO Standard terminal blocks have a broad range of applications ranging from sound equipment to electrical installations. These terminal blocks typically have several screw terminals to connect several wires on either end. They are often used in surge protectors.
4 conductor centre terminal block
Polyamide insulation material
0.114 MJ fire load
Halogen free
