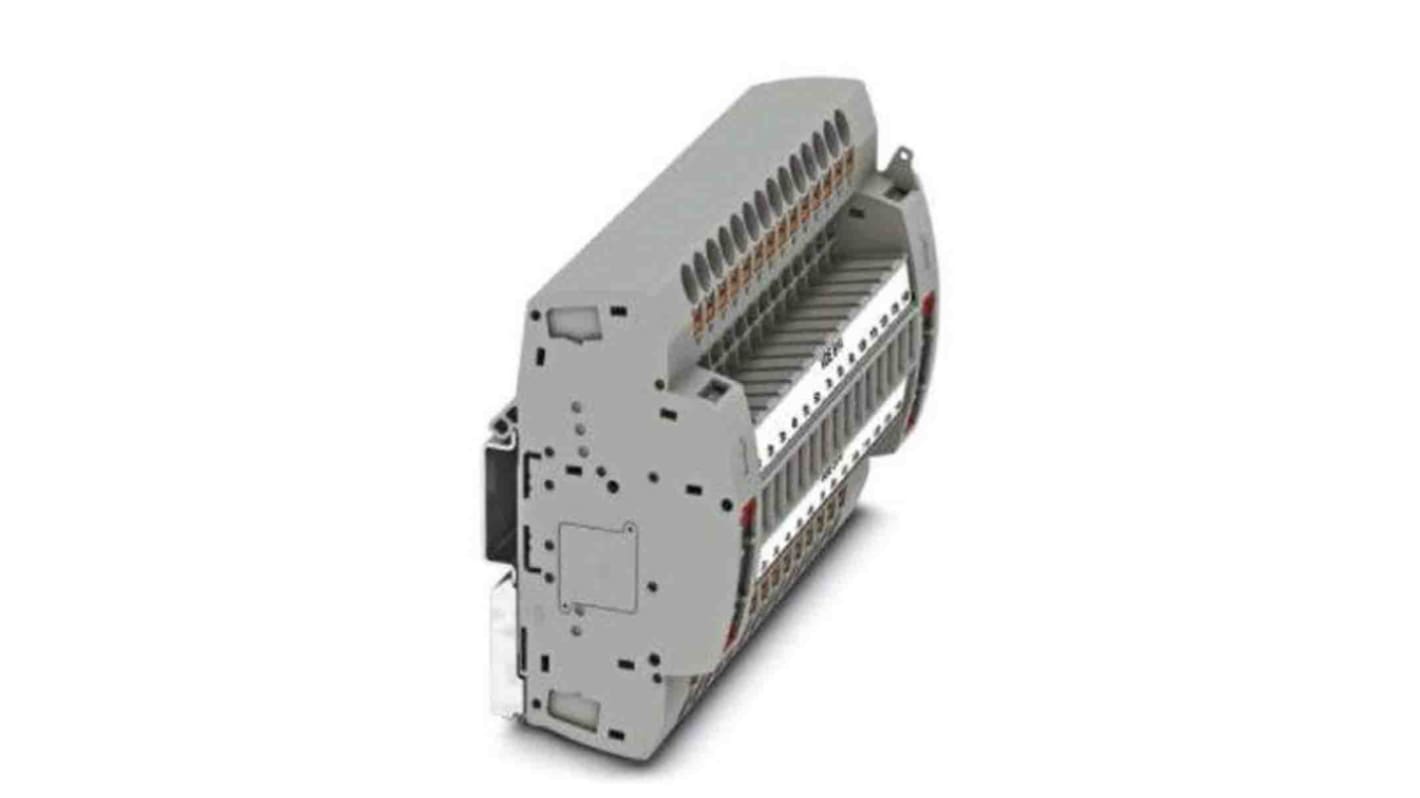

Phoenix Contact PTRE Series Non-Fused Terminal Block, 28-Way, 20AWG, 8 AWG Wire, 30A Push-in
- RS Stock No.:
- 201-4841
- Mfr. Part No.:
- 3069453
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£331.05
(exc. VAT)
£397.26
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £331.05 |
*price indicative
- RS Stock No.:
- 201-4841
- Mfr. Part No.:
- 3069453
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Non-Fused Terminal Block | |
| Number of Ways | 28 | |
| Current | 30A | |
| Wire Size | 20, 8AWG | |
| Mount Type | DIN Rail | |
| Fused | No | |
| Contact Material | Polyamide | |
| Material | Polyamide | |
| Voltage | 400V | |
| Pitch | 8.2mm | |
| Series | PTRE | |
| Wire Protection | Yes | |
| Cable CSA | 0.5, 10mm² | |
| Colour | Grey | |
| Minimum Operating Temperature | -60°C | |
| Gender | Female | |
| Termination Type | Push-in | |
| Enclosed | No | |
| Maximum Operating Temperature | 130°C | |
| Standards/Approvals | No | |
| Hazardous Area Certification | NO | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Non-Fused Terminal Block | ||
Number of Ways 28 | ||
Current 30A | ||
Wire Size 20, 8AWG | ||
Mount Type DIN Rail | ||
Fused No | ||
Contact Material Polyamide | ||
Material Polyamide | ||
Voltage 400V | ||
Pitch 8.2mm | ||
Series PTRE | ||
Wire Protection Yes | ||
Cable CSA 0.5, 10mm² | ||
Colour Grey | ||
Minimum Operating Temperature -60°C | ||
Gender Female | ||
Termination Type Push-in | ||
Enclosed No | ||
Maximum Operating Temperature 130°C | ||
Standards/Approvals No | ||
Hazardous Area Certification NO | ||
The Phoenix Contact PTRE grey NS 35/7,5, NS 35/15 mounted test terminal strip with 28 connections, 146.7mm width and VDE coded B14 is designed for the most stringent demands, and the use of high-quality materials ensures the transmission of signal currents, even after multiple actuations.
Space saving, thanks to compact, modular test terminal strips
Maximum safety with leading and automatic transformer short circuit
This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
