WAGO 221 Series Splice Connector, 10-Way, 12AWG, 24 AWG Wire, 32A Cage Clamp
- RS Stock No.:
- 676-018
- Mfr. Part No.:
- 221-420
- Brand:
- WAGO
Bulk discount available
Subtotal (1 pack of 15 units)*
£19.59
(exc. VAT)
£23.51
(inc. VAT)
Stock information currently inaccessible - Please check back later
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 - 4 | £19.59 | £1.306 |
| 5 + | £18.02 | £1.201 |
*price indicative
- RS Stock No.:
- 676-018
- Mfr. Part No.:
- 221-420
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | Splice Connector | |
| Number of Ways | 10 | |
| Current | 32A | |
| Wire Size | 12, 24AWG | |
| Contact Material | Copper | |
| Material | Polycarbonate | |
| Voltage | 450V | |
| Series | 221 | |
| Cable CSA | 0.2, 4mm² | |
| Colour | Transparent | |
| Termination Type | Cage Clamp | |
| Maximum Operating Temperature | 85°C | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | cULus_Listed_667F, EN 60998, ENEC, IEC/EN 60664, UL 486C | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type Splice Connector | ||
Number of Ways 10 | ||
Current 32A | ||
Wire Size 12, 24AWG | ||
Contact Material Copper | ||
Material Polycarbonate | ||
Voltage 450V | ||
Series 221 | ||
Cable CSA 0.2, 4mm² | ||
Colour Transparent | ||
Termination Type Cage Clamp | ||
Maximum Operating Temperature 85°C | ||
Hazardous Area Certification NO | ||
Standards/Approvals cULus_Listed_667F, EN 60998, ENEC, IEC/EN 60664, UL 486C | ||
- COO (Country of Origin):
- DE

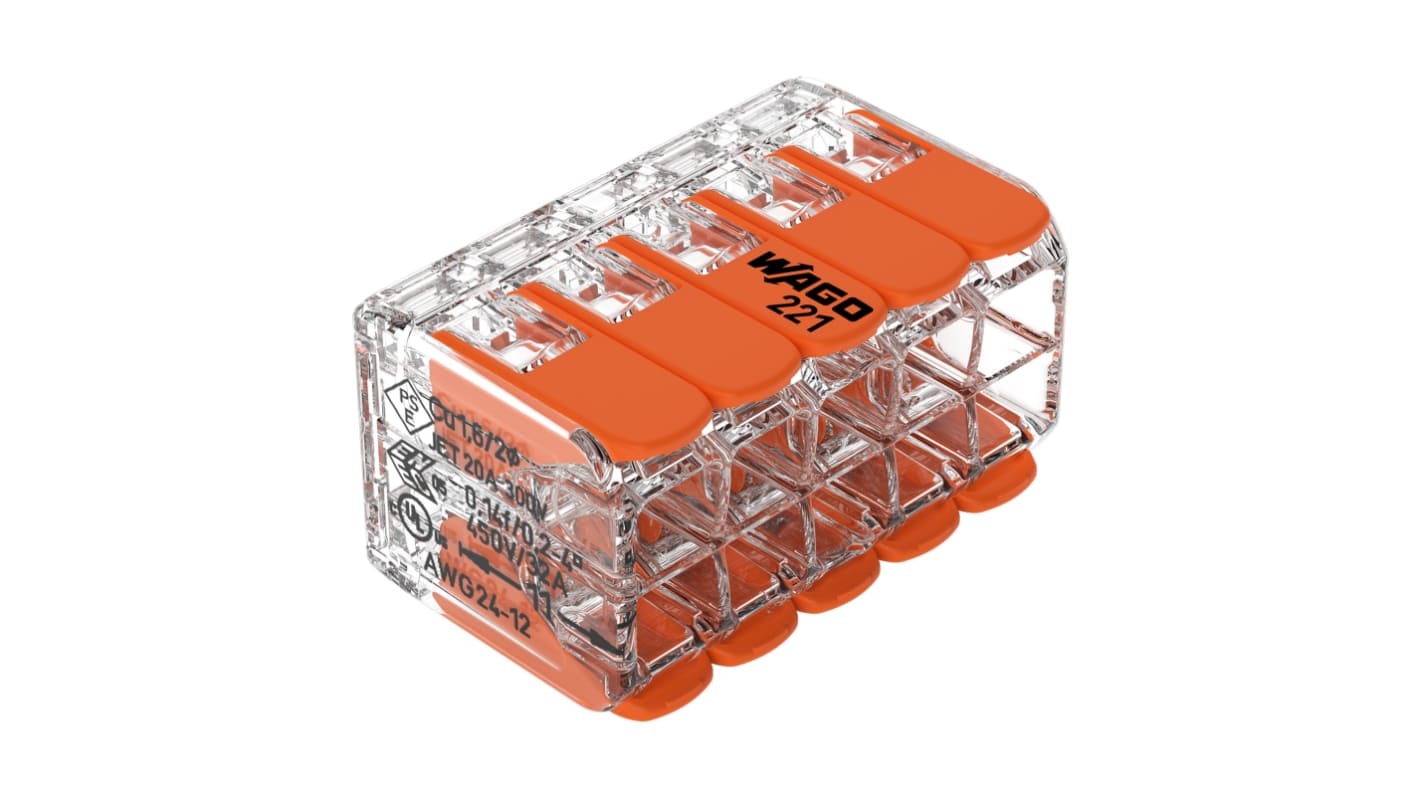

Splicing connector with levers;
The Wago Splicing connector with levers, designed for quick and secure wire connections. It supports all conductor types up to 4 mm² and features a transparent housing for easy visual inspection. With a maximum surrounding air temperature of 85°C, it ensures reliable performance in electrical installations.
UL94 V2 flammability class
RoHS compliant
cULus approved
