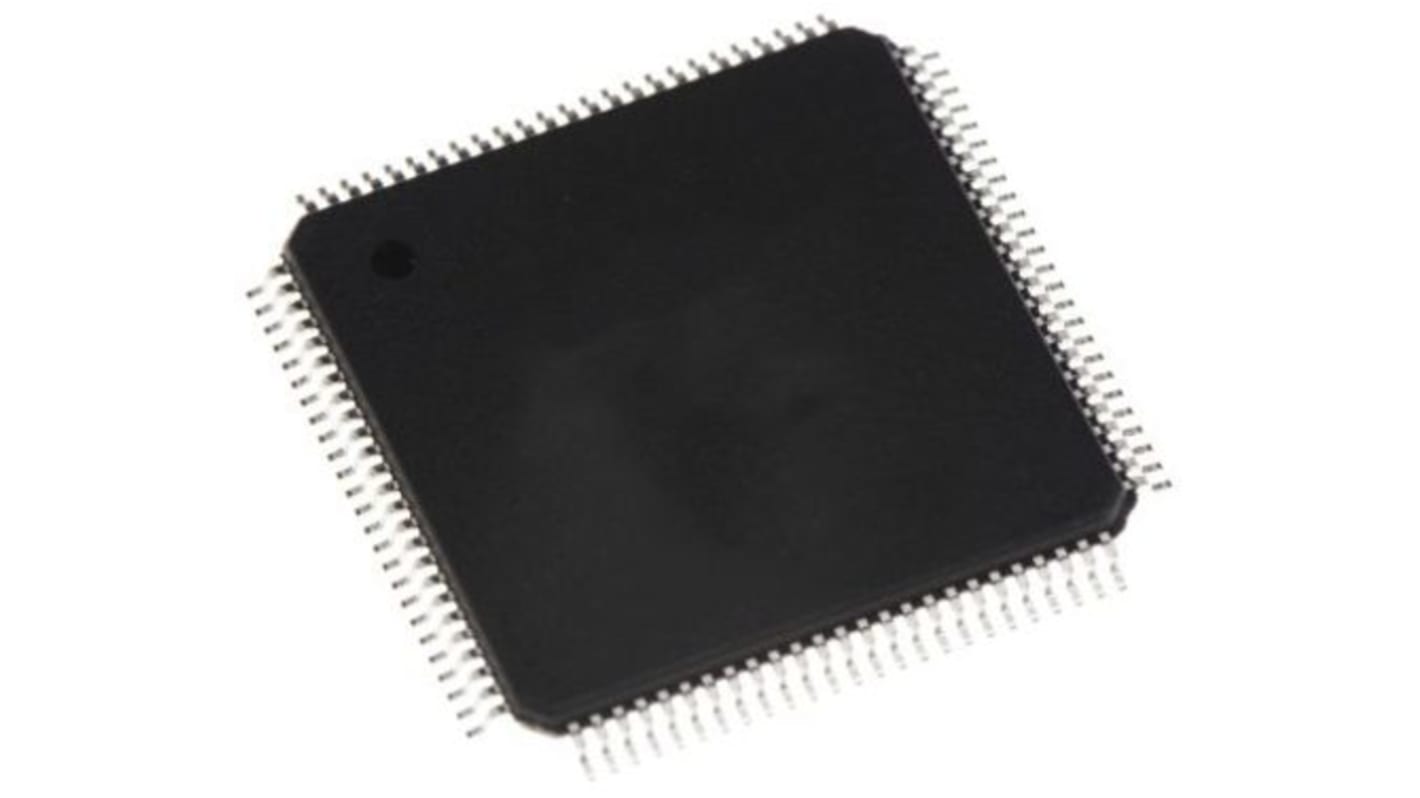

Renesas Electronics SRAM, 70V27L15PFG- 512kbit
- RS Stock No.:
- 217-3660
- Mfr. Part No.:
- 70V27L15PFG
- Brand:
- Renesas Electronics
Save 12% when you buy 50 units
Subtotal (1 unit)*
£89.79
(exc. VAT)
£107.75
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 12 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £89.79 |
| 5 - 9 | £85.65 |
| 10 - 24 | £83.23 |
| 25 - 49 | £80.36 |
| 50 + | £78.29 |
*price indicative
- RS Stock No.:
- 217-3660
- Mfr. Part No.:
- 70V27L15PFG
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Memory Size | 512kbit | |
| Organisation | 32K x 16 | |
| Number of Words | 32K | |
| Number of Bits per Word | 16bit | |
| Maximum Random Access Time | 15ns | |
| Address Bus Width | 32bit | |
| Low Power | Yes | |
| Timing Type | Asynchronous | |
| Mounting Type | Surface Mount | |
| Package Type | TQFP-100 | |
| Pin Count | 100 | |
| Dimensions | 14 x 14 x 1.4mm | |
| Maximum Operating Supply Voltage | 3.6 V | |
| Height | 1.4mm | |
| Minimum Operating Temperature | -0 °C | |
| Width | 14mm | |
| Maximum Operating Temperature | +70 °C | |
| Length | 14mm | |
| Minimum Operating Supply Voltage | 3 V | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Memory Size 512kbit | ||
Organisation 32K x 16 | ||
Number of Words 32K | ||
Number of Bits per Word 16bit | ||
Maximum Random Access Time 15ns | ||
Address Bus Width 32bit | ||
Low Power Yes | ||
Timing Type Asynchronous | ||
Mounting Type Surface Mount | ||
Package Type TQFP-100 | ||
Pin Count 100 | ||
Dimensions 14 x 14 x 1.4mm | ||
Maximum Operating Supply Voltage 3.6 V | ||
Height 1.4mm | ||
Minimum Operating Temperature -0 °C | ||
Width 14mm | ||
Maximum Operating Temperature +70 °C | ||
Length 14mm | ||
Minimum Operating Supply Voltage 3 V | ||
The Renesas Electronics 70V27 series high-speed 32K x 16 Dual-Port Static RAM designed to be used as a stand-alone Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 32-bit or wider memory system applications. It has 100 lead count and has TQFP package type. The SRAM has C temperature grade.
Separate upper-byte and lower-byte control for bus matching capability
Dual chip enables allow for depth expansion without external logic
70V27 easily expands data bus width to 32 bits or more
Busy and Interrupt Flags
Dual chip enables allow for depth expansion without external logic
70V27 easily expands data bus width to 32 bits or more
Busy and Interrupt Flags
