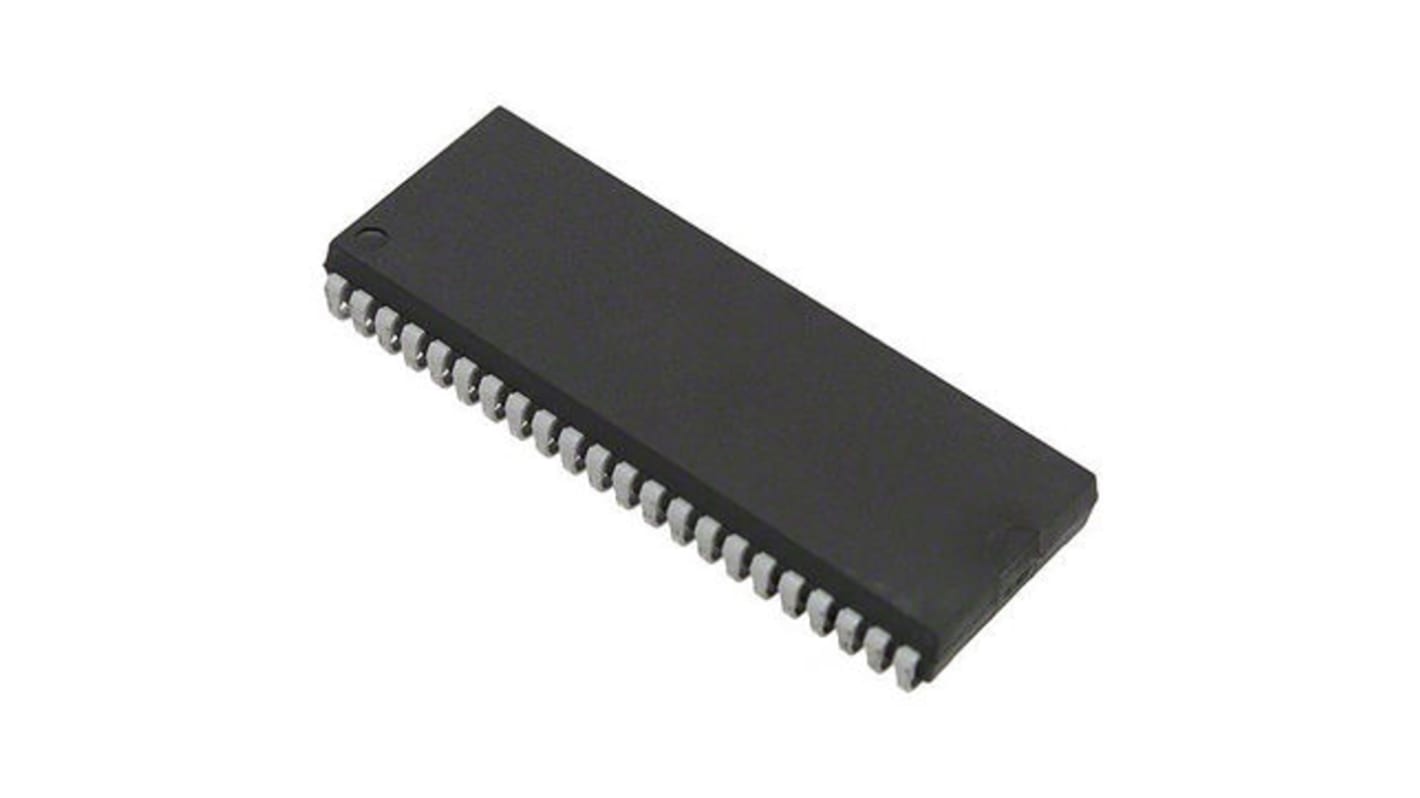

Infineon SRAM Memory Chip, CY7C1021D-10VXI- 1Mbit
- RS Stock No.:
- 194-8911
- Mfr. Part No.:
- CY7C1021D-10VXI
- Brand:
- Infineon
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 194-8911
- Mfr. Part No.:
- CY7C1021D-10VXI
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Memory Size | 1Mbit | |
Organisation | 64k x 16 bit | |
Number of Words | 64k | |
Number of Bits per Word | 16bit | |
Maximum Random Access Time | 10ns | |
Address Bus Width | 16bit | |
Clock Frequency | 1MHz | |
Timing Type | Asynchronous | |
Mounting Type | Surface Mount | |
Package Type | SOJ | |
Pin Count | 44 | |
Dimensions | 1.13 x 0.405 x 0.12in | |
Height | 3.05mm | |
Maximum Operating Supply Voltage | 5 V | |
Length | 28.7mm | |
Maximum Operating Temperature | +85 °C | |
Width | 10.29mm | |
Minimum Operating Temperature | -40 °C | |
Select all | ||
---|---|---|
Brand Infineon | ||
Memory Size 1Mbit | ||
Organisation 64k x 16 bit | ||
Number of Words 64k | ||
Number of Bits per Word 16bit | ||
Maximum Random Access Time 10ns | ||
Address Bus Width 16bit | ||
Clock Frequency 1MHz | ||
Timing Type Asynchronous | ||
Mounting Type Surface Mount | ||
Package Type SOJ | ||
Pin Count 44 | ||
Dimensions 1.13 x 0.405 x 0.12in | ||
Height 3.05mm | ||
Maximum Operating Supply Voltage 5 V | ||
Length 28.7mm | ||
Maximum Operating Temperature +85 °C | ||
Width 10.29mm | ||
Minimum Operating Temperature -40 °C | ||
This device has an automatic power down feature that significantly reduces power consumption when deselected. The input and output pins (I/O0 through I/O15) are placed in a high impedance state when the device is deselected (CE HIGH), outputs are disabled (OE HIGH), BHE and BLE are disabled (BHE, BLE HIGH), or during a write operation (CE LOW and WE LOW). Write to the device by taking Chip Enable (CE) and Write Enable (WE) inputs LOW. If Byte Low Enable (BLE) is LOW, then data from I/O pins (I/O0 through I/O7), is written into the location specified on the address pins (A0 through A15). If Byte High Enable (BHE) is LOW, then data from I/O pins (I/O8 through I/O15) is written into the location specified on the address pins (A0 through A15).
