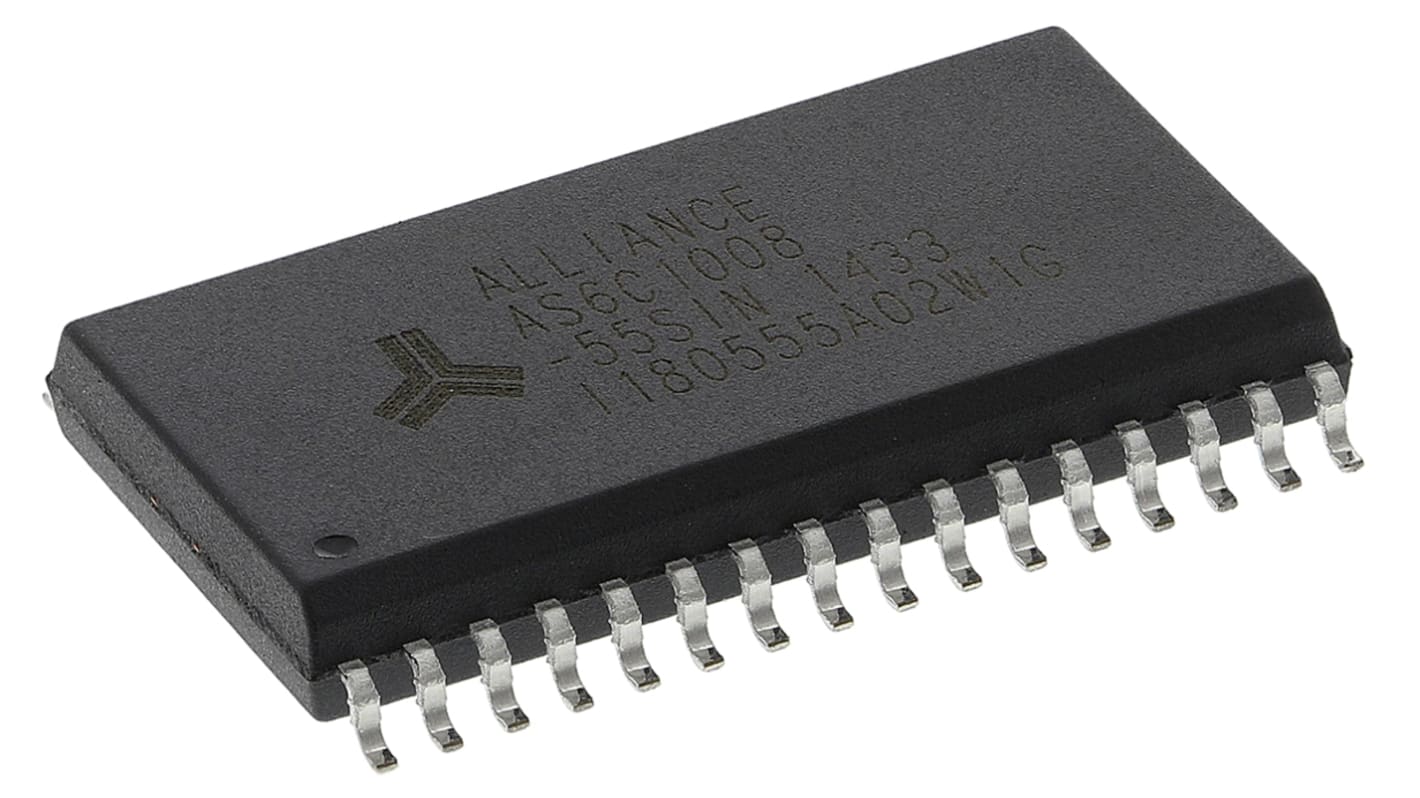

Alliance Memory SRAM Memory, AS6C1008-55SIN- 1Mbit

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Static RAM, Alliance Memory

SRAM (Static Random Access Memory)

Specifications
Attribute Value
Memory Size 1Mbit
Organisation 128K words x 8 bit
Number of Words 128K
Number of Bits per Word 8bit
Maximum Random Access Time 55ns
Address Bus Width 17bit
Low Power Yes
Timing Type Asynchronous
Mounting Type Surface Mount
Package Type SOP
Pin Count 32
Dimensions 20.75 x 11.3 x 2.82mm
Height 2.82mm
Maximum Operating Supply Voltage 5.5 V
Length 20.75mm
Maximum Operating Temperature +85 °C
Minimum Operating Temperature -40 °C
Minimum Operating Supply Voltage 2.7 V
Width 11.3mm
Available to back order for despatch 16/03/2020
Price Each (In a Tube of 22)
£ 1.529
(exc. VAT)
£ 1.835
(inc. VAT)
Units
Per unit
Per Tube*
22 - 88
£1.529
£33.638
110 - 198
£1.324
£29.128
220 - 528
£1.256
£27.632
550 - 1078
£1.194
£26.268
1100 +
£1.135
£24.97
*price indicative
