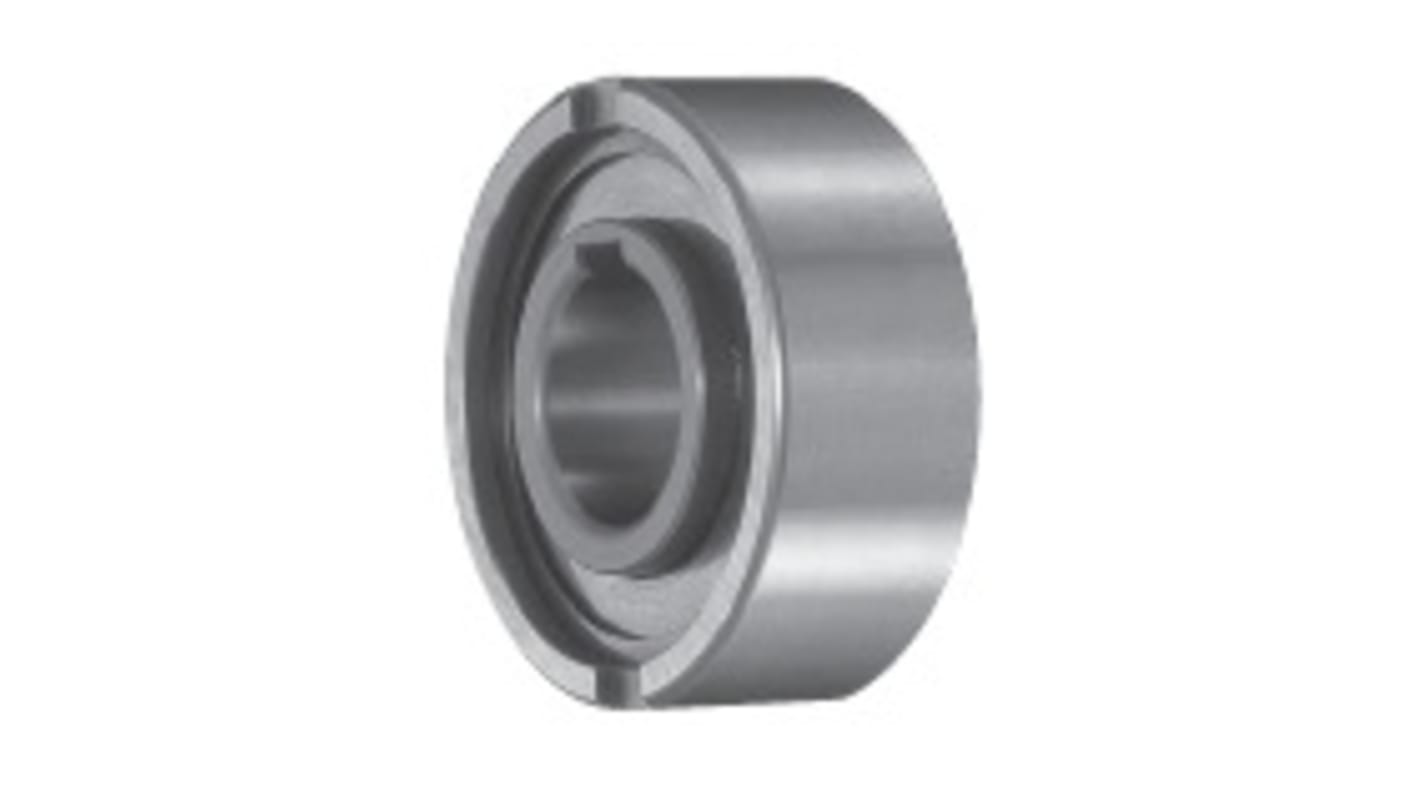

Tsubaki TFS45 Cam Clutch 45 mm ID 100 mm OD 36 mm Race Width
- RS Stock No.:
- 184-5780
- Mfr. Part No.:
- TFS45
- Brand:
- Tsubaki
Subtotal (1 unit)*
£415.43
(exc. VAT)
£498.52
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £415.43 |
*price indicative
- RS Stock No.:
- 184-5780
- Mfr. Part No.:
- TFS45
- Brand:
- Tsubaki
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Tsubaki | |
| Product Type | Cam Clutch | |
| Torque Rating | 756Nm | |
| Inside Diameter | 45 mm | |
| Outside Diameter | 100 mm | |
| Race Width | 36mm | |
| Series | TFS | |
| Keyway Type | Inner | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Tsubaki | ||
Product Type Cam Clutch | ||
Torque Rating 756Nm | ||
Inside Diameter 45 mm | ||
Outside Diameter 100 mm | ||
Race Width 36mm | ||
Series TFS | ||
Keyway Type Inner | ||
Standards/Approvals No | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- JP
TFS Series Cam Clutch is a sprag type clutch designed for press fit installation. Sprag type designs typically have a higher torque capacity than a similarly sized ramp & roller type clutch. TFS has two vertical keyways on the outer race to assist with locating. Outside dimensions are the same as Series 63 ball bearings. This design is ideal for general inner or outer race overrunning applications. Since the TFS Series does not include an integral bearing, installing the TFS Cam Clutch next to a bearing which handles both the axial and radial loads is the typical application. TFS Series ships pre-lubricated with oil.
