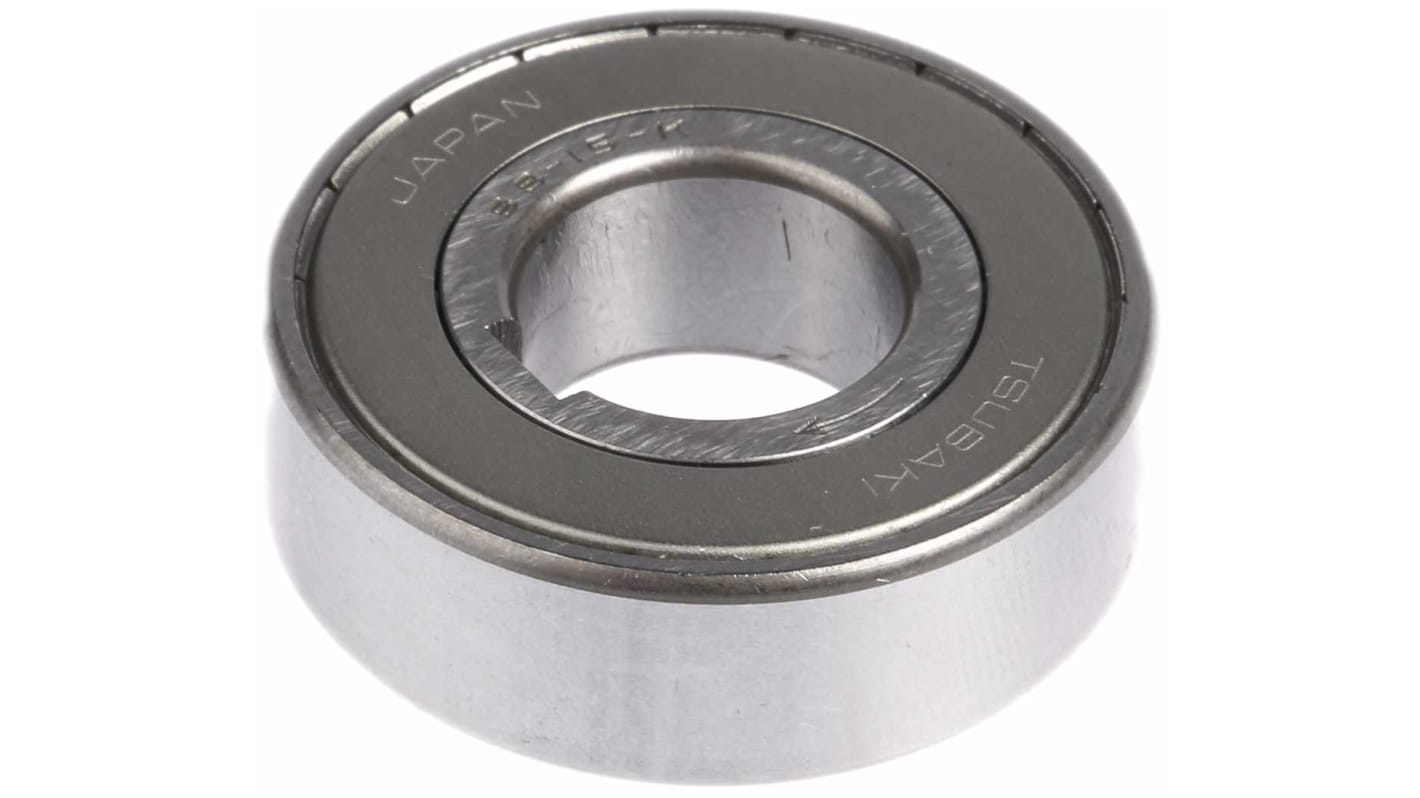

Tsubaki BB15-1K-K Cam Clutch 15mm I.D., 35mm O.D., 11mm Race Width
- RS Stock No.:
- 184-5743
- Mfr. Part No.:
- BB15-1K-K
- Brand:
- Tsubaki
Bulk discount available
Subtotal (1 unit)*
£58.58
(exc. VAT)
£70.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £58.58 |
5 + | £56.24 |
*price indicative
- RS Stock No.:
- 184-5743
- Mfr. Part No.:
- BB15-1K-K
- Brand:
- Tsubaki
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Tsubaki | |
Inside Diameter | 15mm | |
Outside Diameter | 35mm | |
Torque | 29Nm | |
Race Width | 11mm | |
Series | BB-1K-K | |
Over-running Speed | 2000 (Outer Race) RPM, 3600 (Inner Race) RPM | |
Dynamic Load Rating | 5950N | |
Static Load Rating | 3230N | |
Keyway | Inner Race | |
Select all | ||
---|---|---|
Brand Tsubaki | ||
Inside Diameter 15mm | ||
Outside Diameter 35mm | ||
Torque 29Nm | ||
Race Width 11mm | ||
Series BB-1K-K | ||
Over-running Speed 2000 (Outer Race) RPM, 3600 (Inner Race) RPM | ||
Dynamic Load Rating 5950N | ||
Static Load Rating 3230N | ||
Keyway Inner Race | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- JP
The BB Series functions both as an one-way clutch and a bearing within its compact body, allowing you to use your space more effectively. Capable of transmitting larger torque than shell design roller clutches by arranging the number of cams between the inner and outer races.
Compact Design
Easy Installation
Increased Torque Capacity
Available with an oil seal
Easy Installation
Increased Torque Capacity
Available with an oil seal
