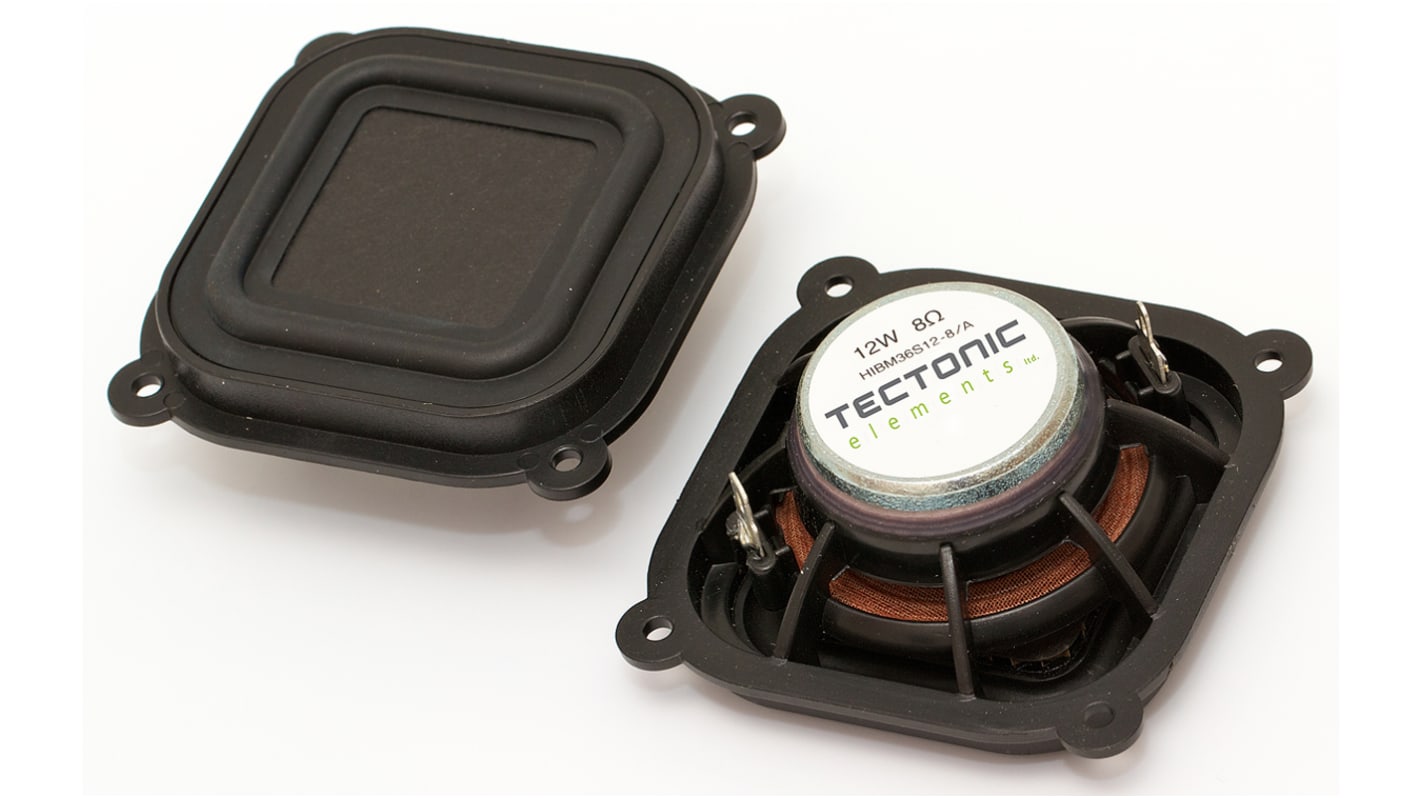

Tectonic 12W nom Full Range, 8Ω, 80 Hz → 20 kHz
- RS Stock No.:
- 876-5294
- Mfr. Part No.:
- TEBM36S12-8/A
- Brand:
- Tectonic
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£161.34
(exc. VAT)
£193.61
(inc. VAT)
- RS Stock No.:
- 876-5294
- Mfr. Part No.:
- TEBM36S12-8/A
- Brand:
- Tectonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Tectonic | |
| Impedance | 8Ω | |
| Nominal Rated Power | 12W | |
| Frequency Type | Full Range | |
| Driver Shape | Square | |
| Frequency Response | 80 Hz → 20 kHz | |
| Length | 65mm | |
| Width | 65mm | |
| Depth | 29.7mm | |
| Weight | 88.5g | |
| Minimum Frequency Response | 80 Hz | |
| Maximum Rated Power | >24W | |
| Maximum Frequency Response | 20 kHz | |
| Select all | ||
|---|---|---|
Brand Tectonic | ||
Impedance 8Ω | ||
Nominal Rated Power 12W | ||
Frequency Type Full Range | ||
Driver Shape Square | ||
Frequency Response 80 Hz → 20 kHz | ||
Length 65mm | ||
Width 65mm | ||
Depth 29.7mm | ||
Weight 88.5g | ||
Minimum Frequency Response 80 Hz | ||
Maximum Rated Power >24W | ||
Maximum Frequency Response 20 kHz | ||
- COO (Country of Origin):
- CN
Tectonic Elements BMR® Drivers
The Tectonic Elements range of BMR® drivers are unique full-range audio loudspeaker units. Exhibiting an extended frequency response and wider directivity when compared with typical conventional drive units. The benefits of Tectonic Elements bending-wave technology and pistonic mode of operation combine to produce an ideal solution for audio applications that requires a full-range, high performance compact acoustic solution. These compact drive units are available in various form factors. And are ideally suited for a wide range of markets including consumer electronics, professional audio, automotive and industrial.
Features:
Full range, extended frequency response
Wide sound dispersion
Advanced magnet motor systems
Compact dimensions
Square, circular, and rectangular form factors available
Patented technology
Some units available in 4 Ω or 8 Ω impedance
Wide sound dispersion
Advanced magnet motor systems
Compact dimensions
Square, circular, and rectangular form factors available
Patented technology
Some units available in 4 Ω or 8 Ω impedance
Typical Applications:
Table radios
Sound bars
Home Theatre & Hi-Fi
TV speakers
Portable speakers
Wireless speakers
Sound bars
Home Theatre & Hi-Fi
TV speakers
Portable speakers
Wireless speakers
