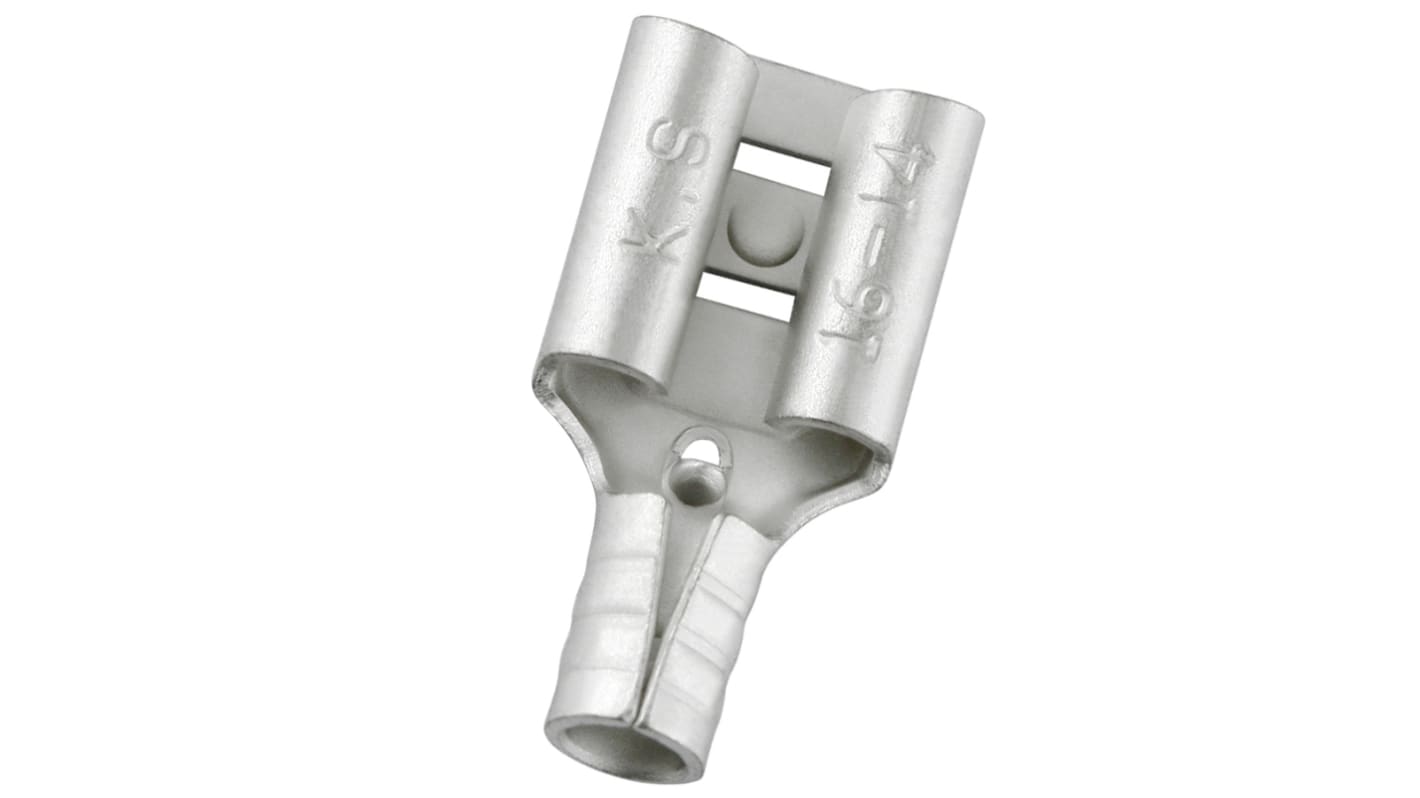

RS PRO Uninsulated Female Spade Connector, Receptacle, 0.8 x 6.35mm Tab Size, 1.5mm² to 2.5mm²
- RS Stock No.:
- 178-8318
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 100 units)*
£5.10
(exc. VAT)
£6.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4,200 unit(s) ready to ship
- Plus 2,100 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 100 - 900 | £0.051 | £5.10 |
| 1000 - 1900 | £0.046 | £4.60 |
| 2000 - 4900 | £0.042 | £4.20 |
| 5000 - 9900 | £0.039 | £3.90 |
| 10000 + | £0.036 | £3.60 |
*price indicative
- RS Stock No.:
- 178-8318
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Spade Connector Type | Receptacle | |
| Type | Receptacle | |
| Gender | Female | |
| Minimum Wire Size mm² | 1.5mm² | |
| Maximum Wire Size mm² | 2.5mm² | |
| Tab Size | 0.8 x 6.35mm | |
| Tab Width | 6.35mm | |
| Tab Thickness | 0.8mm | |
| Insulation | Uninsulated | |
| Maximum Wire Size AWG | 14AWG | |
| Minimum Wire Size AWG | 16AWG | |
| Termination Method | Crimp | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Wire Size | 1.5 → 2.5 mm², 16 → 14 AWG | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Unshrouded | |
| Overall Length | 15.2mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Spade Connector Type Receptacle | ||
Type Receptacle | ||
Gender Female | ||
Minimum Wire Size mm² 1.5mm² | ||
Maximum Wire Size mm² 2.5mm² | ||
Tab Size 0.8 x 6.35mm | ||
Tab Width 6.35mm | ||
Tab Thickness 0.8mm | ||
Insulation Uninsulated | ||
Maximum Wire Size AWG 14AWG | ||
Minimum Wire Size AWG 16AWG | ||
Termination Method Crimp | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Wire Size 1.5 → 2.5 mm², 16 → 14 AWG | ||
Orientation Straight | ||
Shrouded/Unshrouded Unshrouded | ||
Overall Length 15.2mm | ||
- COO (Country of Origin):
- TW
RS PRO NON-INSULATED FEMALE TERMINALS
