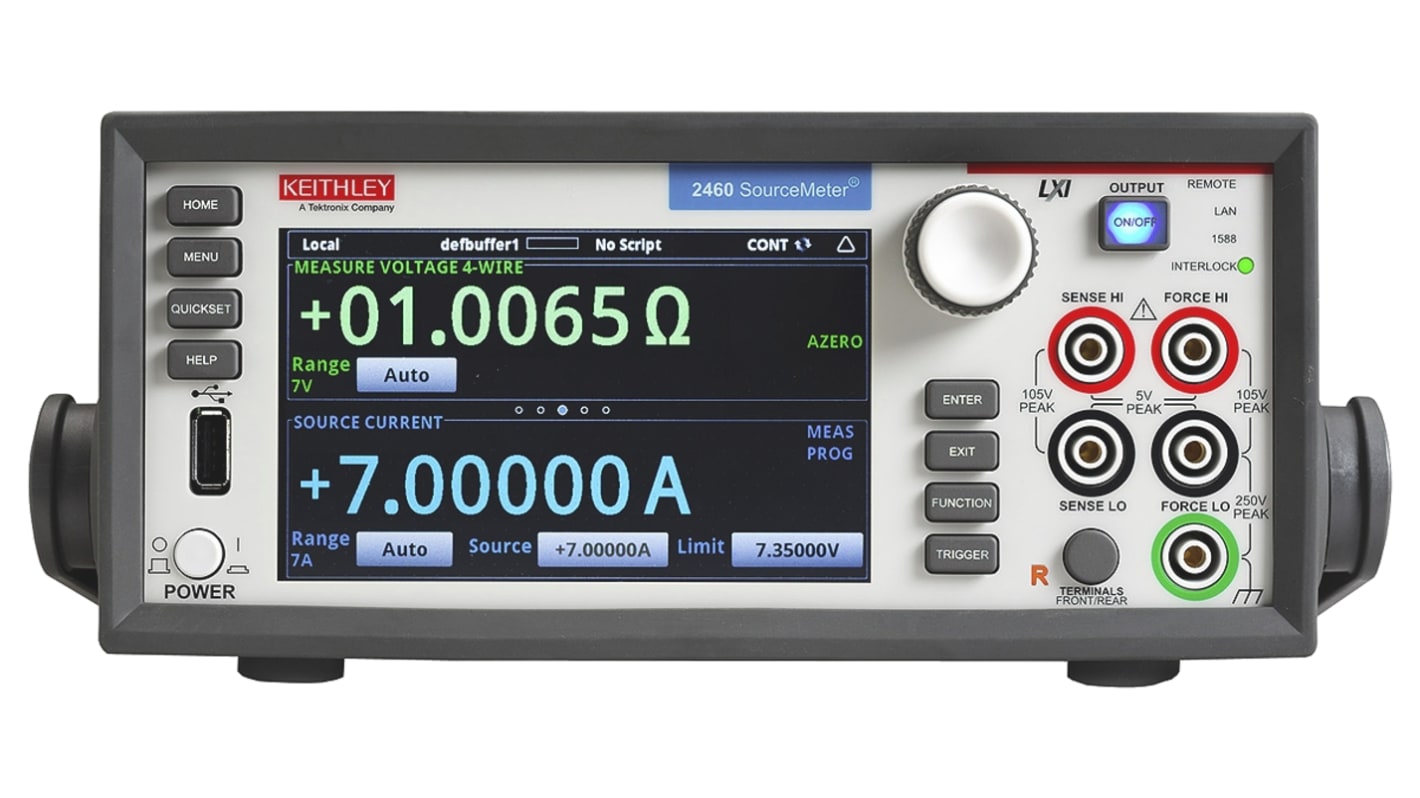

The 2460, Keithley’s next-generation SourceMeter® source measure unit (SMU), a 105V, 7A, 100W instrument, truly brings Ohm’s law (current, voltage, and resistance) testing right to your fingertips. Its innovative graphical user interface (GUI) and advanced, capacitive touchscreen technology allow intuitive usage and minimize the learning curve to enable engineers and scientists to learn faster, work smarter, and invent easier. With its 7A DC and pulse current capability, the 2460 is optimized for characterizing and testing high power materials, devices, and modules such as silicon carbide (SiC), gallium nitride (GaN), DC-DC converters, power MOSFETs, solar cells and panels, LEDs and lighting systems, electrochemical cells and batteries, and much more. These new capabilities, combined with Keithley’s decades of expertise in developing high precision, high accuracy SMU instruments, will make the 2460 a “go-to instrument” for high current applications in the lab and in the rack for years to come.

• One tightly coupled instrument that combines capabilities from analysers, curve tracers, and I-V systems at a fraction of their cost
• Wide coverage up to 105 V, 7 A DC/7 A pulse, 100 W max.
• Five-inch, high resolution capacitive touchscreen GUI
• 0.012% basic measure accuracy with 6-digit resolution
• Source and sink (4-quadrant) operation
• Four “Quickset” modes for fast setup and measurements
• Context-sensitive help function
• Front panel input banana jacks

SMU Accessories
Test Leads and Probes:
RS Stock No. 2409950 5805-12 (Kelvin 4-wire Spring Loaded Probes)
RS Stock No. 2409951 5808 (Single Pin Kelvin Probes)

Software Options
Kickstart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart

Cable and Interface Accessories
RS Stock No. 7600341 KPCI-488LPA (Low Profile IEEE-488 Interface Board)
RS Stock No. 7600345 KUSB-488B (IEEE-488.2 USB-TO-GPIB Interface Adapter)

KickStart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart

For full list of accessories, application and software options, please see datasheet

Keep your instrument up to date and to enhance the functionality, please visit Tektronix website for the latest software updates at https://www.tek.com/en/products/software

Automotive
Battery Testing
Embedded Design
Power Measurements and Analysis
Education
Manufacturing test/troubleshooting

Keithley Power Supplies
