Eaton Red Sounder Beacon, 9 → 15 V dc, 18 → 28 V dc, IP65, Wall Mount, 106dB at 1 Metre
- RS Stock No.:
- 824-6112
- Distrelec Article No.:
- 304-01-724
- Mfr. Part No.:
- 8500025FULL-0255X
- Brand:
- Eaton
Subtotal (1 unit)*
£71.35
(exc. VAT)
£85.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 81 unit(s) ready to ship
- Plus 53 unit(s) ready to ship from another location
- Plus 55 unit(s) shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £71.35 |
*price indicative
- RS Stock No.:
- 824-6112
- Distrelec Article No.:
- 304-01-724
- Mfr. Part No.:
- 8500025FULL-0255X
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Supply Voltage | 9 → 15 V dc, 18 → 28 V dc | |
Lens Colour | Red | |
Mounting Style | Wall Mount | |
Current Type | DC | |
Light Effect | Flashing | |
Sounder Type | Electronic | |
Decibels at 1 Metre | 106dB | |
Bulb Type | LED | |
Housing Colour | Red | |
Maximum Decibel | 106dB | |
IP Rating | IP65 | |
Number Of Tones | 3 | |
Model Number | ROLP/R1/LX-W/RF E38 | |
Maximum Temperature | +75°C | |
Minimum Temperature | -25°C | |
Special Features | EN54-3 | |
Select all | ||
---|---|---|
Brand Eaton | ||
Supply Voltage 9 → 15 V dc, 18 → 28 V dc | ||
Lens Colour Red | ||
Mounting Style Wall Mount | ||
Current Type DC | ||
Light Effect Flashing | ||
Sounder Type Electronic | ||
Decibels at 1 Metre 106dB | ||
Bulb Type LED | ||
Housing Colour Red | ||
Maximum Decibel 106dB | ||
IP Rating IP65 | ||
Number Of Tones 3 | ||
Model Number ROLP/R1/LX-W/RF E38 | ||
Maximum Temperature +75°C | ||
Minimum Temperature -25°C | ||
Special Features EN54-3 | ||
- COO (Country of Origin):
- GB

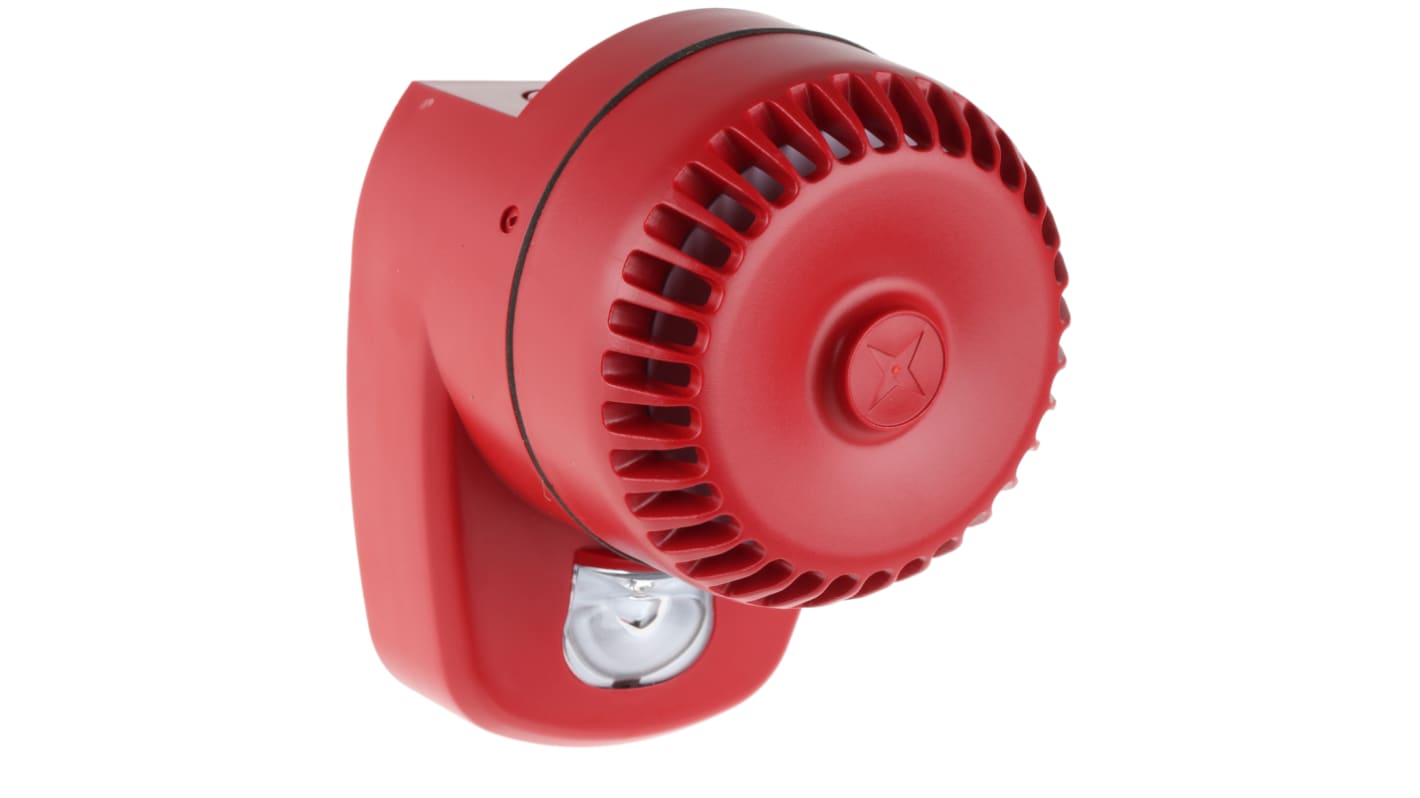

Fulleon RoLP LX Wall Sounder Beacon
The RoLP LX Wall sounder beacon from Fulleon is ideal for applications that require both a visual and audible alarm. This sounder beacon is a reliable, high performing VAD (Visual Alarm Device) that is certified to EN54-23 and is designed around the popular Roshni product platform. It is recommended for wall mounting and requires only one installation point. As this unit includes both a sounder and a beacon it is considered a dual alarm device and is suitable for use as a fire alarm sounder in conventional fire alarm systems. It is also available as a base only unit, which can be used with any standard RoLP sounder, including the high output RoLP Maxi.
Features and Benefits
• Sounder and beacon device suitable for fire signalling systems
• LED technology for long life and low current consumption
• Up to 7.5m coverage volume (switchable to 2.5m)
• 0.5 or 1Hz flash rate (switch to 0.5Hz to reduce current consumption)
• Delivering up to 106 dB (A) sound output
• IP65 protection
• White or red body and white or red lens options
• Locking base
Note: Industry recognised product - LX base retrofits existing Roshni, RoLP & RoLP Maxi.
Standards: EN54-23, AFNOR, CNBoP and AS certifications and models specific to NF and VDS approvals.
• LED technology for long life and low current consumption
• Up to 7.5m coverage volume (switchable to 2.5m)
• 0.5 or 1Hz flash rate (switch to 0.5Hz to reduce current consumption)
• Delivering up to 106 dB (A) sound output
• IP65 protection
• White or red body and white or red lens options
• Locking base
Note: Industry recognised product - LX base retrofits existing Roshni, RoLP & RoLP Maxi.
Standards: EN54-23, AFNOR, CNBoP and AS certifications and models specific to NF and VDS approvals.
Note
Industry recognised product - LX base retrofits existing Roshni, RoLP & RoLP Maxi.
Standards
EN 54-23.
Eaton Red Flashing Sounder Beacon, 18 to 28V DC, 106dB - RoLP LX Wall Series - ROLP/R1/LX-W/RF
Looking for a safety solution that can be seen and heard? This Eaton red sounder beacon is an effective VAD (visual alarm device). When activated, the light flashes at between 0.5 and 1Hz and the alarm emits a very loud sound up to 106dB. The combination of visual and audible elements makes this device suitable for use on emergency vehicles and as part of fixed alert systems in buildings. You can install it in schools, office buildings and warehouses where constant background noise would be expected.
• Versatile option that's approved for use as a fire alarm
• IP65 (ingress protection) rating means the internal components are shielded from dust and low-pressure water sprays
• IP65 (ingress protection) rating means the internal components are shielded from dust and low-pressure water sprays
What lamp does this sounder beacon use?
This Eaton sounder beacon comes with a ready-installed LED (light-emitting diode), which is long-lasting and energy-efficient.
Can I install this sounder beacon in outdoor settings?
Yes. This item can operate at temperatures between -25°C and +75°C, so it's suitable for use in demanding indoor and outdoor environments.
Note
Eaton formerly known as Fulleon
