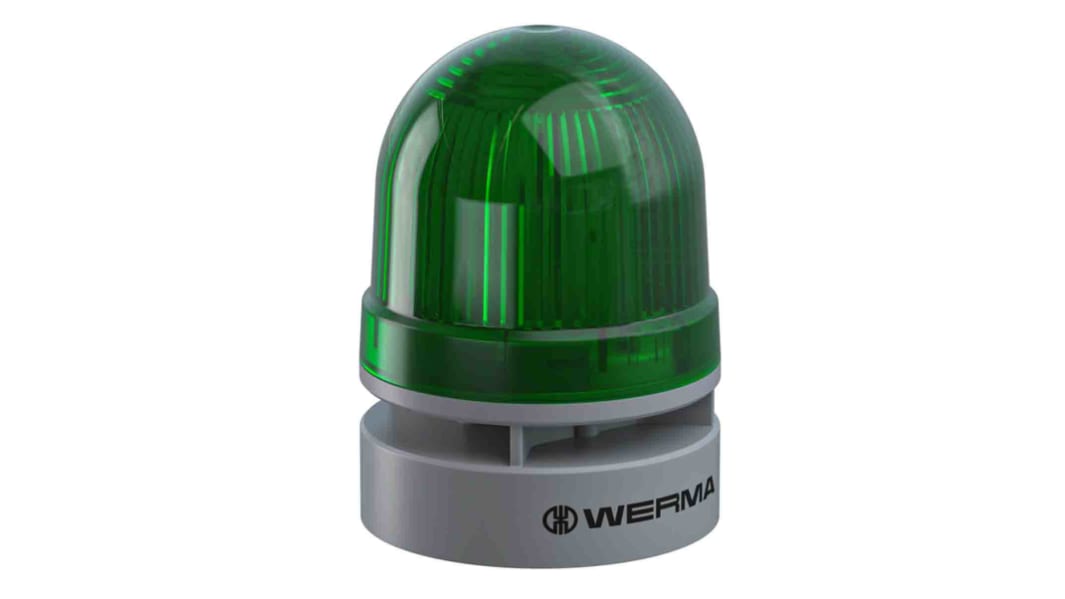

Werma EvoSIGNAL Mini Series Green Beacon-Sounder Combination, IP66 12V ac/dc Wall 95 dB @ 1m
- RS Stock No.:
- 197-4254
- Distrelec Article No.:
- 301-50-064
- Mfr. Part No.:
- 460.210.74
- Brand:
- Werma
Subtotal (1 unit)*
£103.29
(exc. VAT)
£123.95
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £103.29 |
*price indicative
- RS Stock No.:
- 197-4254
- Distrelec Article No.:
- 301-50-064
- Mfr. Part No.:
- 460.210.74
- Brand:
- Werma
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Werma | |
| Product Type | Beacon-Sounder Combination | |
| Lens Colour | Green | |
| Current Type | AC/DC | |
| Light Effect | Continuous, Blinking | |
| Current Consumption | 98mA | |
| Sounder Type | Multi-tone | |
| Mount Type | Wall | |
| Terminal Type | Push-in Terminal | |
| Series | EvoSIGNAL Mini | |
| Maximum Supply Voltage | 12V ac/dc | |
| Bulb Type | LED | |
| Housing Colour | Grey | |
| Sound Level at 1m | 95dB | |
| Minimum Operating Temperature | 30°C | |
| Maximum Operating Temperature | 60°C | |
| Maximum Sound Level | 95dB | |
| Number of Tones | 2 | |
| Hazardous Area Certification | No | |
| IP Rating | IP66 | |
| Standards/Approvals | CE, cULus | |
| Housing Material | ABS/Polycarbonate | |
| Select all | ||
|---|---|---|
Brand Werma | ||
Product Type Beacon-Sounder Combination | ||
Lens Colour Green | ||
Current Type AC/DC | ||
Light Effect Continuous, Blinking | ||
Current Consumption 98mA | ||
Sounder Type Multi-tone | ||
Mount Type Wall | ||
Terminal Type Push-in Terminal | ||
Series EvoSIGNAL Mini | ||
Maximum Supply Voltage 12V ac/dc | ||
Bulb Type LED | ||
Housing Colour Grey | ||
Sound Level at 1m 95dB | ||
Minimum Operating Temperature 30°C | ||
Maximum Operating Temperature 60°C | ||
Maximum Sound Level 95dB | ||
Number of Tones 2 | ||
Hazardous Area Certification No | ||
IP Rating IP66 | ||
Standards/Approvals CE, cULus | ||
Housing Material ABS/Polycarbonate | ||
- COO (Country of Origin):
- DE
Werma EvoSIGNAL Mini Series Beacon - Sounder Combination, IP66, Base Mount - 460.210.74
This beacon is a sounder combination designed for industrial applications. With dimensions of 85mm in height and a diameter of 62mm, it features a green lens that emits both blinking and continuous light signals. The rugged PC/ABS housing provides durability, while the IP66 rating ensures protection against dust and water ingress.
Features & Benefits
• LED light source provides long-lasting performance
• High decibel sounder delivers clear alerts at 95dB
• Compact design is suitable for limited space installations
Applications
• Used in industrial alarm systems for safety notifications
• Suitable for automation systems requiring visual and audible alerts
• Ideal for installations in environments with exposure to moisture
Can it operate in extreme temperature conditions?
Yes, it functions between -30 and +60°C.
Can this device be used with higher voltage systems?
It is designed specifically for 12V AC/DC; using higher voltages can damage the unit.
Note
Please note mounting base is not included. Please see instruction sheet for mounting bases that are suitable for this beacon.
