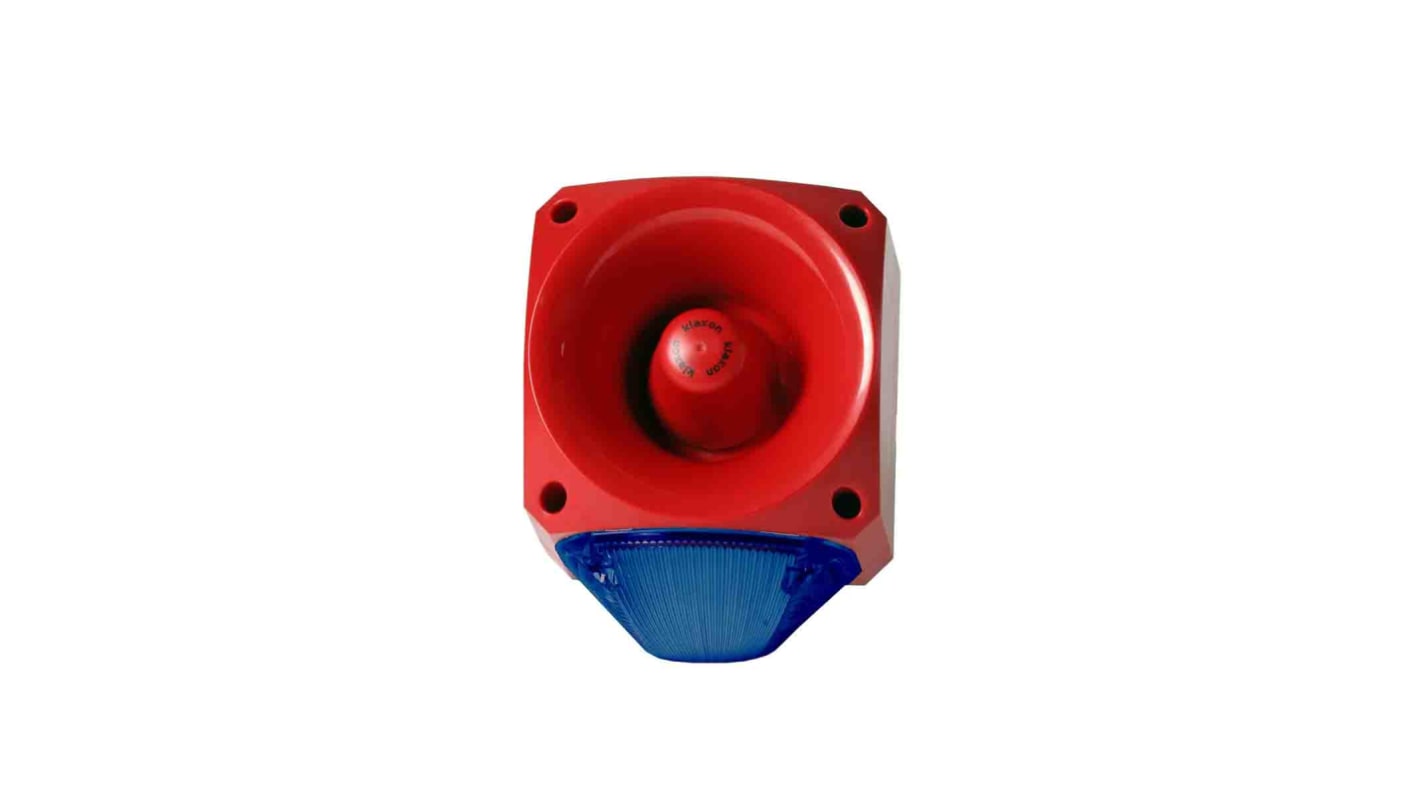

Klaxon PNC Series Blue Sounder Beacon, 10 → 60 V dc, IP66, Side Mount, 113dB at 1 Metre
- RS Stock No.:
- 146-7373
- Mfr. Part No.:
- PNC-0043
- Brand:
- Klaxon
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£7.88
(exc. VAT)
£9.46
(inc. VAT)
- RS Stock No.:
- 146-7373
- Mfr. Part No.:
- PNC-0043
- Brand:
- Klaxon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Klaxon | |
| Supply Voltage | 10 → 60 V dc | |
| Lens Colour | Blue | |
| Mounting Style | Side Mount | |
| Current Type | DC | |
| Light Effect | Flashing, Steady | |
| Sounder Type | Alarm | |
| Decibels at 1 Metre | 113dB | |
| Series | PNC | |
| Bulb Type | Xenon | |
| Housing Colour | Red | |
| Minimum Decibel | 105dB | |
| Maximum Decibel | 113dB | |
| Number Of Tones | 64 | |
| IP Rating | IP66 | |
| Housing Material | Polycarbonate | |
| Maximum Temperature | +70°C | |
| Minimum Temperature | -25°C | |
| Standards Met | EN 54-3 Type B, NF, VdS | |
| Select all | ||
|---|---|---|
Brand Klaxon | ||
Supply Voltage 10 → 60 V dc | ||
Lens Colour Blue | ||
Mounting Style Side Mount | ||
Current Type DC | ||
Light Effect Flashing, Steady | ||
Sounder Type Alarm | ||
Decibels at 1 Metre 113dB | ||
Series PNC | ||
Bulb Type Xenon | ||
Housing Colour Red | ||
Minimum Decibel 105dB | ||
Maximum Decibel 113dB | ||
Number Of Tones 64 | ||
IP Rating IP66 | ||
Housing Material Polycarbonate | ||
Maximum Temperature +70°C | ||
Minimum Temperature -25°C | ||
Standards Met EN 54-3 Type B, NF, VdS | ||
- COO (Country of Origin):
- GB
High output sounder beacons certified to EN54. Connections are made to the base during the initial wiring phase which results in faster and more reliable installation. In addition, the head is fixed by quarter turn fasteners avoiding the need to screw up four individual screws thus enabling faster installation and accurate seal compression for weatherproofing. The combination of a powerful sounder and high output beacon ensures a very effective audio-visual signal. 110dB and 120dB units, as well as AC variants, are also available.
Quarter turn fasteners for ease of installation
IP66 rated
Three alarm stages
Volume control for greater flexibility - 20dB
64 tones
Voltage 10-60V DC
IP66 rated
Three alarm stages
Volume control for greater flexibility - 20dB
64 tones
Voltage 10-60V DC
