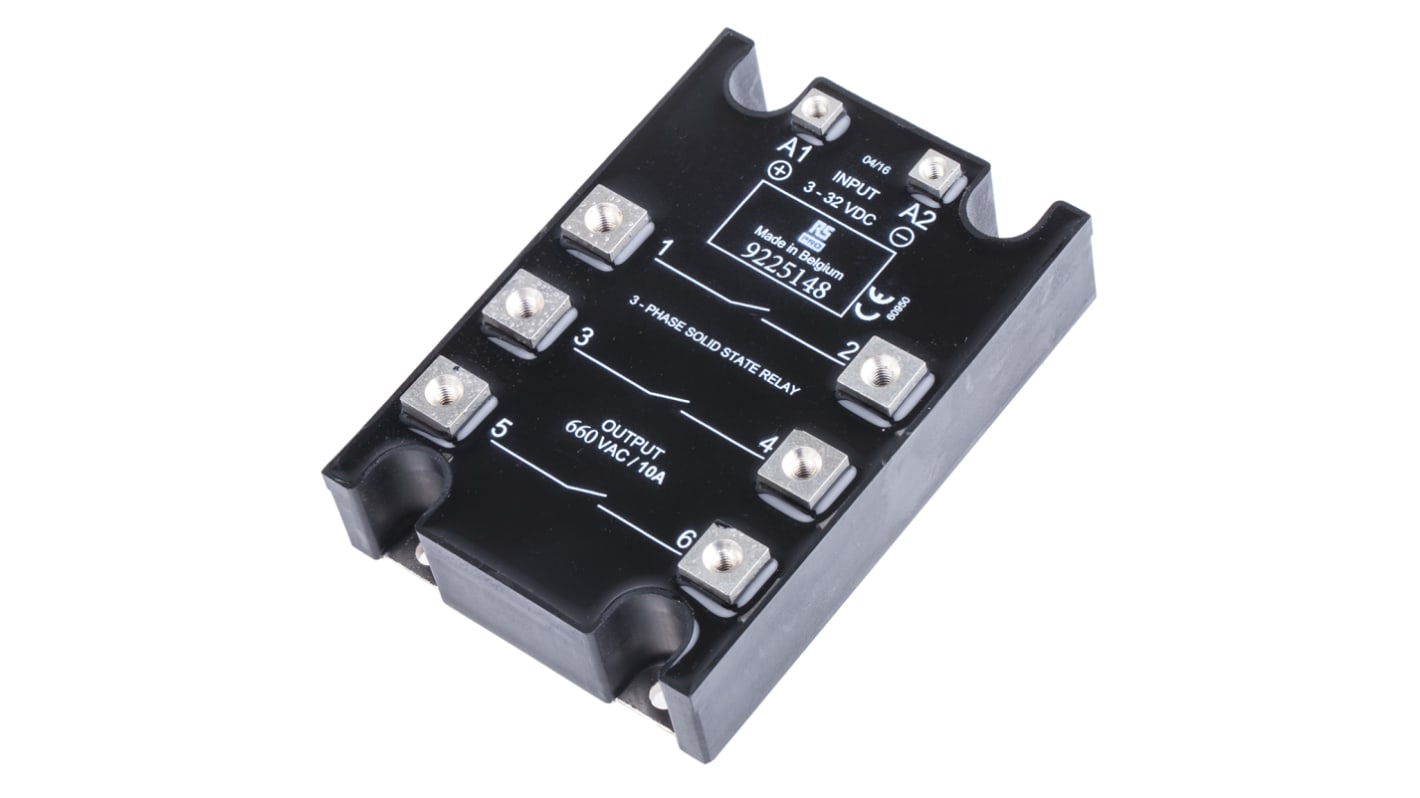

RS PRO Solid State Relay, 10 A rms Load, Panel Mount, 660 V ac Load, 32 V dc Control
- RS Stock No.:
- 922-5148
- Brand:
- RS PRO
- RS Stock No.:
- 922-5148
- Brand:
- RS PRO
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Maximum Load Current | 10 A rms | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 660 V ac | |
| Minimum Load Voltage | 48 V ac | |
| Maximum Control Voltage | 32 V dc | |
| Minimum Control Voltage | 3 V dc | |
| Switching Type | Random | |
| Control Voltage Range | 3 → 32 V dc | |
| Minimum Load Current | 0.1 A | |
| Number of Poles | 3 | |
| Terminal Type | Screw | |
| Contact Configuration | 3P-NO | |
| Output Device | Thyristor | |
| Relay Type | AC | |
| Maximum Turn On Time | 0.1ms | |
| Load Voltage Range | 48 → 660V ac | |
| Dimensions | 107 x 73.5 x 27mm | |
| Standards Met | CE | |
| Special Features | Its able to Switch Three Phase Loads with One Control Signal up to Rated Line Currents of 45A and Line Voltages up to 480Vac, Maxi Puck Housing, Panel Mounted, The WG A3 has High Noise Immunity and an Internal Overvoltage Protection which becomes Effective at 1000 V | |
| Depth | 73.5mm | |
| Height | 27mm | |
| Length | 107mm | |
| Operating Temperature Range | -20 → +80°C | |
| Off State Leakage Current | 10 mA | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Maximum Load Current 10 A rms | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 660 V ac | ||
Minimum Load Voltage 48 V ac | ||
Maximum Control Voltage 32 V dc | ||
Minimum Control Voltage 3 V dc | ||
Switching Type Random | ||
Control Voltage Range 3 → 32 V dc | ||
Minimum Load Current 0.1 A | ||
Number of Poles 3 | ||
Terminal Type Screw | ||
Contact Configuration 3P-NO | ||
Output Device Thyristor | ||
Relay Type AC | ||
Maximum Turn On Time 0.1ms | ||
Load Voltage Range 48 → 660V ac | ||
Dimensions 107 x 73.5 x 27mm | ||
Standards Met CE | ||
Special Features Its able to Switch Three Phase Loads with One Control Signal up to Rated Line Currents of 45A and Line Voltages up to 480Vac, Maxi Puck Housing, Panel Mounted, The WG A3 has High Noise Immunity and an Internal Overvoltage Protection which becomes Effective at 1000 V | ||
Depth 73.5mm | ||
Height 27mm | ||
Length 107mm | ||
Operating Temperature Range -20 → +80°C | ||
Off State Leakage Current 10 mA | ||
- COO (Country of Origin):
- BE
RS Pro WG A3 Series Three Phase SSR
Maxi puck housing
Panel mounted
AC Loads
DC Input
3-Phase
