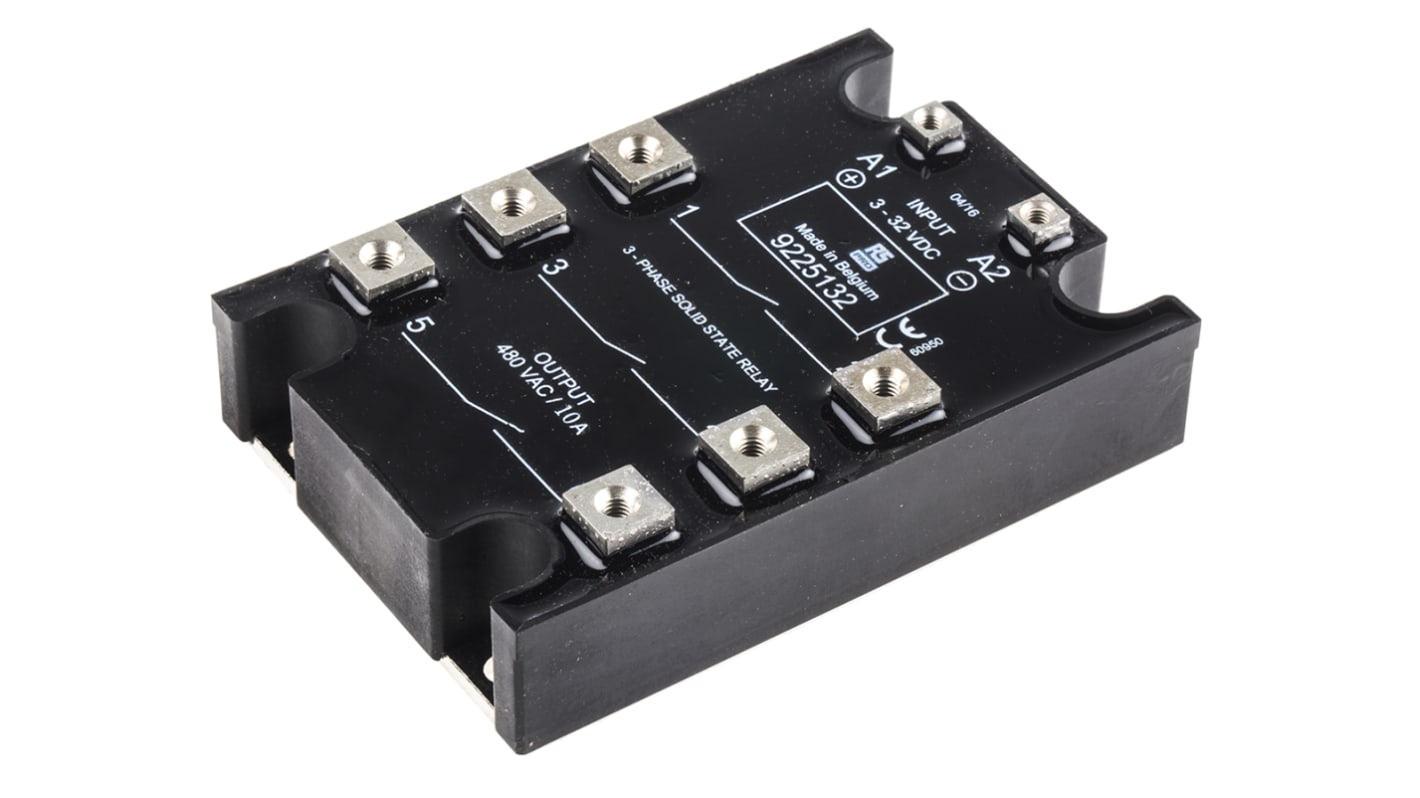

RS PRO Solid State Relay, 10 A rms Load, Panel Mount, 480 V ac Load, 32 V dc Control
- RS Stock No.:
- 922-5132
- Brand:
- RS PRO
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£99.19
(exc. VAT)
£119.03
(inc. VAT)
- RS Stock No.:
- 922-5132
- Brand:
- RS PRO
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Maximum Load Current | 10 A rms | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 480 V ac | |
| Minimum Load Voltage | 24 V ac | |
| Minimum Control Voltage | 3 V dc | |
| Maximum Control Voltage | 32 V dc | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 3 → 32 V dc | |
| Minimum Load Current | 0.1 A | |
| Number of Poles | 3 | |
| Contact Configuration | 3P-NO | |
| Terminal Type | Screw | |
| Output Device | Thyristor | |
| Relay Type | AC | |
| Load Voltage Range | 24 → 480V ac | |
| Maximum Turn On Time | 11ms | |
| Dimensions | 107 x 73.5 x 27mm | |
| Standards Met | CE | |
| Depth | 73.5mm | |
| Special Features | Its able to Switch Three Phase Loads with One Control Signal up to Rated Line Currents of 45A and Line Voltages up to 480Vac, Maxi Puck Housing, Panel Mounted, The WG A3 has High Noise Immunity and an Internal Overvoltage Protection which becomes Effective at 1000 V | |
| Height | 27mm | |
| Length | 107mm | |
| Off State Leakage Current | 10 mA | |
| Operating Temperature Range | -20 → +80°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Maximum Load Current 10 A rms | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 480 V ac | ||
Minimum Load Voltage 24 V ac | ||
Minimum Control Voltage 3 V dc | ||
Maximum Control Voltage 32 V dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 3 → 32 V dc | ||
Minimum Load Current 0.1 A | ||
Number of Poles 3 | ||
Contact Configuration 3P-NO | ||
Terminal Type Screw | ||
Output Device Thyristor | ||
Relay Type AC | ||
Load Voltage Range 24 → 480V ac | ||
Maximum Turn On Time 11ms | ||
Dimensions 107 x 73.5 x 27mm | ||
Standards Met CE | ||
Depth 73.5mm | ||
Special Features Its able to Switch Three Phase Loads with One Control Signal up to Rated Line Currents of 45A and Line Voltages up to 480Vac, Maxi Puck Housing, Panel Mounted, The WG A3 has High Noise Immunity and an Internal Overvoltage Protection which becomes Effective at 1000 V | ||
Height 27mm | ||
Length 107mm | ||
Off State Leakage Current 10 mA | ||
Operating Temperature Range -20 → +80°C | ||
- COO (Country of Origin):
- BE
RS Pro WG A3 Series Three Phase SSR
Maxi puck housing
Panel mounted
AC Loads
DC Input
3-Phase
