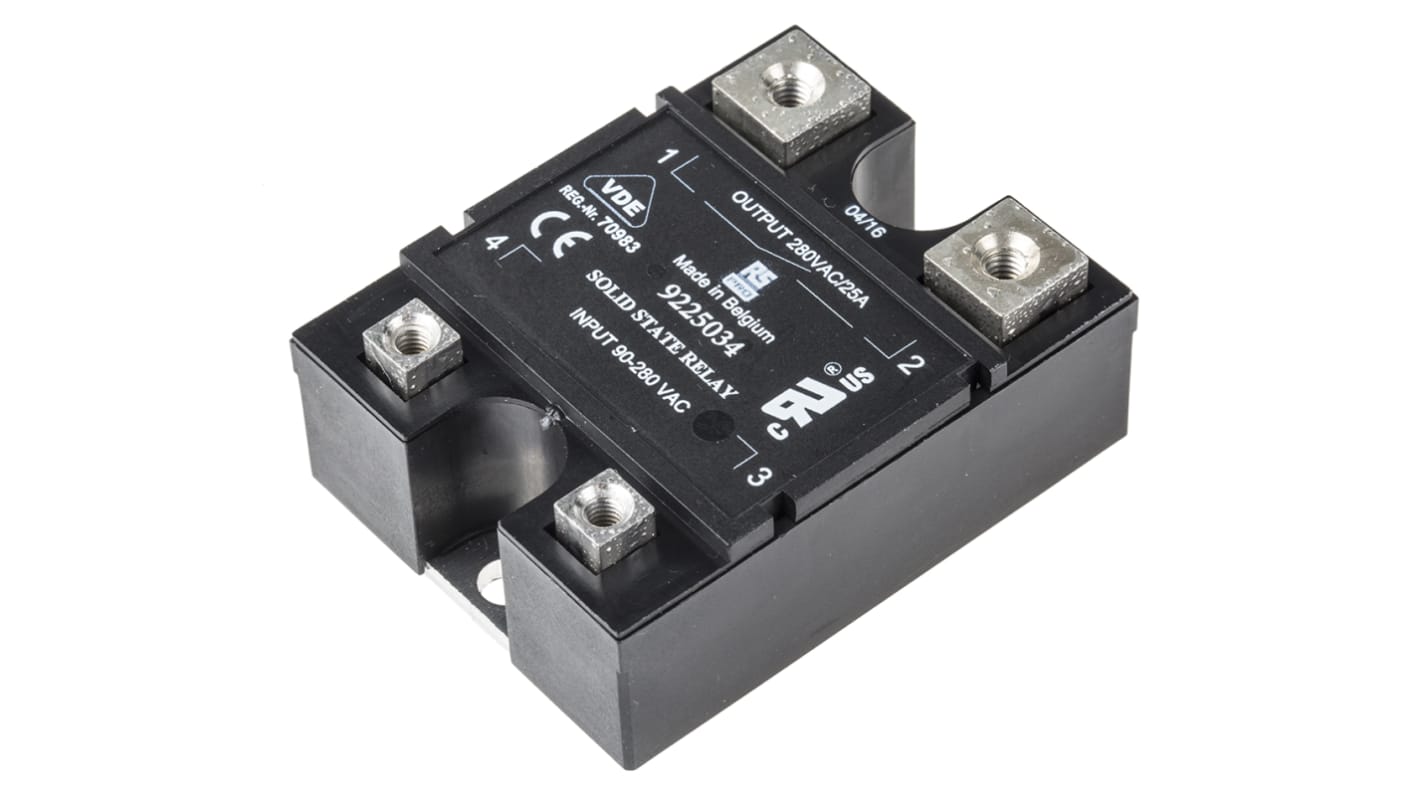

RS PRO Solid State Relay, 25 A rms Load, Panel Mount, 280 V ac Load, 280 V ac Control

View all Solid State Relays
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
922-5034
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Maximum Load Current

25 A rms

Mounting Type

Panel Mount

Maximum Load Voltage

280 V ac

Minimum Load Voltage

24 V ac

Maximum Control Voltage

280 V ac

Minimum Control Voltage

90 V ac

Switching Type

Zero Cross

Control Voltage Range

90 → 280 V ac

Minimum Load Current

0.2 A

Number of Poles

1

Terminal Type

Screw

Contact Configuration

SPST

Output Device

Thyristor

Relay Type

AC

Load Voltage Range

24 → 280V ac

Maximum Turn On Time

33 ms

Dimensions

57.2 x 44.5 x 23mm

Depth

44.5mm

Special Features

Designed to Switch Inductive Loads Like Electric Motors and Valves (R-types) as well as Resistive Loads Like Heaters and Lamps (Z-type), Hockey Puck Housing, Panel Mounted

Operating Temperature Range

-20 → +80°C

Standards Met

CE, CULus, VDE

Height

23mm

Off State Leakage Current

12 mA

Length

57.2mm

COO (Country of Origin):
BE

RS Pro WG Series AC Input Zero Cross Switching SSR


RS Pro WG series zero switching solid state relays provide the user with a compact solution without compromising on performance or reliability. Designed to switch inductive loads like electric motors and valves as well as resistive loads like heaters and lamps.

Zero cross switching
Hockey Puck Housing
Panel Mounted
AC Loads
AC Input
