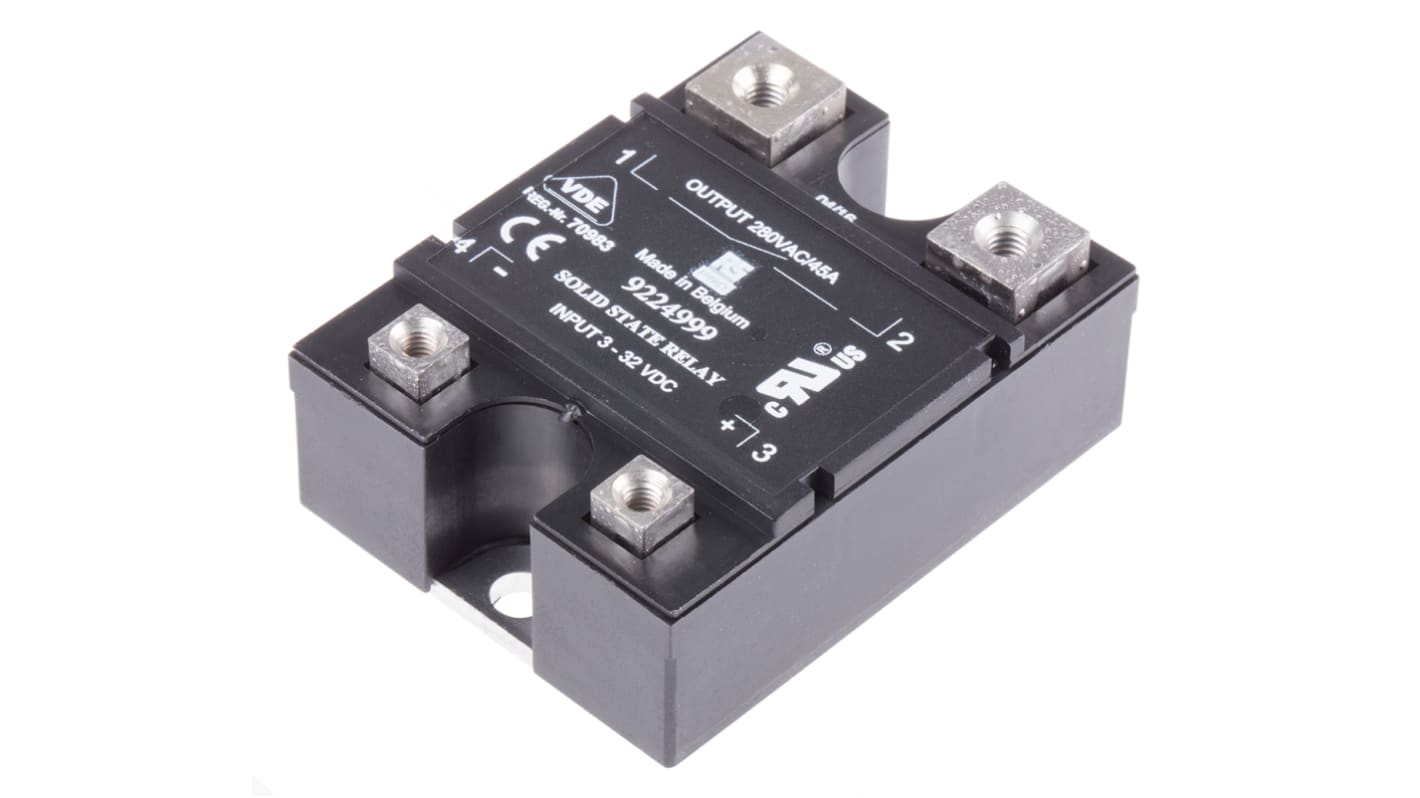

RS PRO Solid State Relay, 45 A rms Load, Panel Mount, 280 V ac Load, 32 V dc Control

View all Solid State Relays
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
RS PRO Solid State Relay, 50 Amps Load, Panel Mount, Surface Mount, 480 V rms Load, 32 Vdc Control
RS Stock No.
253-7287

Each

£68.05

(exc. VAT)

£81.66

(inc. VAT)

RS Stock No.:
922-4999
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Maximum Load Current

45 A rms

Mounting Type

Panel Mount

Maximum Load Voltage

280 V ac

Minimum Load Voltage

24 V ac

Maximum Control Voltage

32 V dc

Minimum Control Voltage

3 V dc

Switching Type

Zero Cross

Control Voltage Range

3 → 32 V dc

Minimum Load Current

0.4 A

Number of Poles

1

Terminal Type

Screw

Contact Configuration

SPST

Output Device

Thyristor

Relay Type

AC

Load Voltage Range

24 → 280V ac

Maximum Turn On Time

11ms

Dimensions

57.2 x 44.5 x 23mm

Standards Met

CE, CULus, VDE

Depth

44.5mm

Special Features

Designed to Switch Inductive Loads Like Electric Motors and Valves (R-types) as well as Resistive Loads Like Heaters and Lamps (Z-type), Hockey Puck Housing, Panel Mounted

Length

57.2mm

Operating Temperature Range

-20 → +80°C

Height

23mm

Off State Leakage Current

12 mA

COO (Country of Origin):
BE

RS PRO 45 A RMS SPNO Solid State Relay, Zero Cross, Panel Mount, Thyristor, 280 V AC Maximum Load


Need to open and close contacts in circuits? Try this solid-state relay from RS PRO. It's designed to ensure that the circuits in your appliances and instruments operate effectively. It's a good choice for use in tight spaces thanks to its compact design.


Your circuits and contacts will be protected against any external damage by the robust housing. This makes the item suitable for use in both commercial and domestic applications. It meets the requirements of the Restriction of Hazardous Substances (RoHS) directive, so it contains only minimal amounts of any harmful materials.

Features and Benefits



  • SPNO (single pole normally open) contact configuration

  • Control voltage range of 3 to 32 V DC

  • Dimensions of 57.2 (length) x 44.5 (depth) x 23 mm (height)

  • Load voltage range of 24 to 280 V AC

  • Maximum load current of 45 A RMS (root mean square)

  • Maximum turn-on time of 11 ms

  • Minimum load current of 0.4 A

  • Panel mounting

  • One pole

  • Off-state leakage current of 12 mA

  • Operating temperature range of -20°C to +80°C

  • Thyristor output device

  • AC relay type

  • Special features include switching inductive loads like electric motors and valves (R-types) as well as resistive loads like heaters and lamps (Z-type), hockey puck housing

  • CE (European Conformity), cULus (Underwriters Laboratories standards of Canada and US) and VDE (Association for Electrical, Electronic & Information Technologies) standards met

  • Zero cross switching type

  • Screw terminal type
