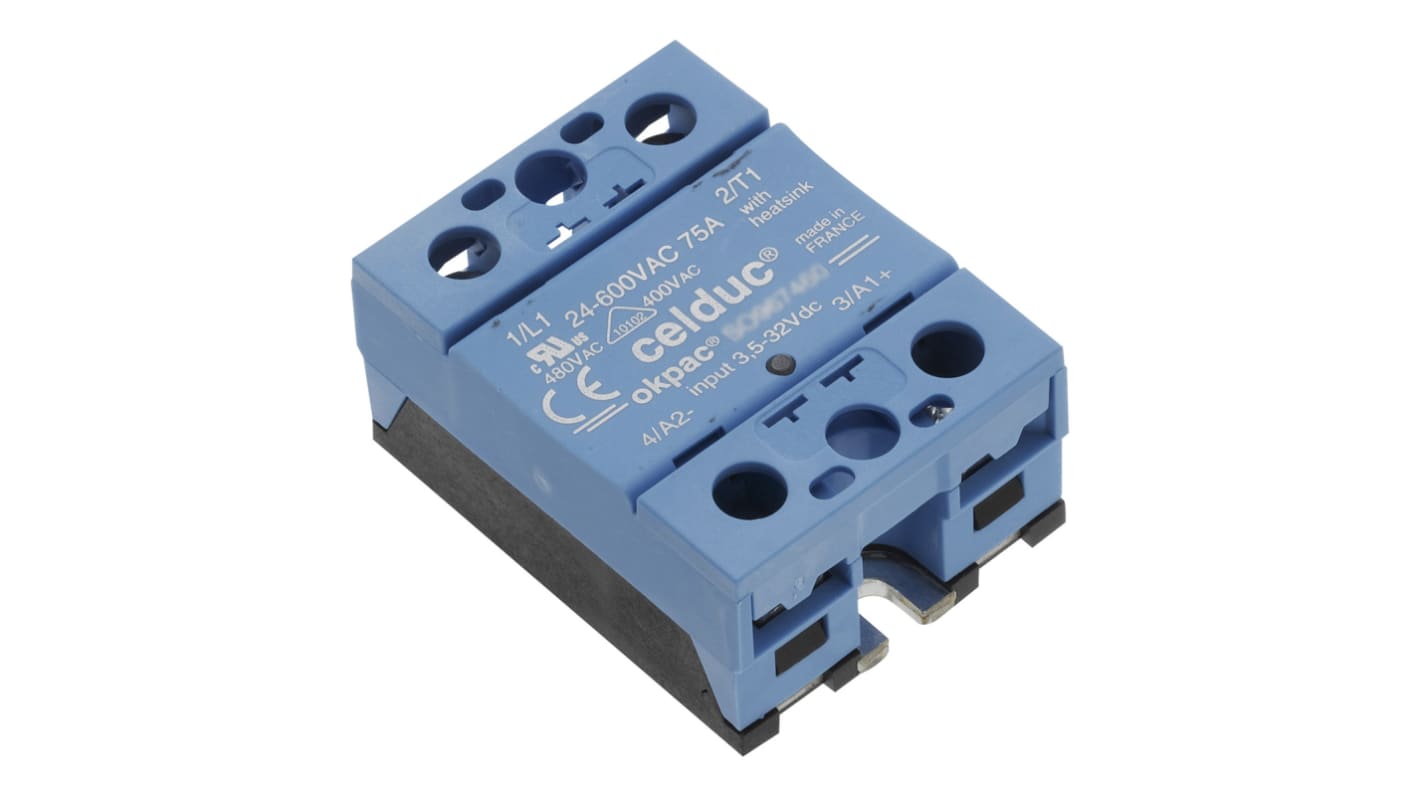

Celduc SO8 Series Solid State Relay, 95 A Load, Panel Mount, 690 V ac Load, 32 V dc Control
- RS Stock No.:
- 917-4804
- Mfr. Part No.:
- SO888060
- Brand:
- Celduc
Stock information currently inaccessible
- RS Stock No.:
- 917-4804
- Mfr. Part No.:
- SO888060
- Brand:
- Celduc
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Celduc | |
| Maximum Load Current | 95 A | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 690 V ac | |
| Minimum Load Voltage | 24 V ac | |
| Maximum Control Voltage | 32 V dc | |
| Minimum Control Voltage | 3.5 V dc | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 3.5 → 32 V dc | |
| Range | SO8 | |
| Number of Poles | 1 | |
| Terminal Type | Screw | |
| Output Device | Thyristor | |
| Relay Type | AC | |
| Maximum Turn On Time | 10ms | |
| Series | SO8 | |
| Load Voltage Range | 24 → 690V ac | |
| Dimensions | 44.5 x 58.2 x 27mm | |
| Minimum Operating Temperature | -40°C | |
| Depth | 58.2mm | |
| Maximum Operating Temperature | +100°C | |
| Standards Met | CE | |
| Length | 44.5mm | |
| Height | 27mm | |
| Special Features | Zero Cross with Low Zero-Crossing Level, IP20 Protection, Control Status LED, IP20 Protection | |
| Operating Temperature Range | -40 → +100°C | |
| Select all | ||
|---|---|---|
Brand Celduc | ||
Maximum Load Current 95 A | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 690 V ac | ||
Minimum Load Voltage 24 V ac | ||
Maximum Control Voltage 32 V dc | ||
Minimum Control Voltage 3.5 V dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 3.5 → 32 V dc | ||
Range SO8 | ||
Number of Poles 1 | ||
Terminal Type Screw | ||
Output Device Thyristor | ||
Relay Type AC | ||
Maximum Turn On Time 10ms | ||
Series SO8 | ||
Load Voltage Range 24 → 690V ac | ||
Dimensions 44.5 x 58.2 x 27mm | ||
Minimum Operating Temperature -40°C | ||
Depth 58.2mm | ||
Maximum Operating Temperature +100°C | ||
Standards Met CE | ||
Length 44.5mm | ||
Height 27mm | ||
Special Features Zero Cross with Low Zero-Crossing Level, IP20 Protection, Control Status LED, IP20 Protection | ||
Operating Temperature Range -40 → +100°C | ||
- COO (Country of Origin):
- FR
