Infineon PVT322 Series Solid State Relay, 0.17 A Load, Surface Mount, 250 V Load
- RS Stock No.:
- 913-4723
- Mfr. Part No.:
- PVT322SPBF
- Brand:
- Infineon
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 913-4723
- Mfr. Part No.:
- PVT322SPBF
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Load Current | 0.17 A | |
| Mounting Type | Surface Mount | |
| Maximum Load Voltage | 250 V | |
| Minimum Load Voltage | 0 V | |
| Switching Type | AC/DC | |
| Number of Poles | 2 | |
| Contact Configuration | DP-NO | |
| Terminal Type | PCB Pin | |
| Output Device | MOSFET | |
| Package Style | SMT | |
| Relay Type | Photovoltaic | |
| Maximum Turn On Time | 3ms | |
| Series | PVT322 | |
| Load Voltage Range | 0 → 250V | |

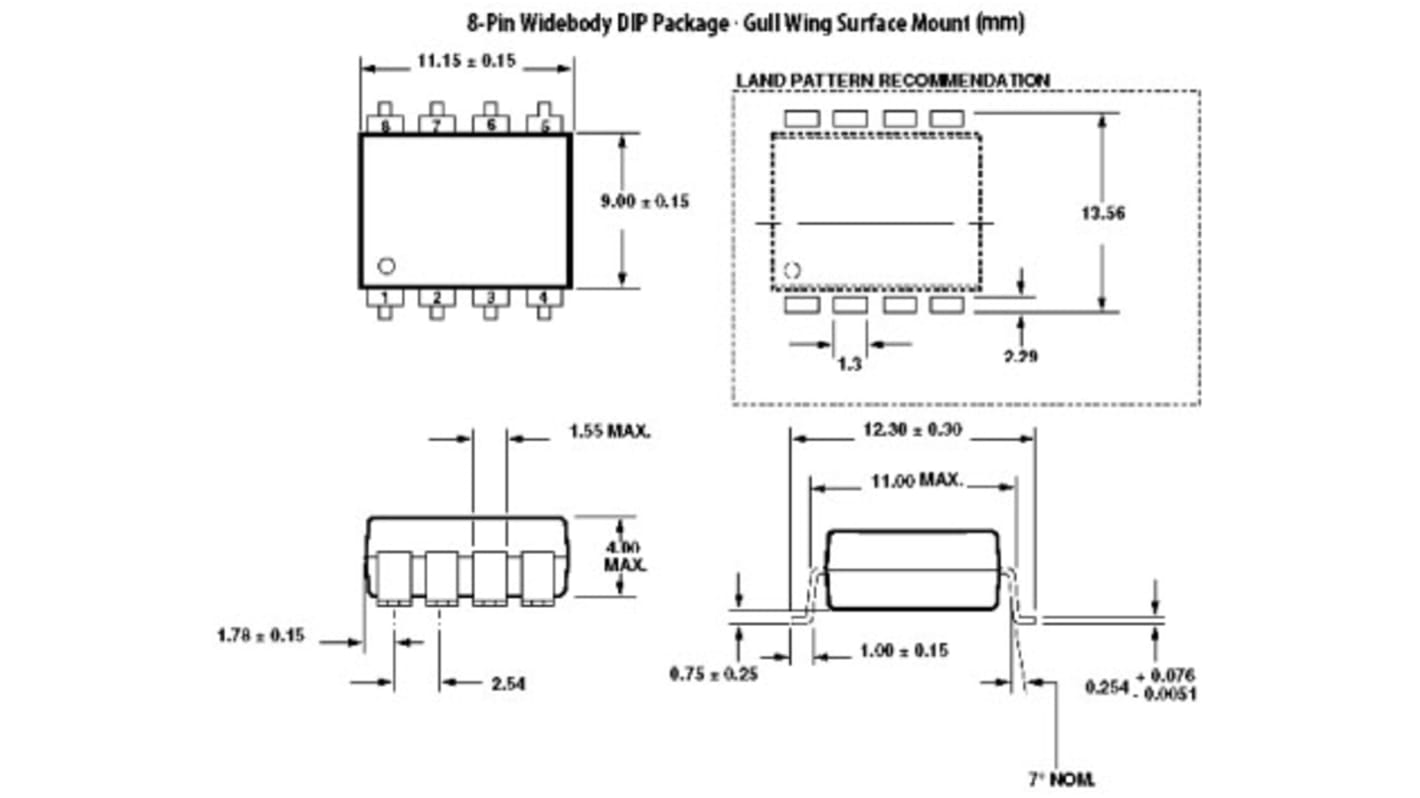

| Dimensions | 9.39 x 6.47 x 3.42mm | |
| Capacitance | 50pF | |
| Maximum Operating Temperature | +85°C | |
| Depth | 6.5mm | |
| Special Features | Bounce-Free Operation, Solid-State Reliability | |
| Minimum Operating Temperature | -40°C | |
| Operating Temperature Range | -40 → +85°C | |
| Length | 9.4mm | |
| Height | 3.4mm | |
| Off State Leakage Current | 1 μA | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Load Current 0.17 A | ||
Mounting Type Surface Mount | ||
Maximum Load Voltage 250 V | ||
Minimum Load Voltage 0 V | ||
Switching Type AC/DC | ||
Number of Poles 2 | ||
Contact Configuration DP-NO | ||
Terminal Type PCB Pin | ||
Output Device MOSFET | ||
Package Style SMT | ||
Relay Type Photovoltaic | ||
Maximum Turn On Time 3ms | ||
Series PVT322 | ||
Load Voltage Range 0 → 250V | ||
Dimensions 9.39 x 6.47 x 3.42mm | ||
Capacitance 50pF | ||
Maximum Operating Temperature +85°C | ||
Depth 6.5mm | ||
Special Features Bounce-Free Operation, Solid-State Reliability | ||
Minimum Operating Temperature -40°C | ||
Operating Temperature Range -40 → +85°C | ||
Length 9.4mm | ||
Height 3.4mm | ||
Off State Leakage Current 1 μA | ||
- COO (Country of Origin):
- MX
Transistor Output - FET & MOSFET, Infineon
The PDV13 series from Infineon is a single pole, normally open, solid-state replacement for electromechanical relays used for general purpose switching of analogue signals. It utilises Infineon HEXFET power MOSFET as the output switch, driven by an integrated circuit photovoltaic generator of novel construction.
Bounce-Free Operation
1010 Off-State Resistance
1,000 V/μsec dv/dt
5 mA Input Sensitivity
4,000 VRMS I/O Isolation
Solid-State Reliability
1010 Off-State Resistance
1,000 V/μsec dv/dt
5 mA Input Sensitivity
4,000 VRMS I/O Isolation
Solid-State Reliability
Optocouplers, International Rectifier
