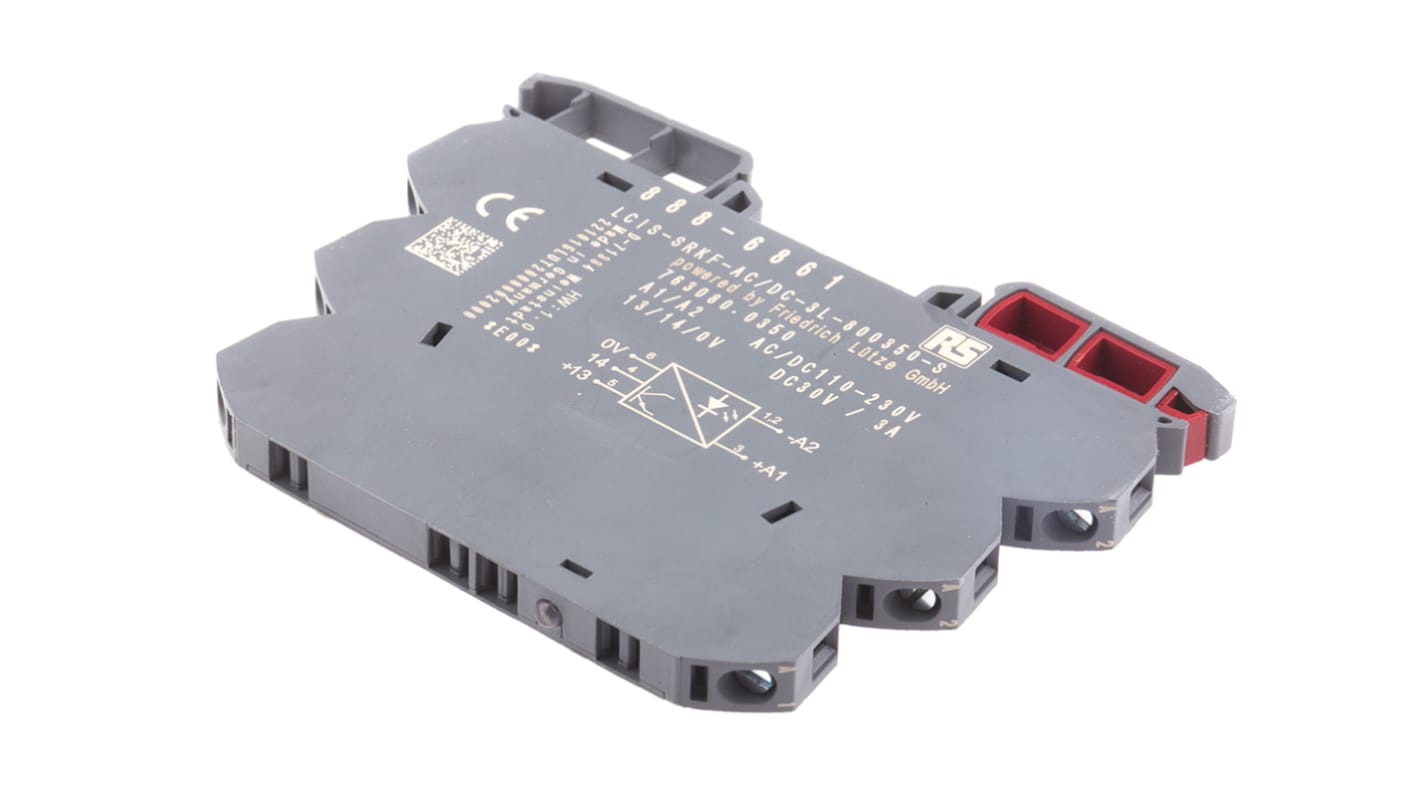

RS PRO Solid State Relay, 3 A Load, DIN Rail Mount, 30 V Load, 230 V Control
- RS Stock No.:
- 888-6861
- Brand:
- RS PRO
Subtotal (1 pack of 5 units)*
£46.61
(exc. VAT)
£55.93
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £9.322 | £46.61 |
*price indicative
- RS Stock No.:
- 888-6861
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Maximum Load Current | 3 A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 30 V | |
| Minimum Load Voltage | 10 V | |
| Maximum Control Voltage | 230 V | |
| Minimum Control Voltage | 110 V | |
| Switching Type | DC | |
| Control Voltage Range | 110 → 230 V | |
| Minimum Load Current | 1 mA | |
| Contact Configuration | SPST | |
| Terminal Type | Screw | |
| Output Device | MOSFET | |
| Load Voltage Range | 10 → 30V | |
| Dimensions | 6.2 x 73 x 93mm | |
| Operating Temperature Range | -25 → +60°C | |
| Depth | 73mm | |
| Length | 6.2mm | |
| Off State Leakage Current | <100 μA | |
| Standards Met | CSA, GL, UL | |
| Special Features | Green LED Indicator, Varistor | |
| Height | 93mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Maximum Load Current 3 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 30 V | ||
Minimum Load Voltage 10 V | ||
Maximum Control Voltage 230 V | ||
Minimum Control Voltage 110 V | ||
Switching Type DC | ||
Control Voltage Range 110 → 230 V | ||
Minimum Load Current 1 mA | ||
Contact Configuration SPST | ||
Terminal Type Screw | ||
Output Device MOSFET | ||
Load Voltage Range 10 → 30V | ||
Dimensions 6.2 x 73 x 93mm | ||
Operating Temperature Range -25 → +60°C | ||
Depth 73mm | ||
Length 6.2mm | ||
Off State Leakage Current <100 μA | ||
Standards Met CSA, GL, UL | ||
Special Features Green LED Indicator, Varistor | ||
Height 93mm | ||
- COO (Country of Origin):
- DE
MosFet Technology Interface Relay Modules
Interface Solid State Relays – Covering a wide range of applications offering extremely accurate processing, especially for coupling signals and for switching loads of up to 250 V/16 A at temperatures ranging from _40 to +75. A compact width of 6.2mm which is excellent for narrow applications. Also available with spring loaded connections for areas with strong vibration.
High switching frequencies
Low control power
Wear and bounce free switching
Vibration and impact resistant
Long service life
Operating Temp -25 °C to -60 °C
Dimensions – 6.2 x 93 x 73 mm
LED Indicator
Low control power
Wear and bounce free switching
Vibration and impact resistant
Long service life
Operating Temp -25 °C to -60 °C
Dimensions – 6.2 x 93 x 73 mm
LED Indicator
Approvals
UL, CSA, GL
