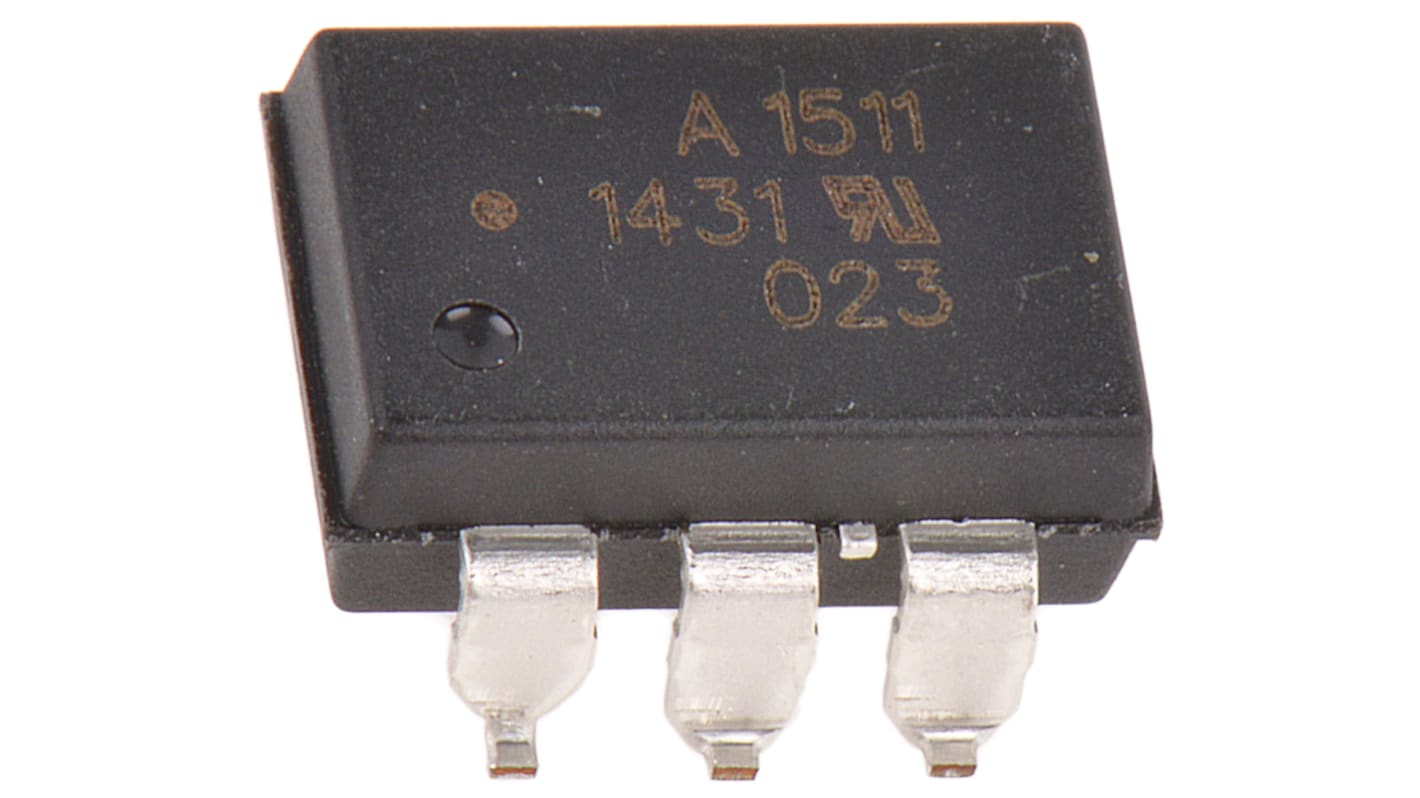

Broadcom ASSR-15XX Series Solid State Relay, 1 A Load, Surface Mount, 60 V Load, 0.8 V Control
- RS Stock No.:
- 839-9923P
- Mfr. Part No.:
- ASSR-1511-301E
- Brand:
- Broadcom
Subtotal 2 units (supplied in a tube)*
£8.24
(exc. VAT)
£9.88
(inc. VAT)
FREE delivery for orders over £50.00
- Plus 800 unit(s) shipping from 06 October 2025
Units | Per unit |
|---|---|
| 2 + | £4.12 |
*price indicative
- RS Stock No.:
- 839-9923P
- Mfr. Part No.:
- ASSR-1511-301E
- Brand:
- Broadcom
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Maximum Load Current | 1 A | |
| Mounting Type | Surface Mount | |
| Maximum Load Voltage | 60 V | |
| Minimum Load Voltage | -60 V | |
| Maximum Control Voltage | 0.8 V | |
| Minimum Control Voltage | 0 V | |
| Switching Type | AC/DC | |
| Control Voltage Range | 0 → 0.8 V | |
| Number of Poles | 1 | |
| Terminal Type | 6 Pin | |
| Contact Configuration | SPST | |
| Output Device | MOSFET | |
| Package Style | DIP | |
| Relay Type | PhotoMOSFET | |
| Series | ASSR-15XX | |
| Load Voltage Range | -60 → +60V | |
| Maximum Turn On Time | 2ms | |
| Dimensions | 9.65 x 6.35 x 4.19mm | |
| Special Features | Compact Solid-State Bi-directional Signal Switch | |
| Operating Temperature Range | -40 → +85°C | |
| Off State Leakage Current | 1 μA | |
| Length | 9.7mm | |
| Minimum Operating Temperature | -40°C | |
| Depth | 6.4mm | |
| Standards Met | RoHS Compliant | |
| Capacitance | 0.5pF | |
| Maximum Operating Temperature | +85°C | |
| Height | 4.2mm | |
