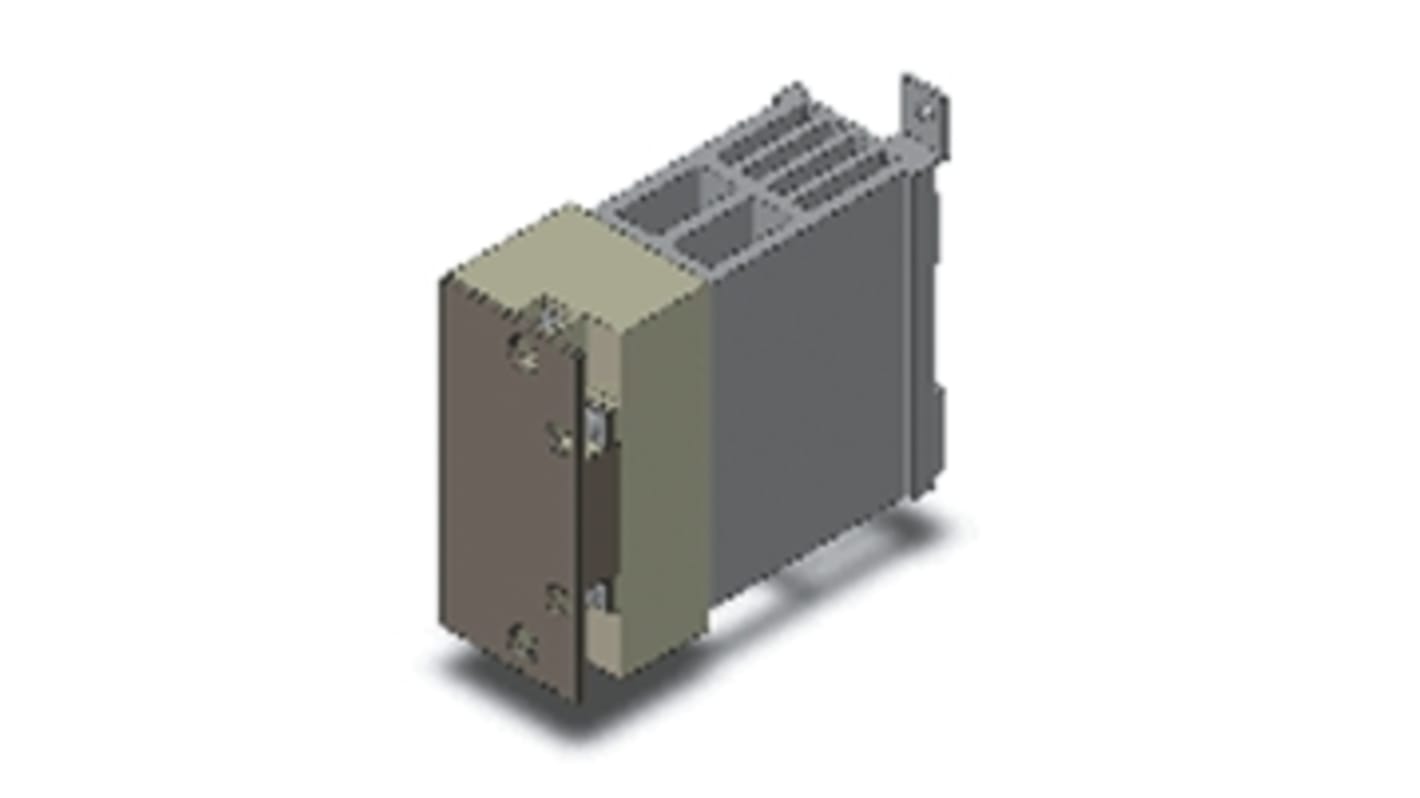

Omron Solid State Relay, 20 A Load, DIN Rail Mount, 528 V ac Load, 30 V dc Control
- RS Stock No.:
- 828-6849
- Mfr. Part No.:
- G3PA-420B-VD2 DC12-24
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£104.84
(exc. VAT)
£125.81
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 - 4 | £104.84 |
| 5 - 9 | £101.66 |
| 10 + | £97.31 |
*price indicative
- RS Stock No.:
- 828-6849
- Mfr. Part No.:
- G3PA-420B-VD2 DC12-24
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Maximum Load Current | 20 A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 528 V ac | |
| Minimum Load Voltage | 180 V ac | |
| Minimum Control Voltage | 9.6 V dc | |
| Maximum Control Voltage | 30 V dc | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 9.6 → 30 V dc | |
| Minimum Load Current | 0.5 A | |
| Terminal Type | Screw | |
| Contact Configuration | SPST | |
| Output Device | Phototriac Coupler | |
| Load Voltage Range | 180 → 528V ac | |
| Maximum Turn On Time | 1/2 cycle | |
| Dimensions | 37 x 100 x 100mm | |
| Depth | 100mm | |
| Height | 100mm | |
| Operating Temperature Range | -30 → +80°C | |
| Length | 37mm | |
| Off State Leakage Current | 20 mA | |
Select all | ||
|---|---|---|
Brand Omron | ||
Maximum Load Current 20 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 528 V ac | ||
Minimum Load Voltage 180 V ac | ||
Minimum Control Voltage 9.6 V dc | ||
Maximum Control Voltage 30 V dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 9.6 → 30 V dc | ||
Minimum Load Current 0.5 A | ||
Terminal Type Screw | ||
Contact Configuration SPST | ||
Output Device Phototriac Coupler | ||
Load Voltage Range 180 → 528V ac | ||
Maximum Turn On Time 1/2 cycle | ||
Dimensions 37 x 100 x 100mm | ||
Depth 100mm | ||
Height 100mm | ||
Operating Temperature Range -30 → +80°C | ||
Length 37mm | ||
Off State Leakage Current 20 mA | ||
- COO (Country of Origin):
- JP
DIN Rail Mount SSR's
Replaceable SSR power cartridge
DIN rail or surface mounting options
Finger protected terminals
LED input status indicator
Thermal overload indicator changes colour permanently to indicate possibility of a damaged power cartridge
Inputs may be ’commoned’ via integral linking terminals
Release Voltage 1 Vdc (Min)
Operating Temperature Range -30 to +80°C
DIN rail or surface mounting options
Finger protected terminals
LED input status indicator
Thermal overload indicator changes colour permanently to indicate possibility of a damaged power cartridge
Inputs may be ’commoned’ via integral linking terminals
Release Voltage 1 Vdc (Min)
Operating Temperature Range -30 to +80°C
Approvals
UL; CSA; VDE
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
