Omron G3NE Series Solid State Relay, 20 (With Heatsink) A, 5 (Without Heatsink) A Load, Panel Mount, 264 V ac Load,
- RS Stock No.:
- 828-6842
- Mfr. Part No.:
- G3NE-220T-US DC24
- Brand:
- Omron
9 In stock - FREE next working day delivery available
Added
Price Each
£31.33
(exc. VAT)
£37.60
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £31.33 |
| 5 - 9 | £30.40 |
| 10 + | £29.08 |
- RS Stock No.:
- 828-6842
- Mfr. Part No.:
- G3NE-220T-US DC24
- Brand:
- Omron
Technical Reference
Legislation and Compliance
Product Details
G3NE Series
The G3NE Series of Omron Compact Solid State Relays, 5 to 20A
Wide array of features:-
Dedicated, high grade compact aluminium PCB and power elements.
Built-in varistor effectively absorbs external surges.
Built-in varistor effectively absorbs external surges.

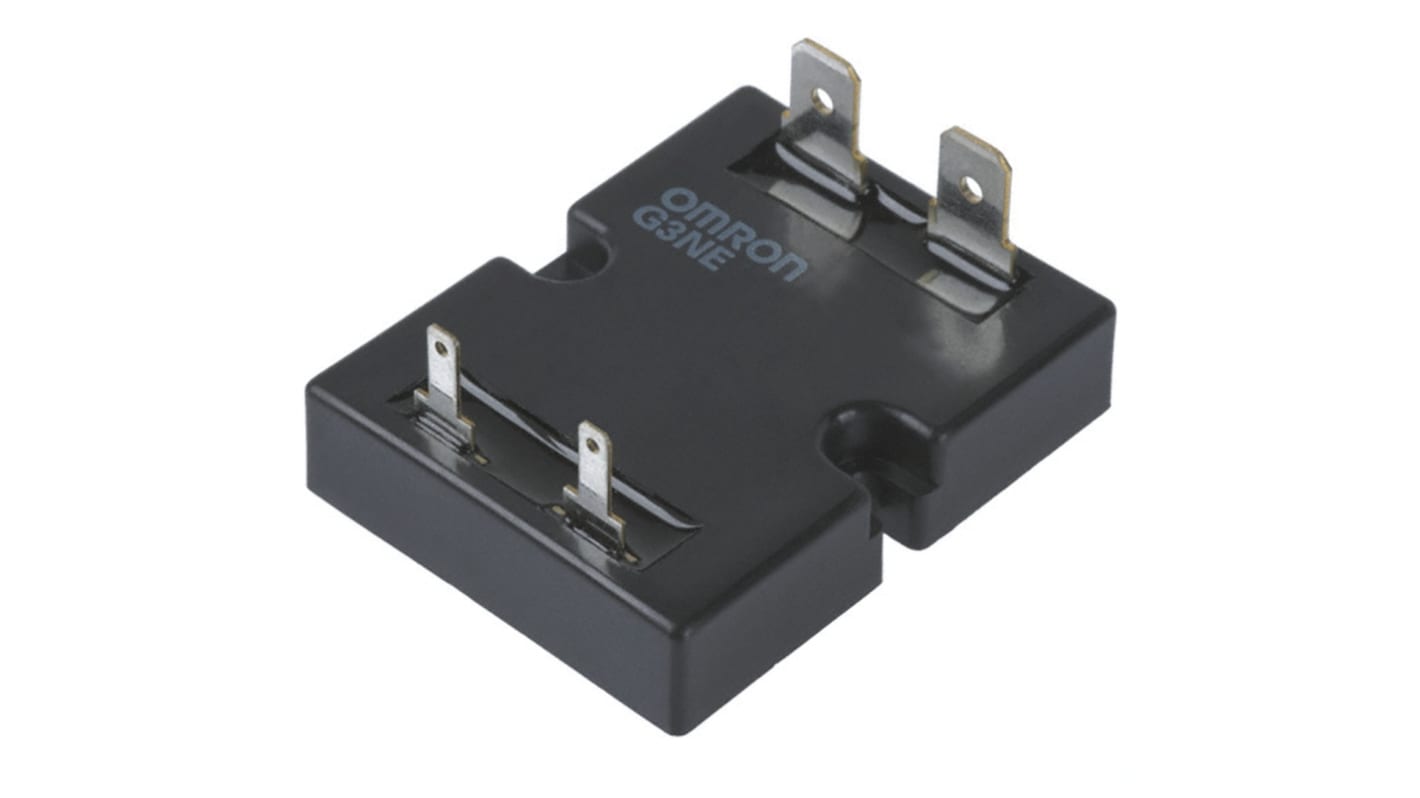

G3NE-220T-US DC24 SSR – Solid State Relay.
Compact low cost series of switching solid state relays with a wide range of load voltages 75 to 264 V ac. Aluminium PCB and power elements. Built-in varistor absorbing external surges. Quick connect 110 input terminals, 250 output connections.
Features and Benefits of G3NE-220T-US DC24 Compact SSR – Solid State Relay.
• Phototriac
• Zero cross function
• No indicator.
• Rated output load 20 A at 100 to 240 V ac.
• Rated input voltage 24 V dc. (dependant on the ambient temperature).
• Zero cross function
• No indicator.
• Rated output load 20 A at 100 to 240 V ac.
• Rated input voltage 24 V dc. (dependant on the ambient temperature).
SSR – Solid state relay Input Rating at 25°C Ambient.
• Operating voltage 19.2 to 28.8 V dc.
• Must operate voltage 19.2 V dc max.
• Must release voltage 1 V dc min.
• Input impedance with Zero cross function 1.6 kΩ ±20%
• Must operate voltage 19.2 V dc max.
• Must release voltage 1 V dc min.
• Input impedance with Zero cross function 1.6 kΩ ±20%
SSR – Solid state relay Output.
• Rated load voltage 100 to 240 V ac.
• Load voltage range 75 to 264 V ac.
• Load current with heat sink 0.1 to 20 A at 40°C. (when using a dedicated heat sink or radiation plate).
• Load current without heat sink 0.1 to 5 A at 40°C.
• Inrush current 220 A (60 Hz, 1 cycle).
• Load voltage range 75 to 264 V ac.
• Load current with heat sink 0.1 to 20 A at 40°C. (when using a dedicated heat sink or radiation plate).
• Load current without heat sink 0.1 to 5 A at 40°C.
• Inrush current 220 A (60 Hz, 1 cycle).
(relay load current is dependent on the ambient temperature)
Additional Features G3NE-220T-US DC24 Compact SSR – Solid State Relay.
• Operate and release time of load power source cycle + 1 ms max.
• Output ON voltage drop 1.6 V (RMS) max.
• Leakage current 2 mA max at 100 V ac, 5 mA max at 200 V ac.
• Vibration resistance – destruction 10 to 55 to 10 Hz, 0.75 mm single amplitude.
• Shock resistance – destruction 1000 m/s².
• Operating temperature -30°C to 80°C.
• SSR – Solid state relay Weight 37 g.
• Output ON voltage drop 1.6 V (RMS) max.
• Leakage current 2 mA max at 100 V ac, 5 mA max at 200 V ac.
• Vibration resistance – destruction 10 to 55 to 10 Hz, 0.75 mm single amplitude.
• Shock resistance – destruction 1000 m/s².
• Operating temperature -30°C to 80°C.
• SSR – Solid state relay Weight 37 g.
Mounting Plate for the G3NE Series SSR – Solid State Relay.
• Part number R99-12, Stock number 8278478. One-touch mounting plate.
What does Zero Cross Function mean in SSR in Solid State Relays?
Zero cross function will allow the relay to turn ON when the AC load power supply approaches 0 V suppressing any noise generated with a sudden load current increase. Zero cross function is effective across 2 types of noise, noise on power lines and noise emitted into open space.
Standards
UL 508, TUV, VDE, EN 60950.
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 20 (With Heatsink) A, 5 (Without Heatsink) A |
| Mounting Type | Panel Mount |
| Maximum Load Voltage | 264 V ac |
| Minimum Load Voltage | 75 V ac |
| Minimum Control Voltage | 19.2 V dc |
| Maximum Control Voltage | 28.8 V dc |
| Switching Type | Zero Cross |
| Control Voltage Range | 19.2 → 28.8 V dc |
| Minimum Load Current | 0.1 A |
| Contact Configuration | SPST |
| Terminal Type | Quick Connect |
| Output Device | Phototriac |
| Load Voltage Range | 75 → 264V ac |
| Series | G3NE |
| Maximum Turn On Time | 1/2 cycle |
| Dimensions | 47.5 x 37.5 x 11.5mm |
| Operating Temperature Range | -30 → +80°C |
| Depth | 37.5mm |
| Maximum Operating Temperature | +80°C |
| Off State Leakage Current | 5 mA |
| Length | 47.5mm |
| Height | 11.5mm |
- RS Stock No.:
- 828-6842
- Mfr. Part No.:
- G3NE-220T-US DC24
- Brand:
- Omron
