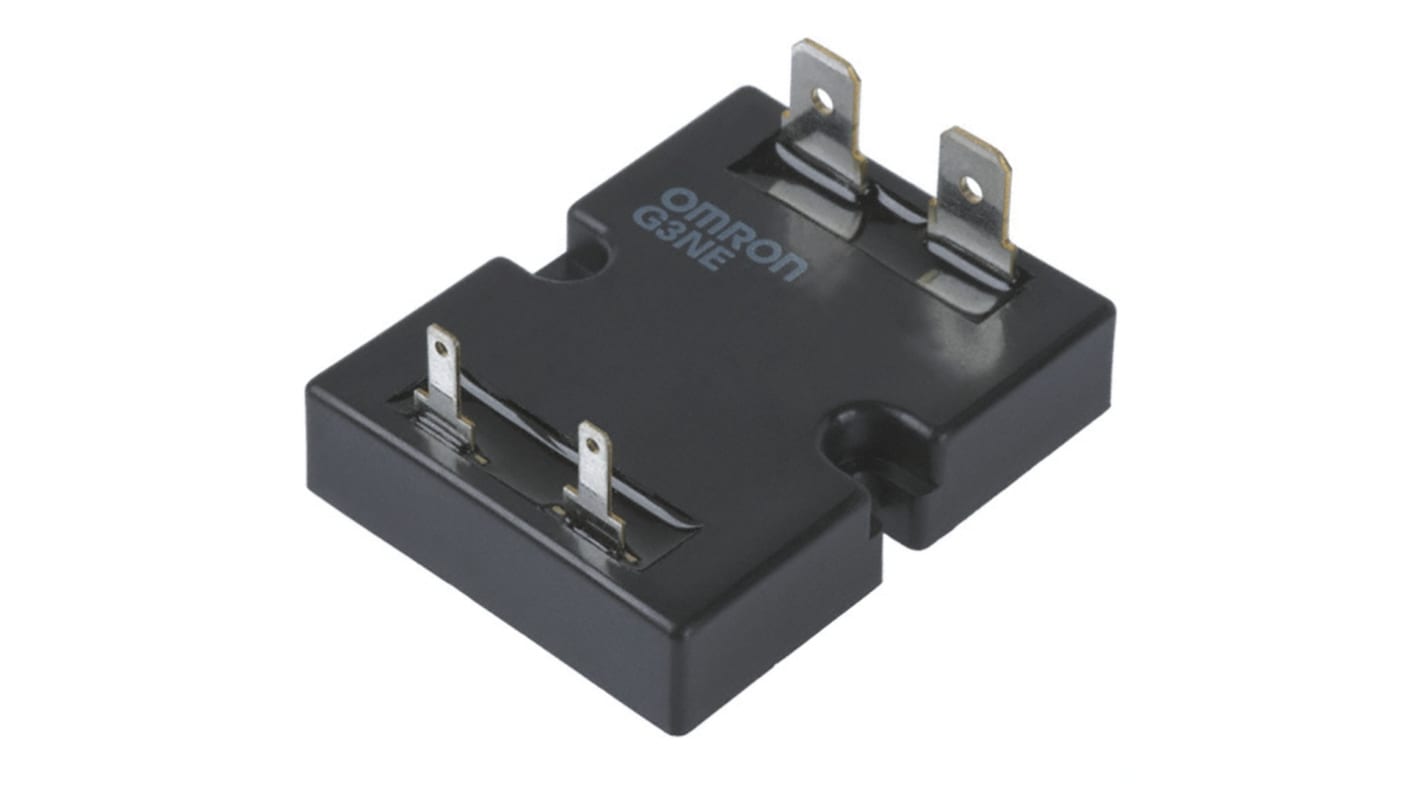

Omron Solid State Relay, 10 (With Heatsink) A, 5 (Without Heatsink) A Load, Panel Mount, 264 V ac Load, 14.4 V dc
- RS Stock No.:
- 828-6823
- Mfr. Part No.:
- G3NE-210T-US-DC12
- Brand:
- Omron
Stock information currently inaccessible
- RS Stock No.:
- 828-6823
- Mfr. Part No.:
- G3NE-210T-US-DC12
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Maximum Load Current | 10 (With Heatsink) A, 5 (Without Heatsink) A | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 264 V ac | |
| Minimum Load Voltage | 75 V ac | |
| Minimum Control Voltage | 9.6 V dc | |
| Maximum Control Voltage | 14.4 V dc | |
| Switching Type | Zero Crossing | |
| Control Voltage Range | 9.6 → 14.4 V dc | |
| Minimum Load Current | 0.1 A | |
| Contact Configuration | SPST | |
| Terminal Type | Quick Connect | |
| Output Device | Phototriac | |
| Load Voltage Range | 75 → 264V ac | |
| Maximum Turn On Time | 1 (+1/2 cycle) ms | |
| Dimensions | 47.5 x 37.5 x 11.5mm | |
| Operating Temperature Range | -30 → +80°C | |
| Length | 47.5mm | |
| Off State Leakage Current | 5 mA | |
| Height | 11.5mm | |
| Depth | 37.5mm | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Maximum Load Current 10 (With Heatsink) A, 5 (Without Heatsink) A | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 264 V ac | ||
Minimum Load Voltage 75 V ac | ||
Minimum Control Voltage 9.6 V dc | ||
Maximum Control Voltage 14.4 V dc | ||
Switching Type Zero Crossing | ||
Control Voltage Range 9.6 → 14.4 V dc | ||
Minimum Load Current 0.1 A | ||
Contact Configuration SPST | ||
Terminal Type Quick Connect | ||
Output Device Phototriac | ||
Load Voltage Range 75 → 264V ac | ||
Maximum Turn On Time 1 (+1/2 cycle) ms | ||
Dimensions 47.5 x 37.5 x 11.5mm | ||
Operating Temperature Range -30 → +80°C | ||
Length 47.5mm | ||
Off State Leakage Current 5 mA | ||
Height 11.5mm | ||
Depth 37.5mm | ||
