Finder 77 Series Solid State Relay, 15 A Load, DIN Rail Mount, 305 V ac Load, 24 V dc Control
- RS Stock No.:
- 800-2742
- Distrelec Article No.:
- 301-47-208
- Mfr. Part No.:
- 77.11.9.024.8250
- Brand:
- Finder
Bulk discount available
Subtotal (1 unit)*
£61.93
(exc. VAT)
£74.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 35 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £61.93 |
5 - 9 | £60.03 |
10 + | £57.46 |
*price indicative
- RS Stock No.:
- 800-2742
- Distrelec Article No.:
- 301-47-208
- Mfr. Part No.:
- 77.11.9.024.8250
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Maximum Load Current | 15 A | |
Mounting Type | DIN Rail | |
Maximum Load Voltage | 305 V ac | |
Minimum Load Voltage | 19 V ac | |
Maximum Control Voltage | 24 V dc | |
Switching Type | Zero Cross | |
Control Voltage Range | 4 → 32 V dc | |
Minimum Load Current | 100 mA | |
Terminal Type | Screw | |
Contact Configuration | SPST | |
Package Style | Hockey Puck | |
Maximum Turn On Time | 10ms | |
Series | 77 | |
Load Voltage Range | 19 → 305V ac | |
Dimensions | 22.5 x 120.3 x 83.3mm | |
Length | 22.5mm | |
Off State Leakage Current | 1 mA | |
Height | 83.3mm | |
Depth | 120.3mm | |
Operating Temperature Range | -20 → +80°C | |
Select all | ||
---|---|---|
Brand Finder | ||
Maximum Load Current 15 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 305 V ac | ||
Minimum Load Voltage 19 V ac | ||
Maximum Control Voltage 24 V dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 4 → 32 V dc | ||
Minimum Load Current 100 mA | ||
Terminal Type Screw | ||
Contact Configuration SPST | ||
Package Style Hockey Puck | ||
Maximum Turn On Time 10ms | ||
Series 77 | ||
Load Voltage Range 19 → 305V ac | ||
Dimensions 22.5 x 120.3 x 83.3mm | ||
Length 22.5mm | ||
Off State Leakage Current 1 mA | ||
Height 83.3mm | ||
Depth 120.3mm | ||
Operating Temperature Range -20 → +80°C | ||
- COO (Country of Origin):
- IT

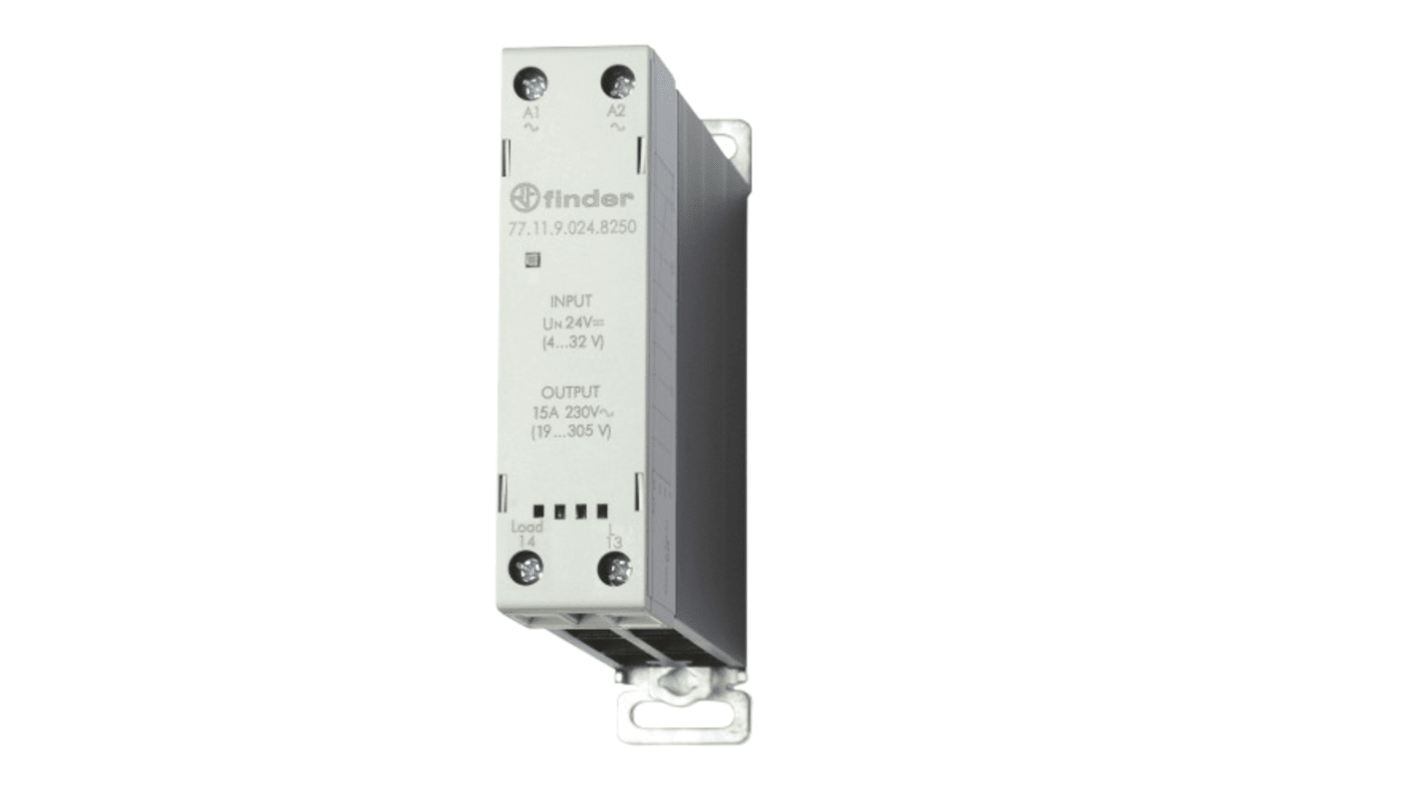

Finder Series 77 Solid State Relay, 15A Maximum Load Current, 305V AC Maximum Load Voltage - 77.11.9.024.8250
This solid state relay is designed for high-performance control in industrial applications. It operates within a voltage range of 19 to 305V AC and supports a maximum load current of 15A. Compactly designed, it measures 22.5 x 120.3 x 83.3mm, allowing for efficient DIN rail mounting. This device is particularly suited for resistive loads and delivers high-speed switching capabilities.
Features & Benefits
• Features a zero cross switching mechanism for reduced electromagnetic interference
• Offers silent operation without contact bounce or arcing
• Supports a wide control voltage range of 4 to 32V DC
• Built with screw terminals for secure and robust connections
• Compact hockey puck style enhances usability in tight spaces
• Designed to withstand operating temperatures from -20°C to +80°C
• Offers silent operation without contact bounce or arcing
• Supports a wide control voltage range of 4 to 32V DC
• Built with screw terminals for secure and robust connections
• Compact hockey puck style enhances usability in tight spaces
• Designed to withstand operating temperatures from -20°C to +80°C
Applications
• Ideal for controlling electric heating systems
• Utilised in automation and industrial machinery
• Suitable for requiring rapid switching
• Commonly employed in environments with high inrush currents
• Utilised in automation and industrial machinery
• Suitable for requiring rapid switching
• Commonly employed in environments with high inrush currents
What maximum current rating does this device support?
This device supports a maximum load current of 15A, making it suitable for various industrial applications without the risk of overheating.
What are the thermal limits for operating this relay?
The relay is built to function effectively within temperatures ranging from -20°C to +80°C, ensuring reliable operation under various conditions.
Can this relay be used for controlling AC loads?
Yes, it efficiently switches AC loads within the voltage range of 19 to 305V, making it versatile for different applications.
How does the zero cross switching feature benefit system performance?
Zero cross switching minimises electrical noise and prolongs the lifespan of the relay by reducing stress on the electrical components during operation.
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
