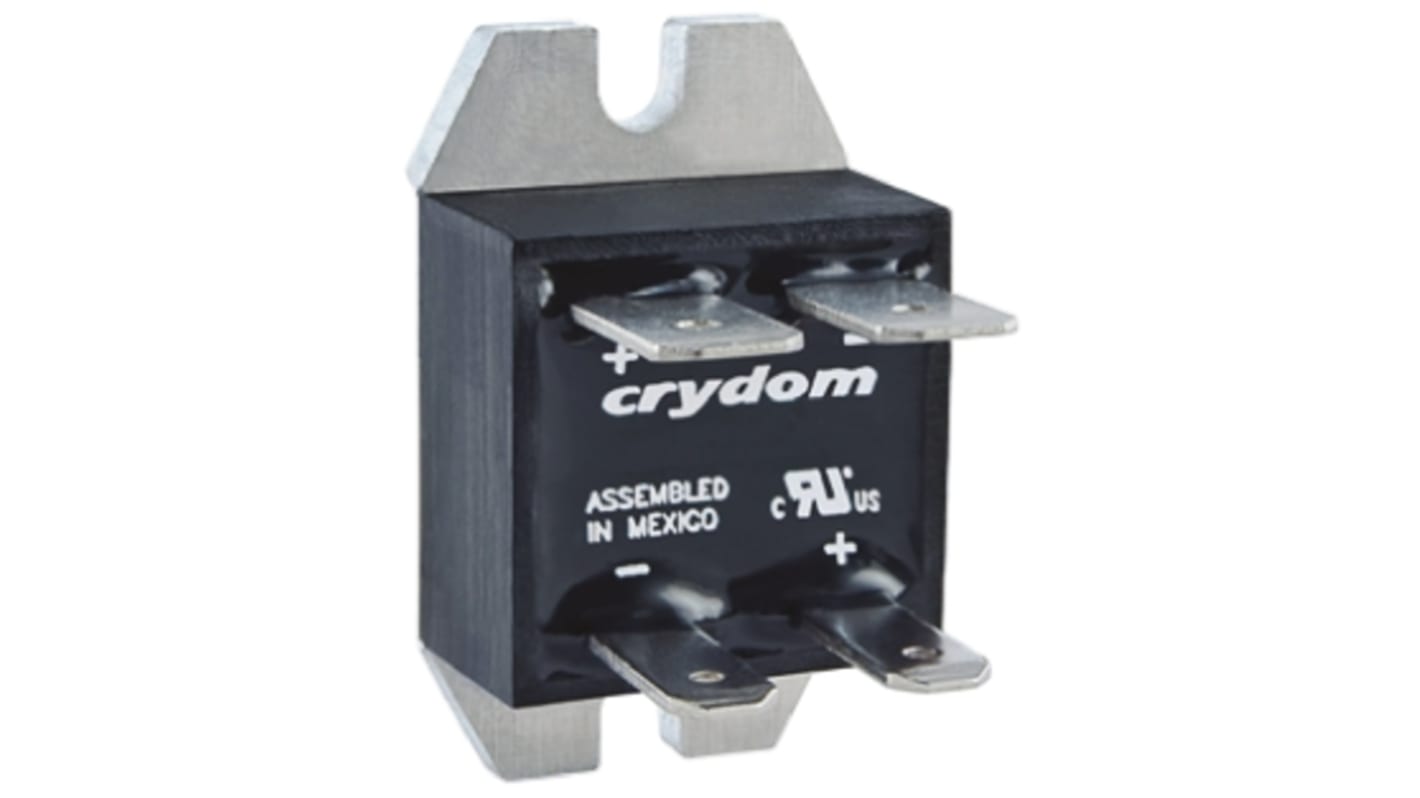

Sensata / Crydom Solid State Relay, 5 A Load, Panel Mount, 100 V dc Load, 27 V dc Control
- RS Stock No.:
- 740-6632
- Mfr. Part No.:
- EL100D5-24
- Brand:
- Sensata / Crydom
30 In stock - FREE next working day delivery available
Added
Price Each
£35.78
(exc. VAT)
£42.94
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £35.78 |
| 5 - 9 | £33.99 |
| 10 - 24 | £32.20 |
| 25 - 49 | £30.41 |
| 50 + | £28.62 |
- RS Stock No.:
- 740-6632
- Mfr. Part No.:
- EL100D5-24
- Brand:
- Sensata / Crydom
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
Panel Mounting - EL Series
The EL Series from Crydom offers a panel mounting solid state relay within a compact package capable of handling 5A and 10A loads within a 3 → 100 Vdc load voltage band. This particular solid state relay package design is suitable for a large variety of applications employing a spade terminal type and an operating temperature of -30 → +80 °C.
Ratings of 5A and 10A at 3 → 100 Vdc
UL Recognised, CE and RoHS compliant
5, 12 and 24 Vdc control voltages
Mosfet output
Spade terminal type
Panel mounting
Operating temperature: -30 → +80 °C
UL Recognised, CE and RoHS compliant
5, 12 and 24 Vdc control voltages
Mosfet output
Spade terminal type
Panel mounting
Operating temperature: -30 → +80 °C
Approvals
UL Recognised, CE and RoHS Compliant
DC Switching
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 5 A |
| Mounting Type | Panel Mount |
| Maximum Load Voltage | 100 V dc |
| Minimum Load Voltage | 3 V dc |
| Minimum Control Voltage | 21 V dc |
| Maximum Control Voltage | 27 V dc |
| Switching Type | DC |
| Control Voltage Range | 21 → 27 V dc |
| Minimum Load Current | 150 mA |
| Terminal Type | Quick Connect |
| Contact Configuration | SPST |
| Output Device | MOSFET |
| Load Voltage Range | 3 → 100V dc |
| Maximum Turn On Time | 1ms |
| Dimensions | 35.6 x 21.1 x 14.3mm |
| Height | 14.3mm |
| Minimum Operating Temperature | -30°C |
| Depth | 21.1mm |
| Length | 35.6mm |
| Off State Leakage Current | 100 μA dc |
| Operating Temperature Range | -30 → +80°C |
| Maximum Operating Temperature | +80°C |
- RS Stock No.:
- 740-6632
- Mfr. Part No.:
- EL100D5-24
- Brand:
- Sensata / Crydom
